Place of Origin: Hebei, China
Brand Name: KDIK/OEM/ODM
Type:TC/TG
OEM: 33142AD300
Material: nitrile rubber (NBR)/FKM
Dimension
Inner diameter: 58mm
Outer diameter : 90mm
Height 1: 10mm
Suitable for:automotive applications like engines and transmissions, as well as industrial machinery such as gearboxes, pumps, and electric motors.
Additional Details
Feature: Factory/Manufacturer direct sale
TYpe: MC TC TB SB SC TA TG TCN TCV COMBI CASSETTE
MOQ: 100pcs
Sample: Freely supplied
Product Data Sheet
Product Description:

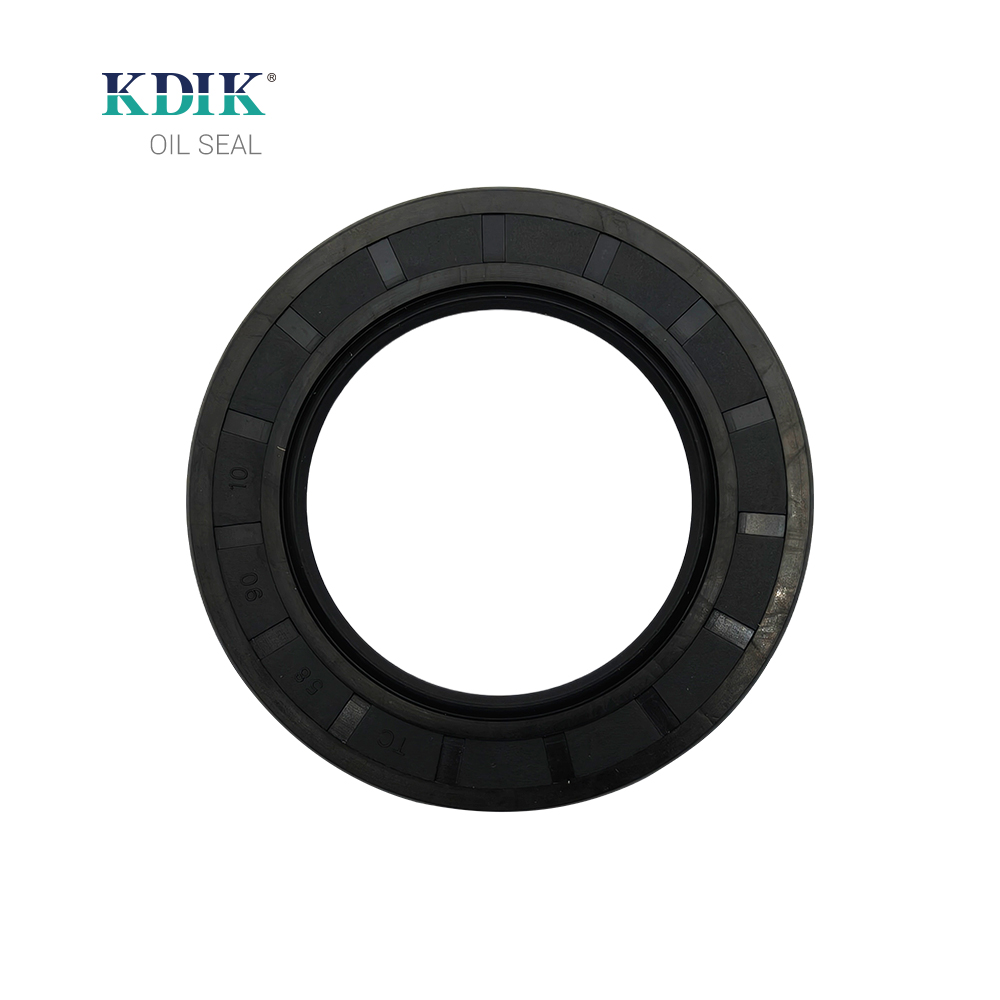

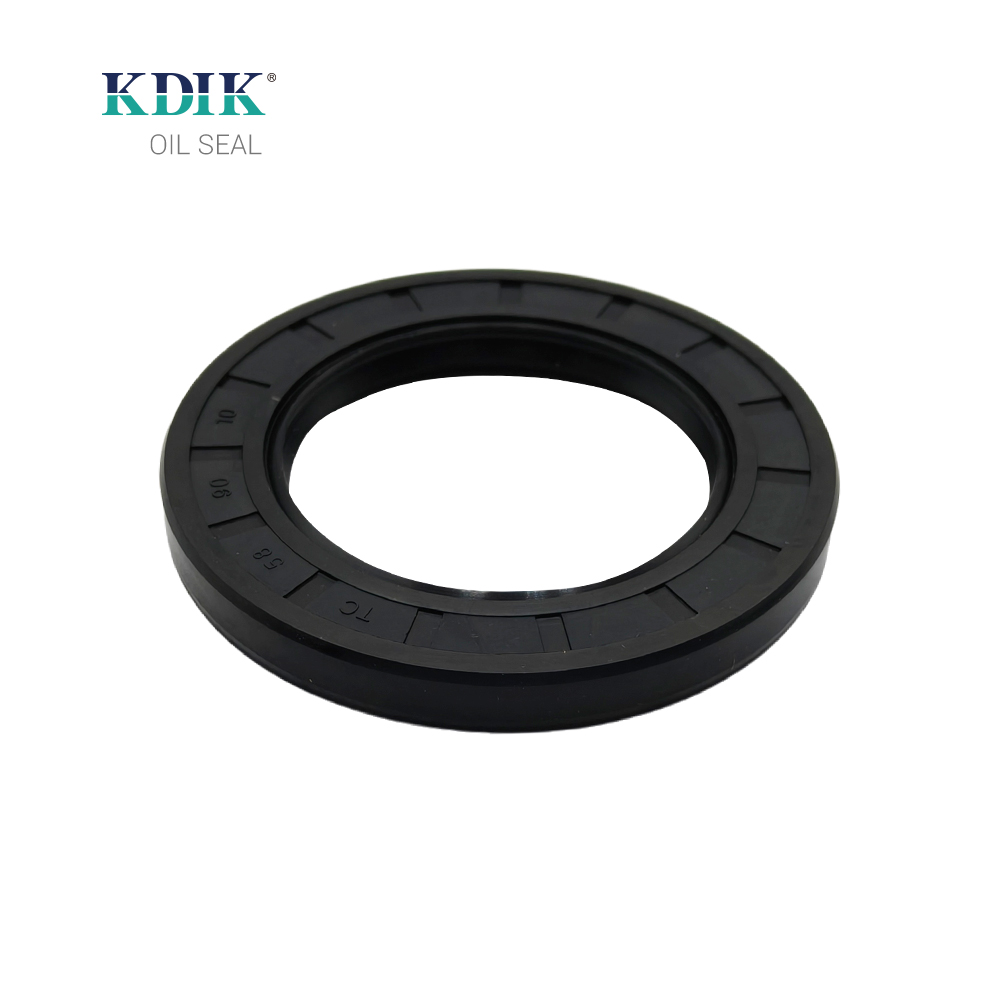

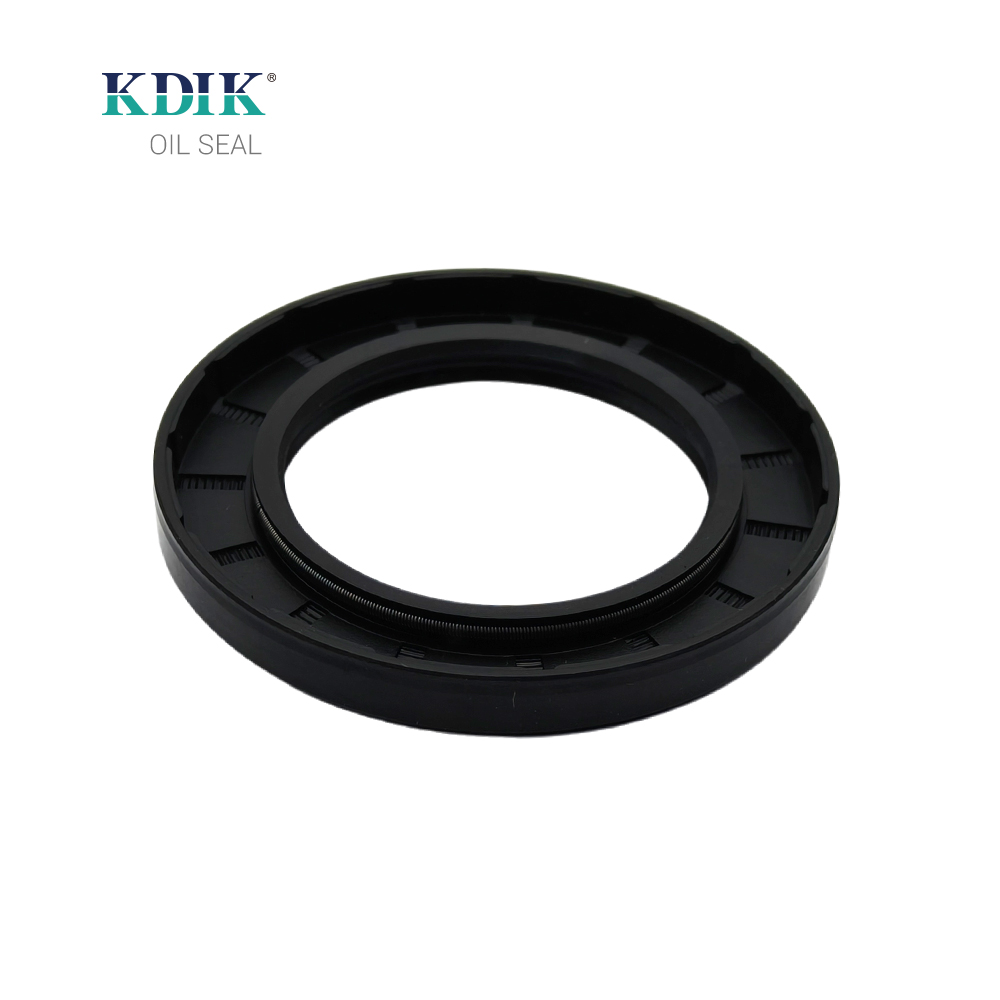

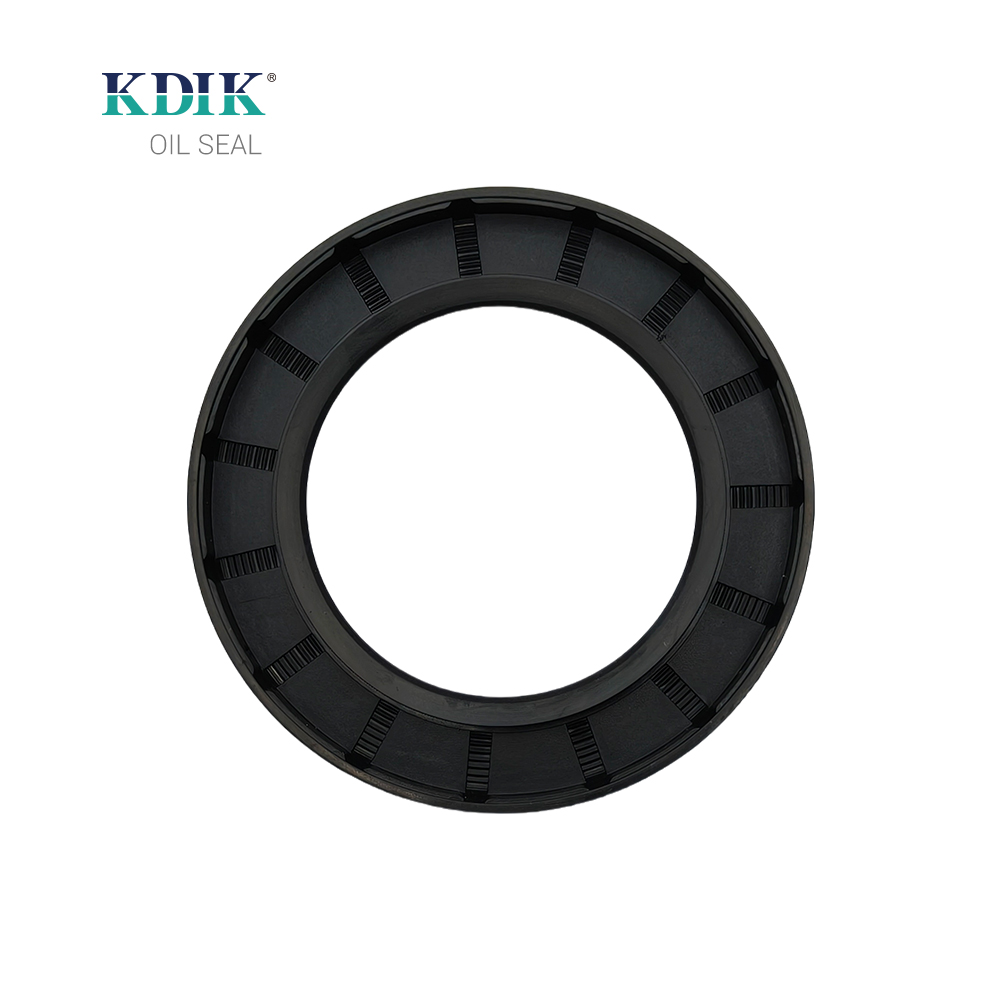

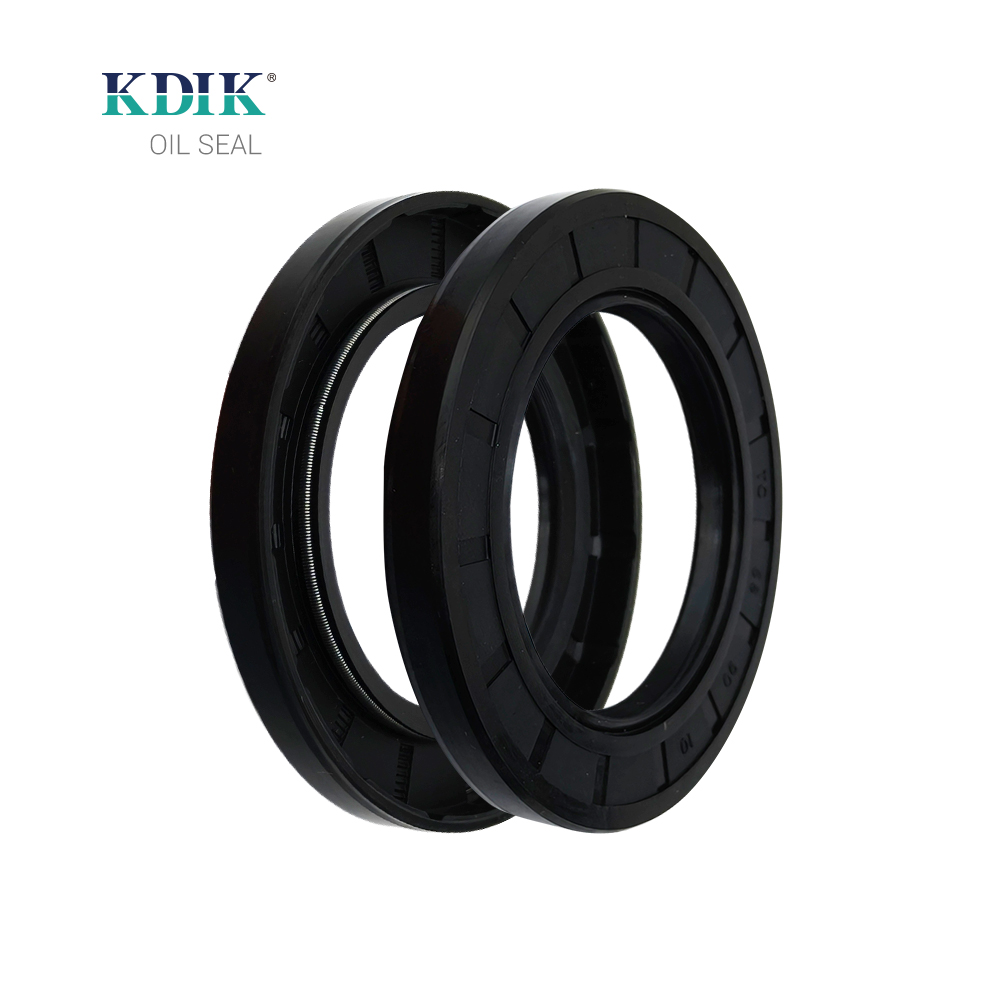

TC oil seal
Material:NBR with a spring-loaded double lip for tight sealing.
Function:Built to block oil, grease, and dirt in rotating shafts for smooth, long-lasting performance.
Type: TC (rubber covered, double lip, garter spring)
Size: 58*90*10mm (ID × OD × Width)
Material: NBR (NBR / FKM)
Spring: Stainless steel garter spring
Temperature: -30 to 225 °C
Speed (max): 3000 rpm
Pressure (max): 5.0 bar
Applications: gearboxes, pumps, small mo to rs, au to motive machinery and pressure/NISSAN
Key Benefits
Leak prevention: Spring-loaded primary lip maintains consistent contact on the shaft.
Contamination resistance: Dust lip helps keep out dirt and moisture.
Durable under dynamic conditions: Designed for continuous rotation within rated speed and pressure.
Material fit: NBR is suitable for common oils; choose FKM for higher heat/chemicals.
Temperature capable: Rated -30 to 100 °C (verify per application).
