Place of Origin: Hebei, China
Brand Name: KDIK/OEM/ODM
Type:TC/TG
Material: nitrile rubber (NBR)/FKM
Dimension
Inner diameter: 40mm
Outer diameter : 70 mm
Height 1: 12mm
Suitable for:automotive applications like engines and transmissions, as well as industrial machinery such as gearboxes, pumps, and electric motors.
Additional Details
Feature: Factory/Manufacturer direct sale
TYpe: MC TC TB SB SC TA TG TCN TCV COMBI CASSETTE
MOQ: 100pcs
Sample: Freely supplied
Product Data Sheet
Product Description:

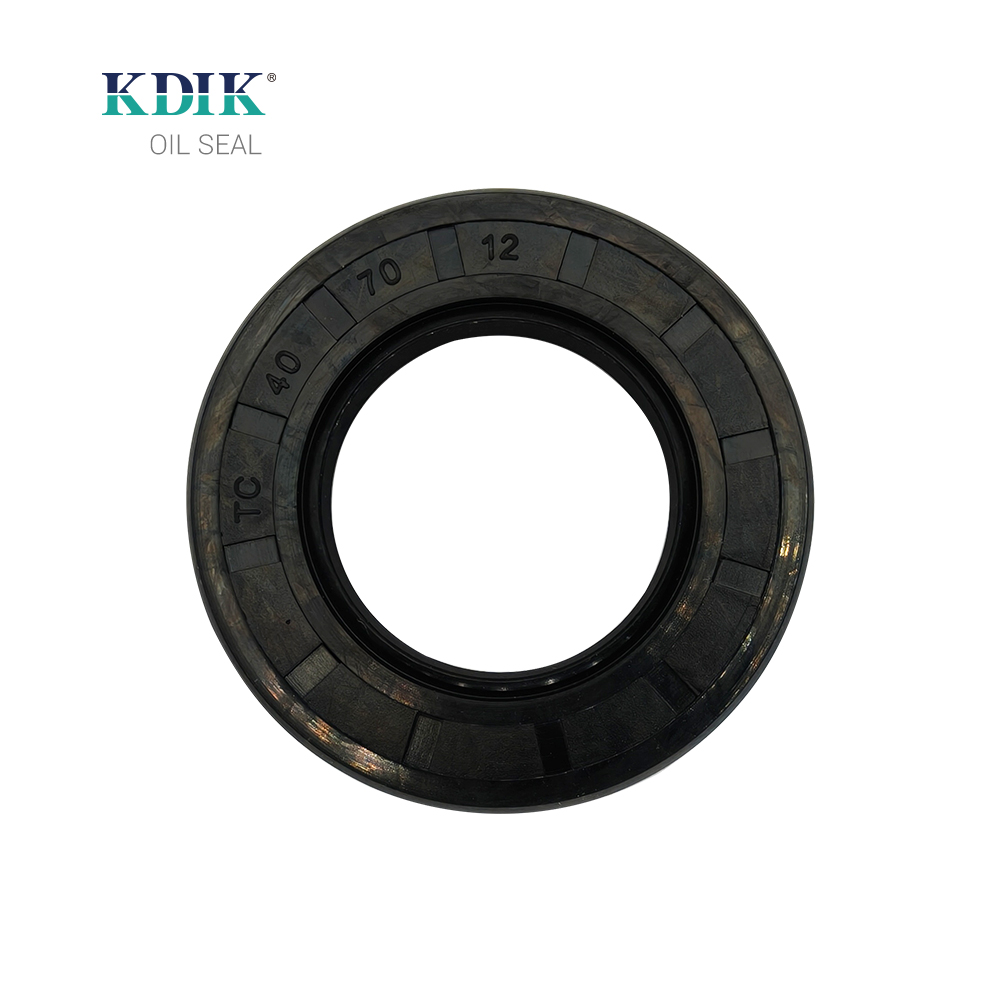

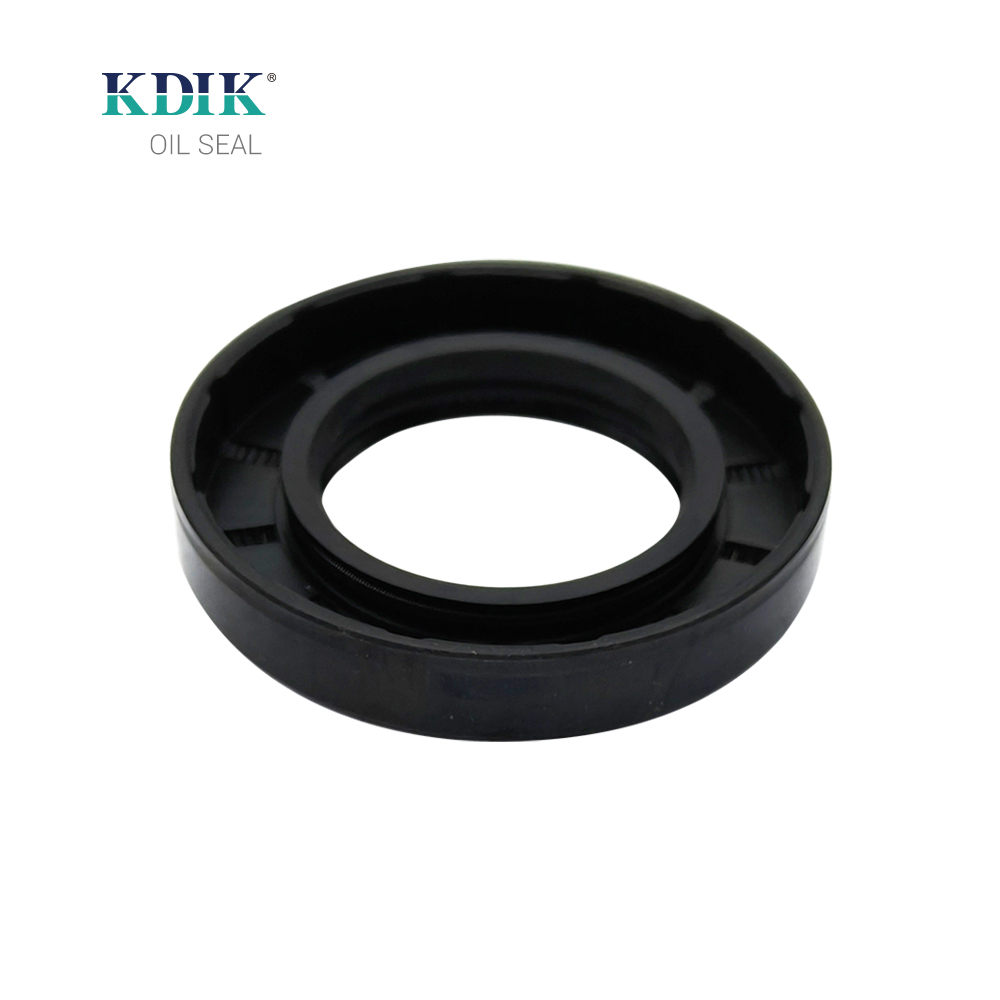

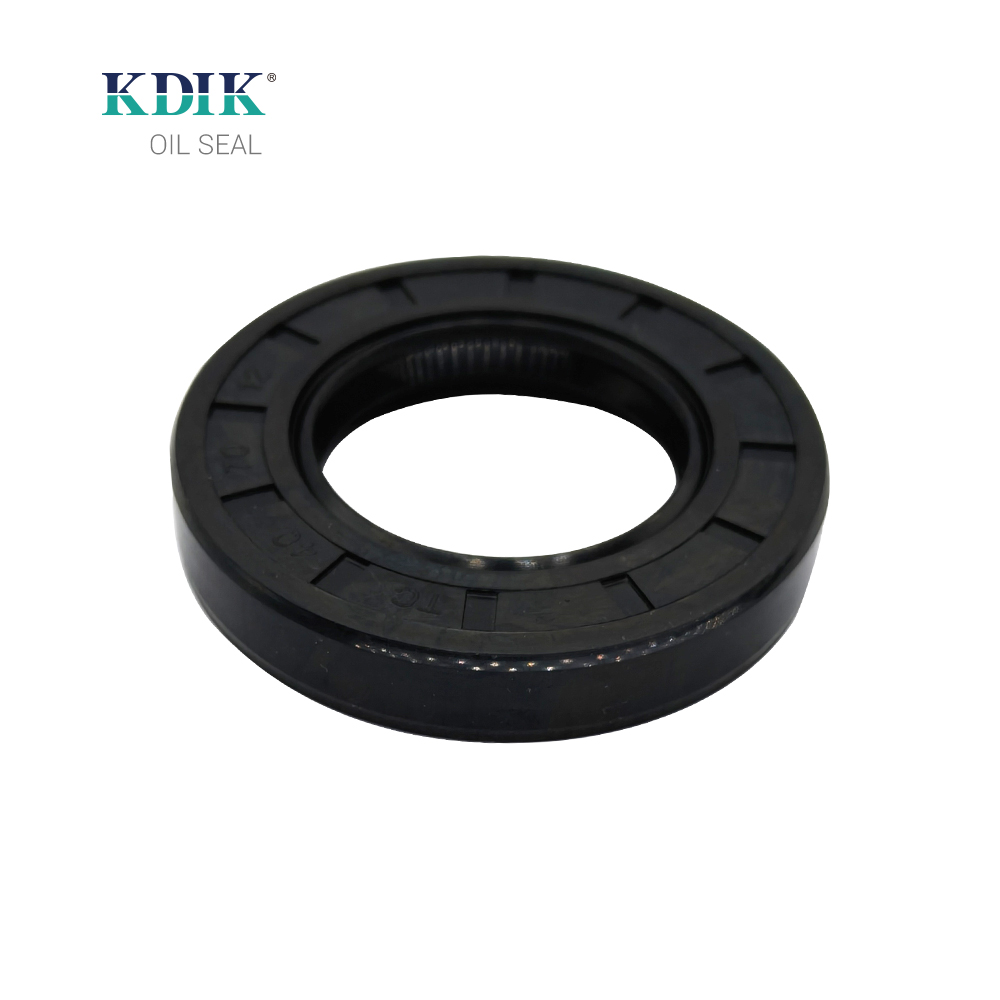

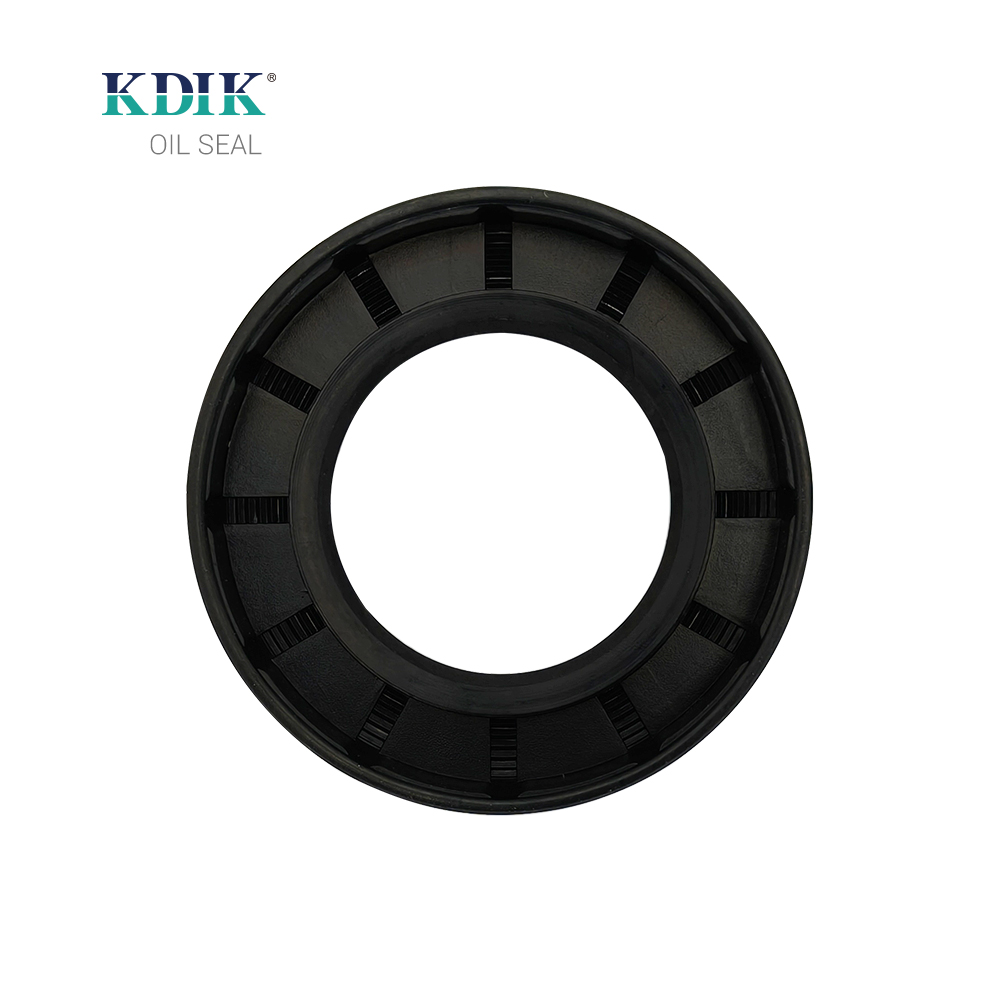

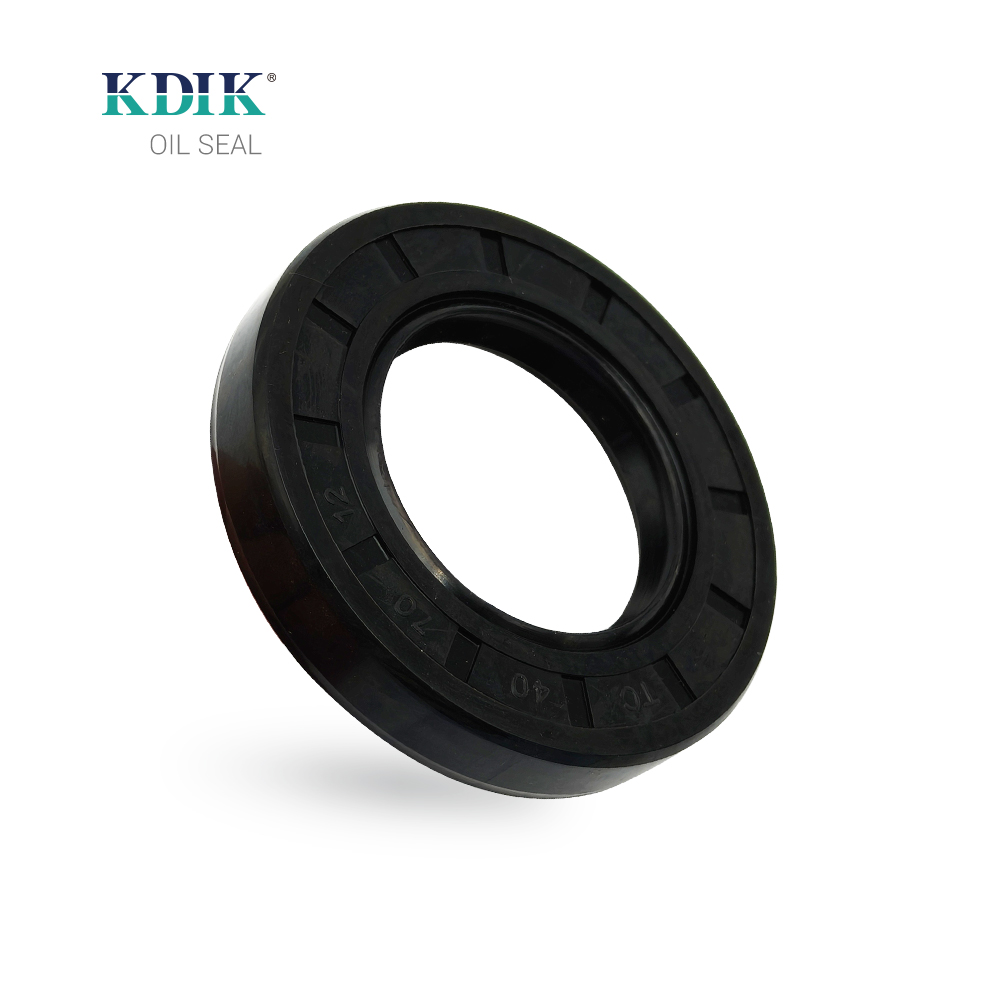

TC oil seal 40x70x12 mm
Material:NBR with a spring-loaded double lip for tight sealing.
Function:Built to block oil, grease, and dirt in rotating shafts for smooth, long-lasting performance.
Type: TC (rubber covered, double lip, garter spring)
Size: 40 × 70.0 × 12.0 mm (ID × OD × Width)
Material: NBR (NBR / FKM)
Spring: Stainless steel garter spring
Temperature: -30 to 100 °C
Speed (max): 3000 rpm
Pressure (max): 5.0 bar
Applications: gearboxes, pumps, small mo to rs, au to motive machinery and pressure
Key Benefits
Leak prevention: Spring-loaded primary lip maintains consistent contact on the shaft.
Contamination resistance: Dust lip helps keep out dirt and moisture.
Durable under dynamic conditions: Designed for continuous rotation within rated speed and pressure.
Material fit: NBR is suitable for common oils; choose FKM for higher heat/chemicals.
Temperature capable: Rated -30 to 100 °C (verify per application).
Package
