Place of Origin: Hebei, China
Brand Name: KDIK/OEM/ODM
OE No:. AZ2045E0
Material: nitrile rubber (NBR).
Type:SCJY
Dimension
Inner diameter: 35 mm
Outer diameter : 48 mm
Height : 5.5mm
Application:It's used on shafts in hydraulic systems
Additional Details
Feature: Factory/Manufacturer direct sale
TYpe: MC TC TB SB SC TA TG TCN TCV COMBI CASSETTE
MOQ: 100pcs
Sample: Freely supplied
Product Data Sheet
Product Description:
Rotary seal /NBR (nitrile rubber)

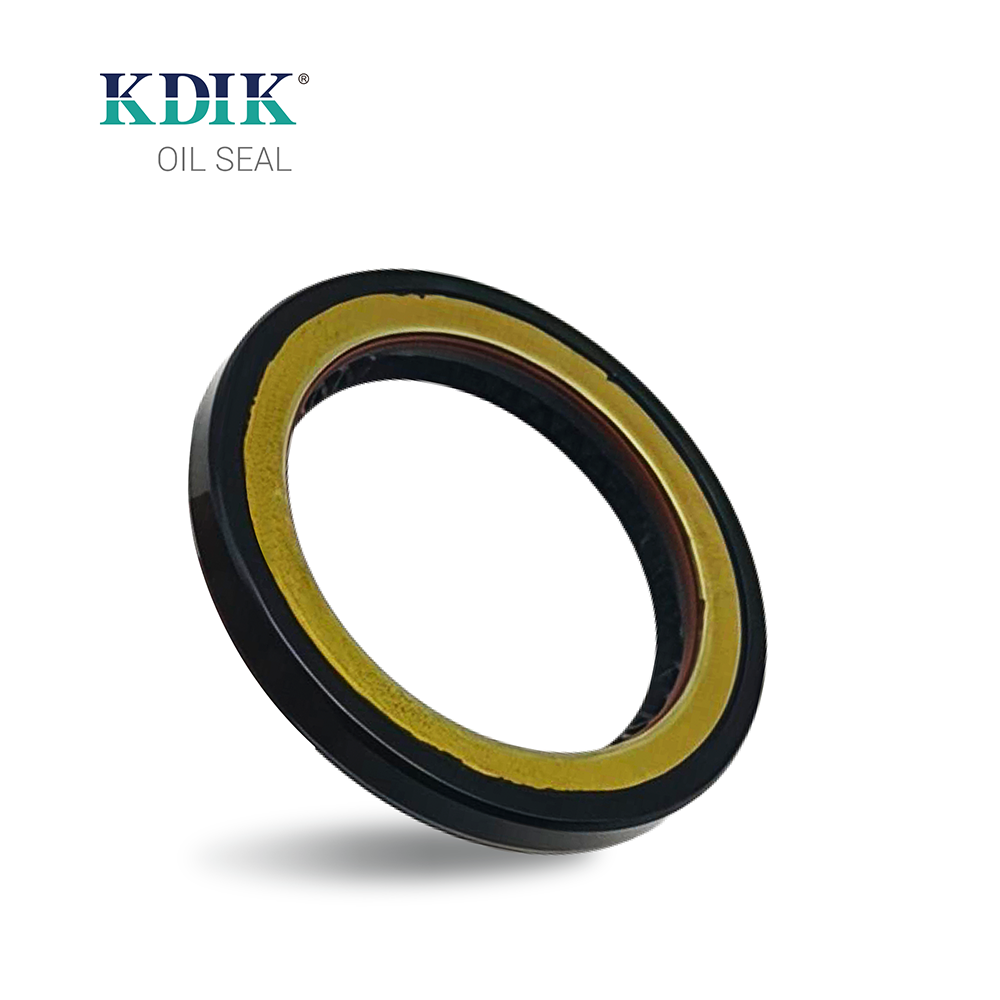

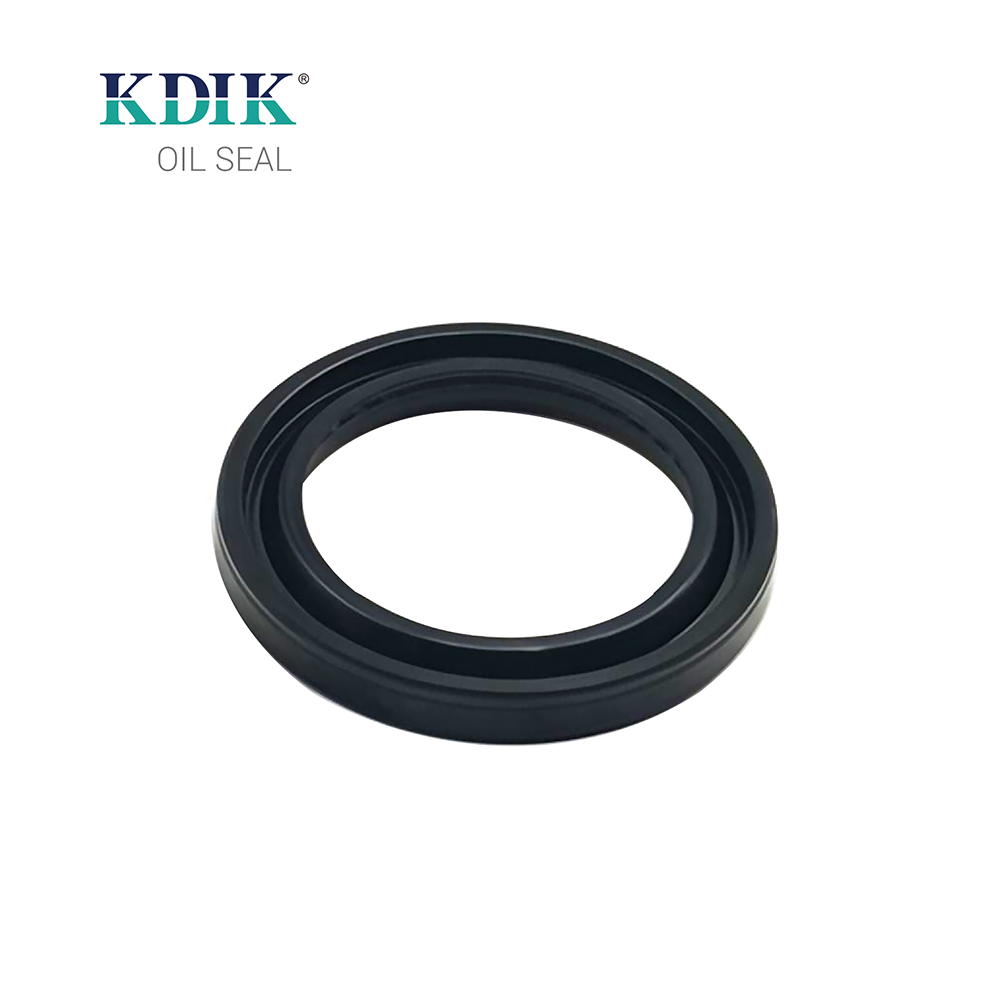

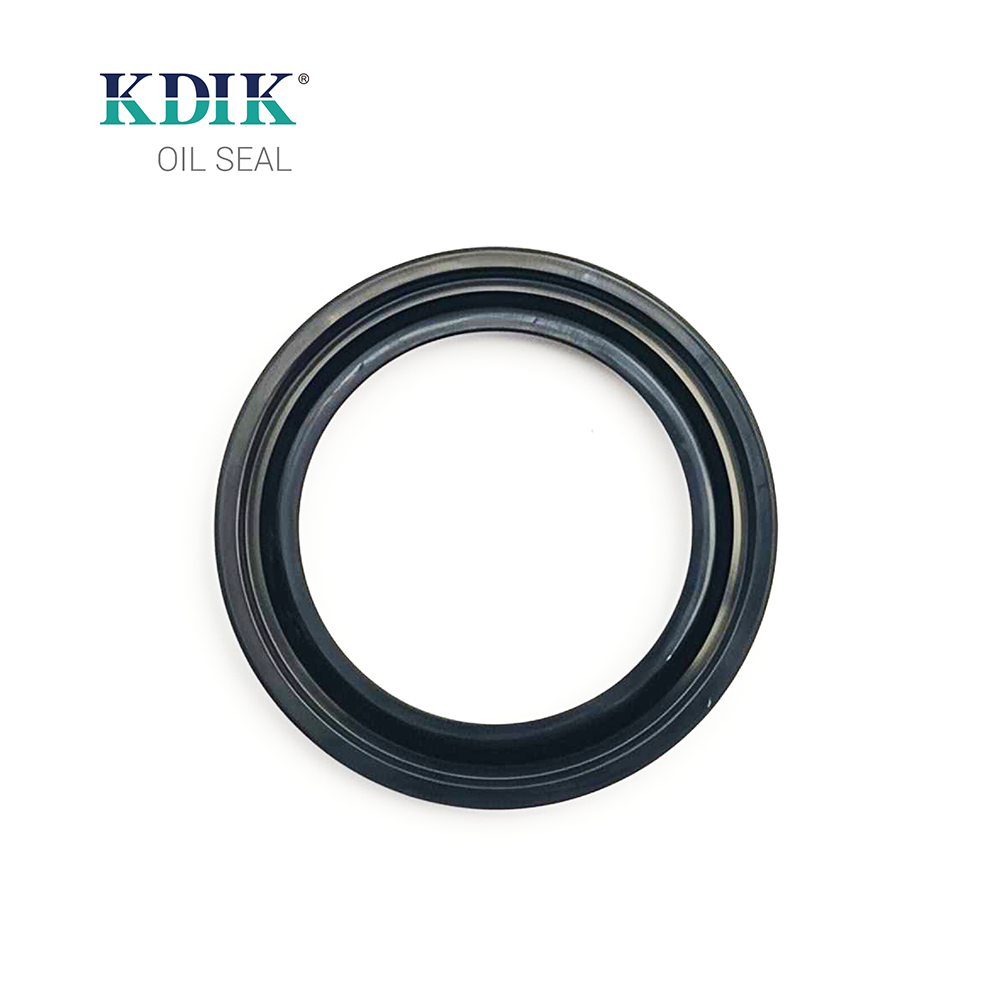

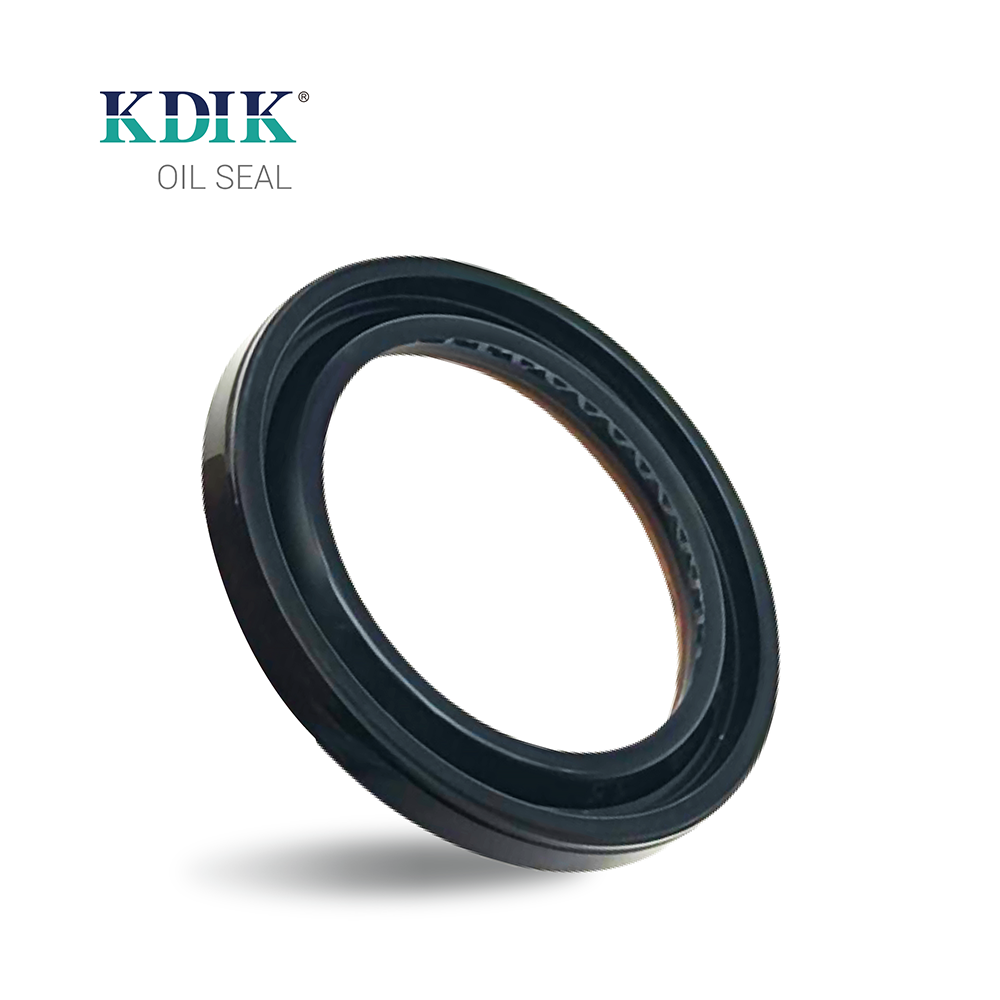

The high-pressure simmering 35x48x5.5 scjy NBR is a specialised sealing element designed for use on shafts in hydraulic systems, especially in hydrokinetic drives where maintaining tightness under high pressure is essential. It features an open metal insert on the front side, which creates a stable contact surface and prevents deformation under load. Made of nitrile rubber (NBR), this material is resistant to hydraulic oils and external factors.
Function
·Keeps lubricating fluid inside the system to keep gears lubricated and maintain normal pressure.
·Prevents contaminants (dust, sand, water) from entering the steering system, which could cause damage.
·Maintains the normal operation of the power steering system, ensuring the steering wheel can be turned smoothly and with reduced effort.
Package
Related Products
All the performance indicators meet the industry standards. Some of the product indicators are superior to those ...
Our main product lines include: Automobile oil seal, Agricultural & Construction machinery oil seal, Wheel hub oil seals for tractors, Valve Stem Seals, Precision Rubber Parts, O-rings
