Place of Origin: Hebei, China
Brand Name: KDIK/OEM/ODM
OE No:. 633B3197,12012938B
Material: nitrile rubber (NBR).
Type:BAHD, BAHDSN and BAKHDSN
Dimension
Inner diameter: 35 mm
Outer diameter : 52 mm
Height : 5mm
Application:It's used on shafts in hydraulic systems.Fits Danfoss Hydraulic Pumps OMS160
Additional Details
Feature: Factory/Manufacturer direct sale
TYpe: MC TC TB SB SC TA TG TCN TCV COMBI CASSETTE
MOQ: 100pcs
Sample: Freely supplied
Product Data Sheet
Product Description:
Rotary seal /NBR (nitrile rubber)

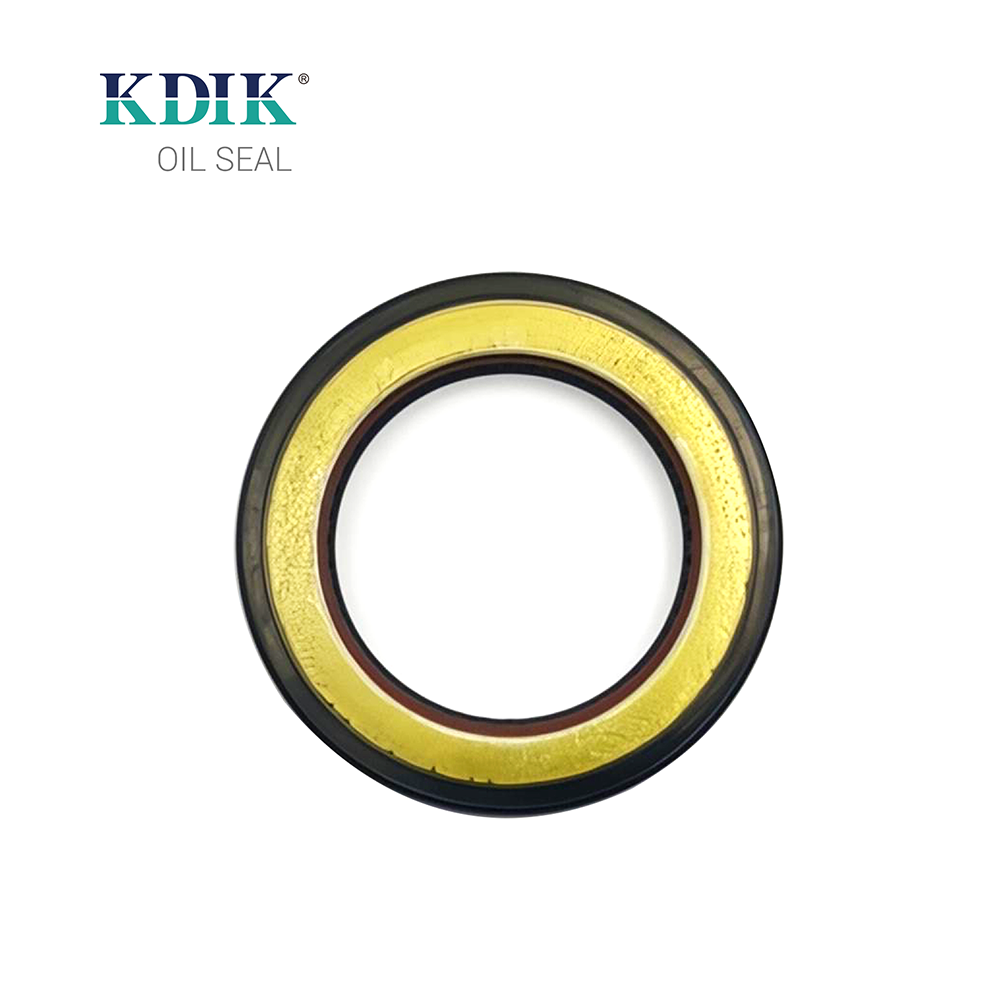

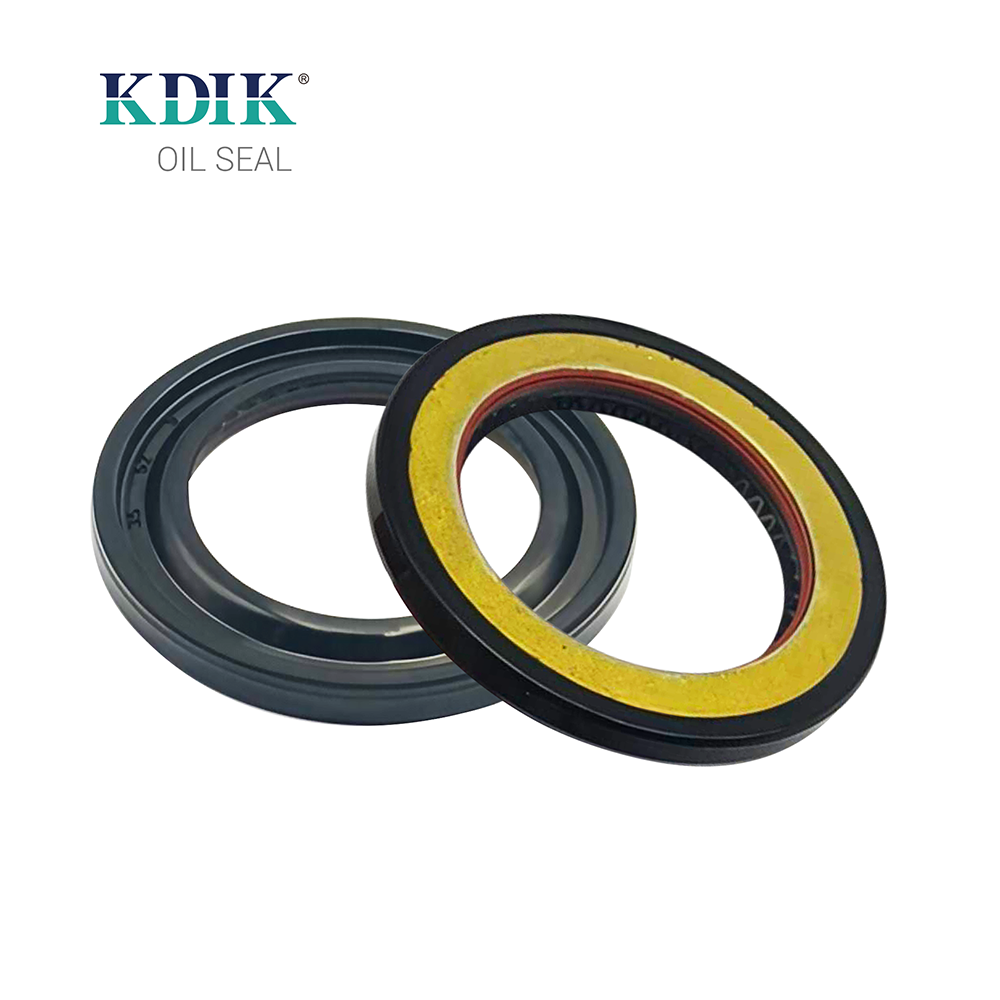

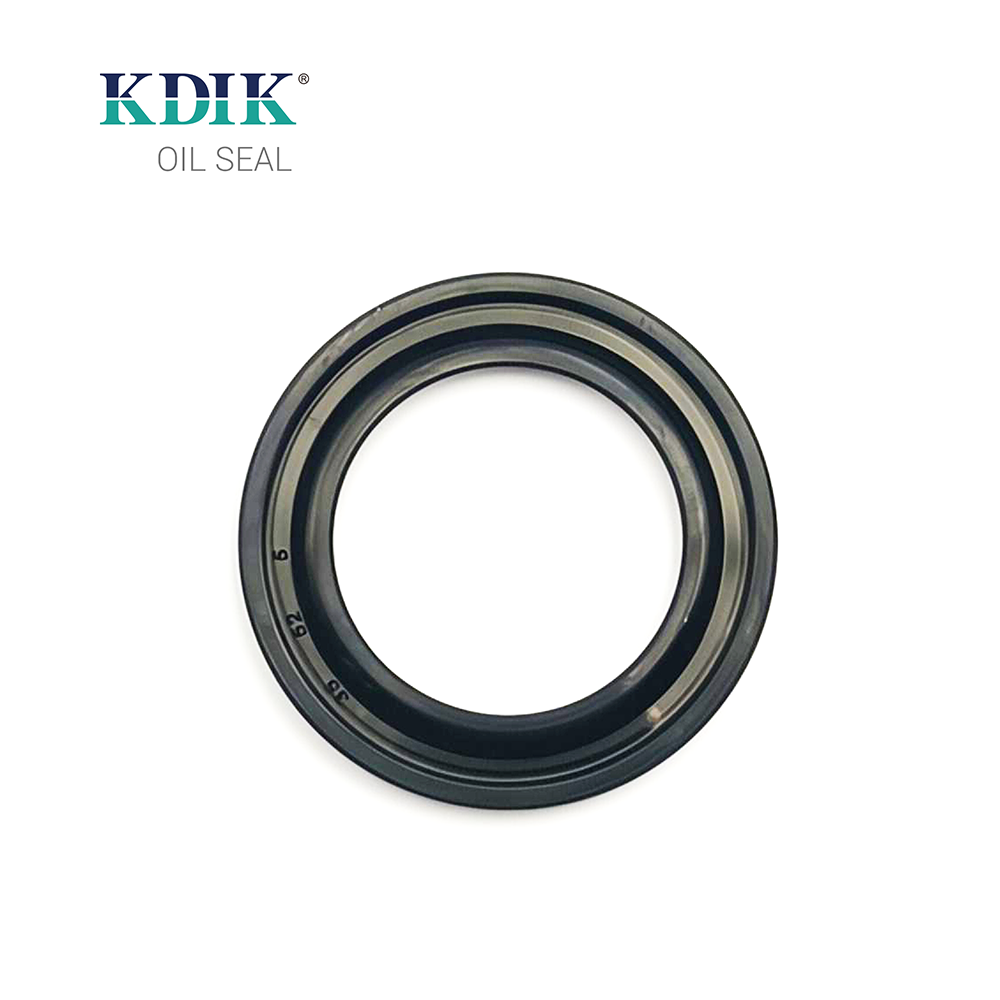

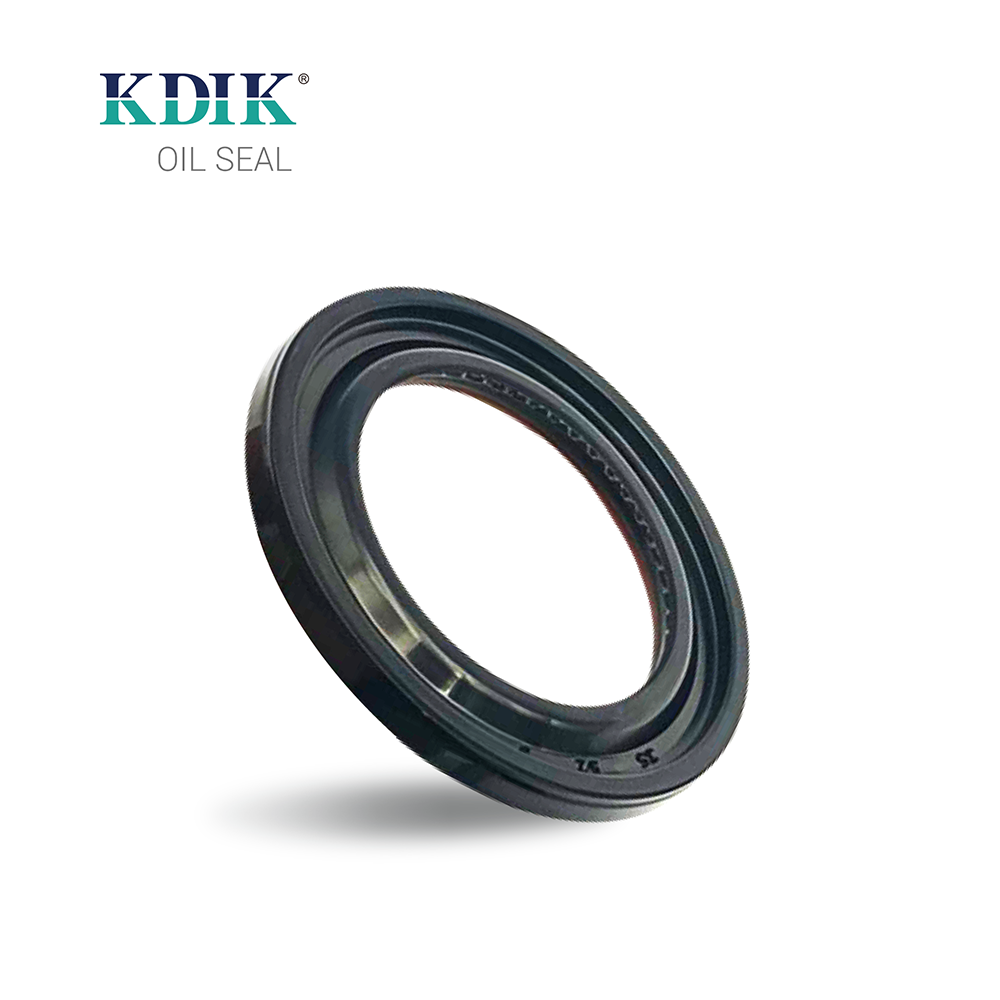

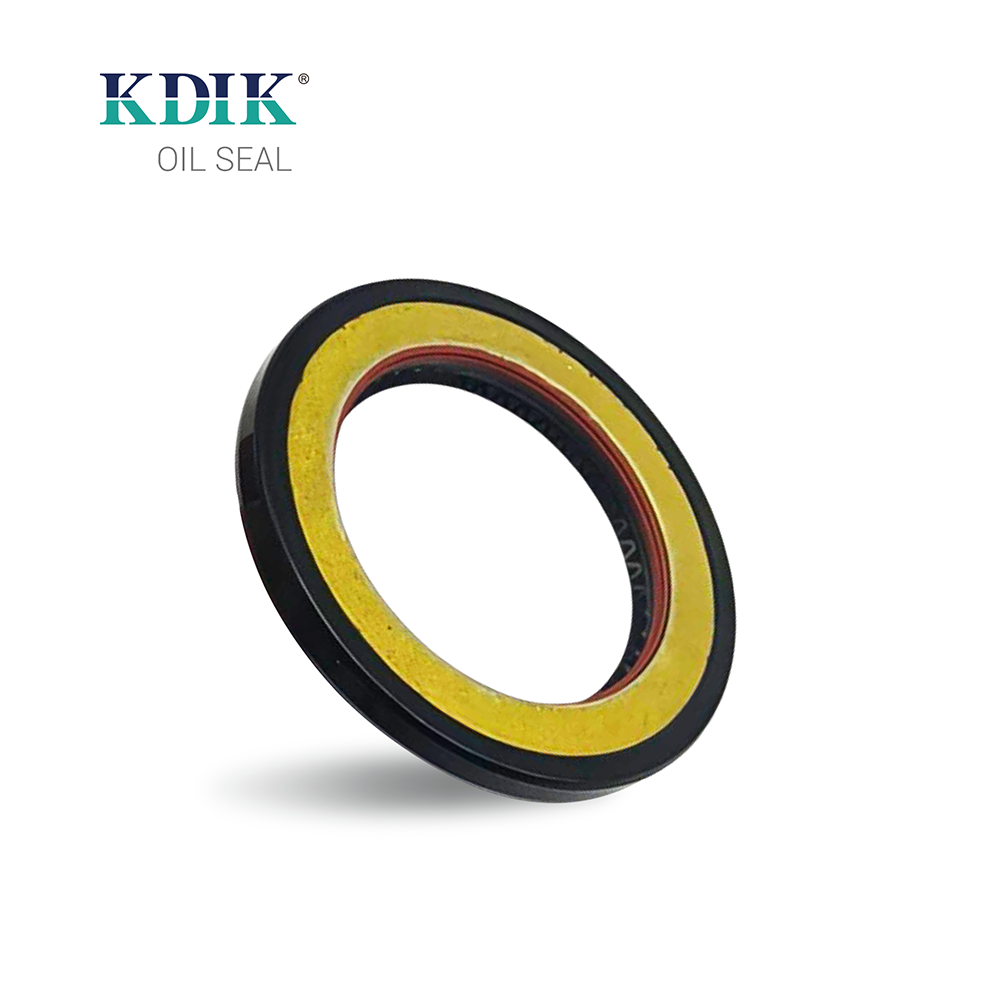

The high-pressure simmering 35x52x5 BAHD NBR [633B3197] is a specialised sealing element designed for use on shafts in hydraulic systems, especially in hydrokinetic drives where maintaining tightness under high pressure is essential. It features an open metal insert on the front side, which creates a stable contact surface and prevents deformation under load. Made of nitrile rubber (NBR), this material is resistant to hydraulic oils and external factors.
Dimension
Inner diameter: 35 mm (≈ 1.38 in)
Outer diameter: 52 mm (≈ 2.05 in)
Height: 5 mm (≈ 0.20 in)
Technical Specifications
Details
Pressure: P > 10Bar
Seal type: BAHD
Material type: NBR Working pressure: up to 100 bar (max 150 bar)
Linear speed: up to 2 m/s
Operating temperature: –30 °C to +105 °C
Seals marked BAHD, BAHDSN and BAKHDSN are interchangeable and can be used in the same applications.
