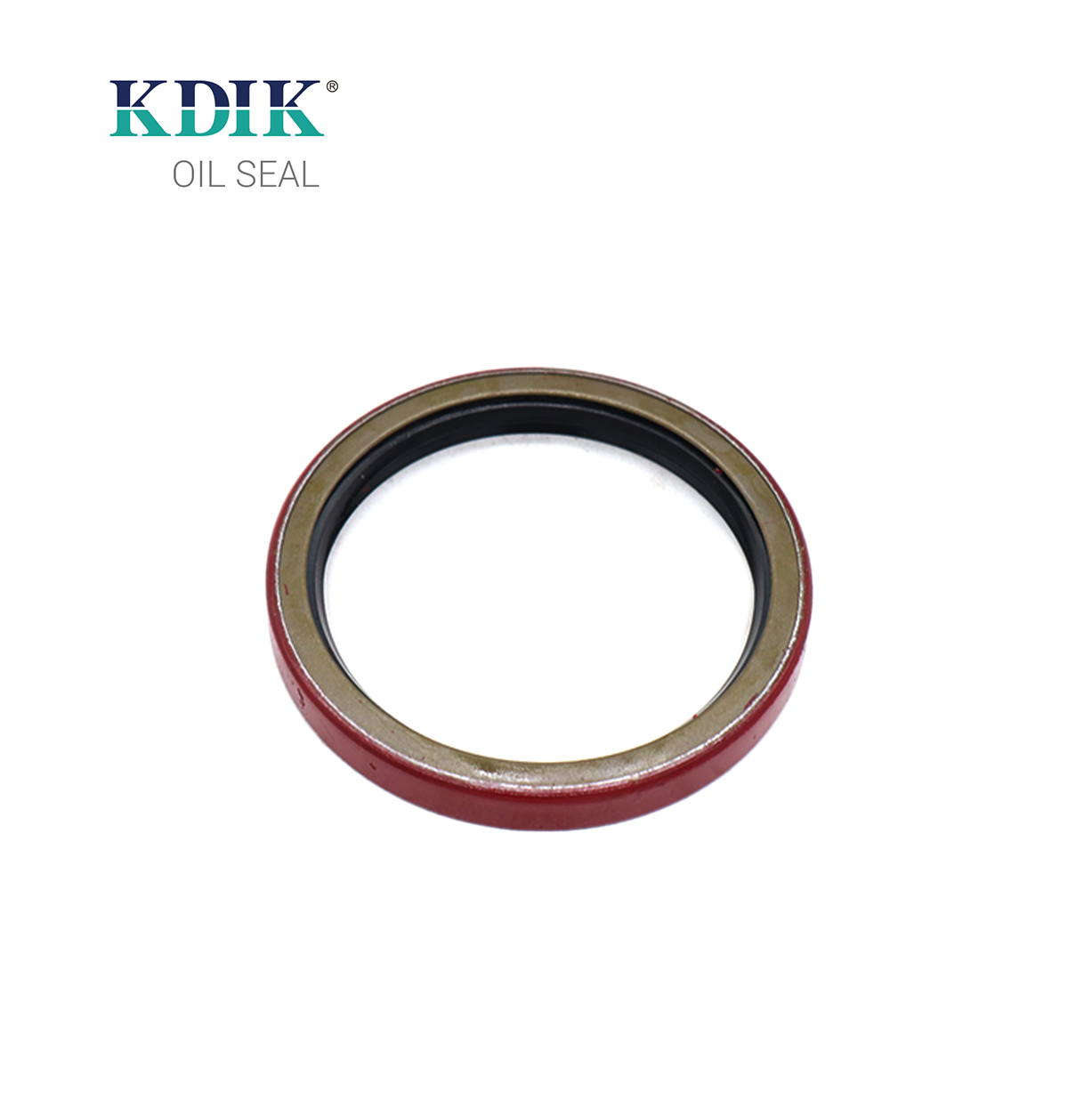

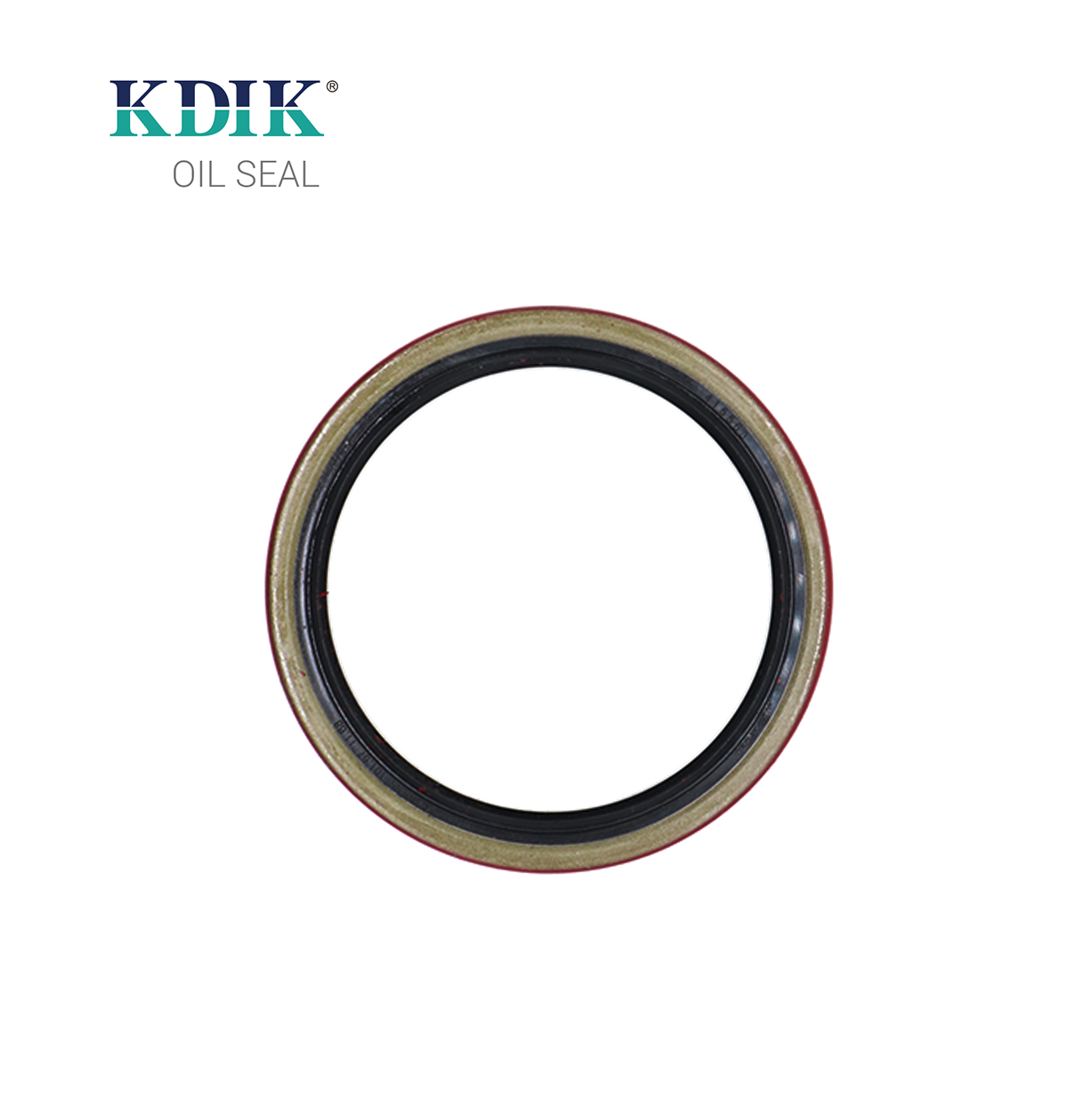

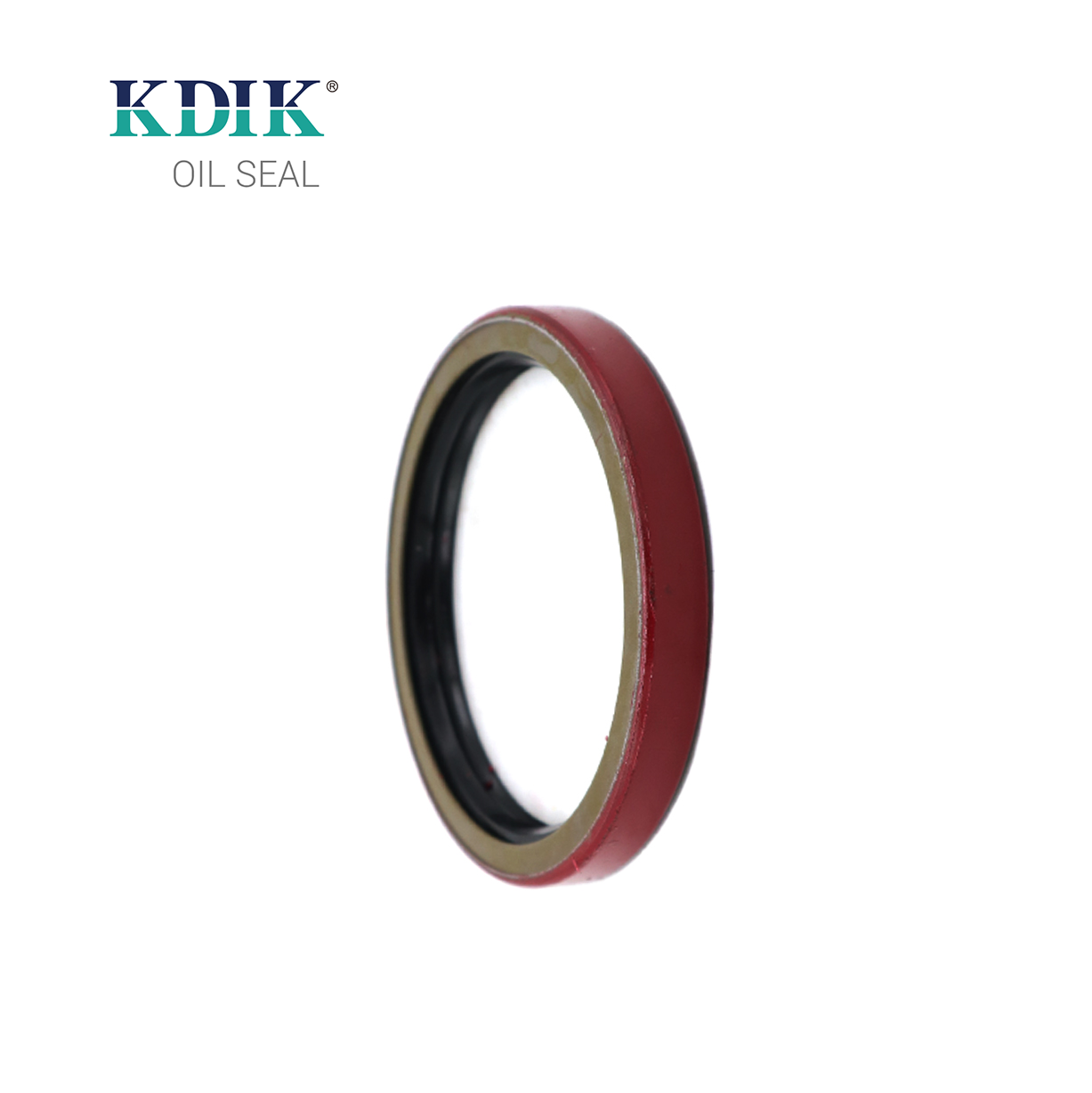

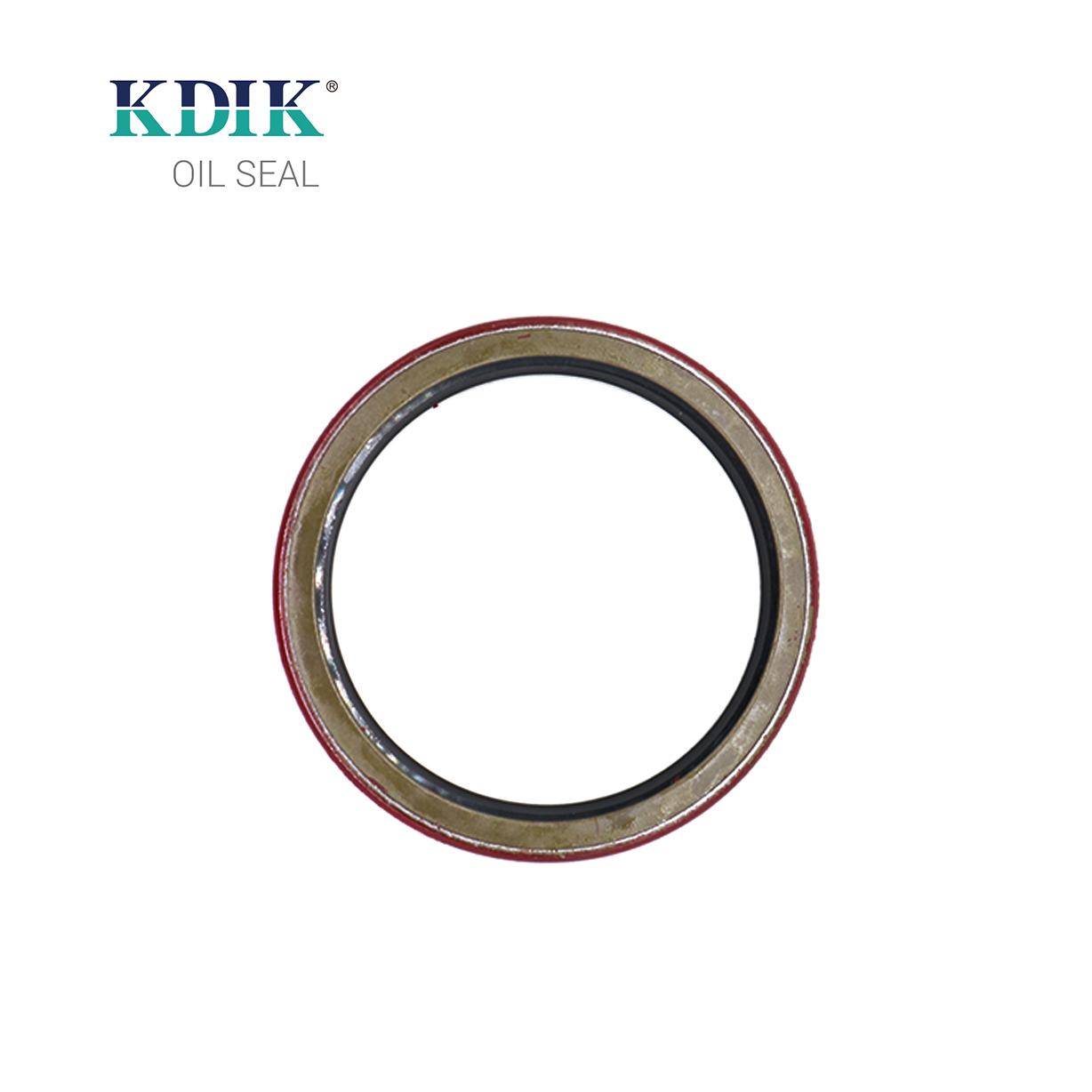

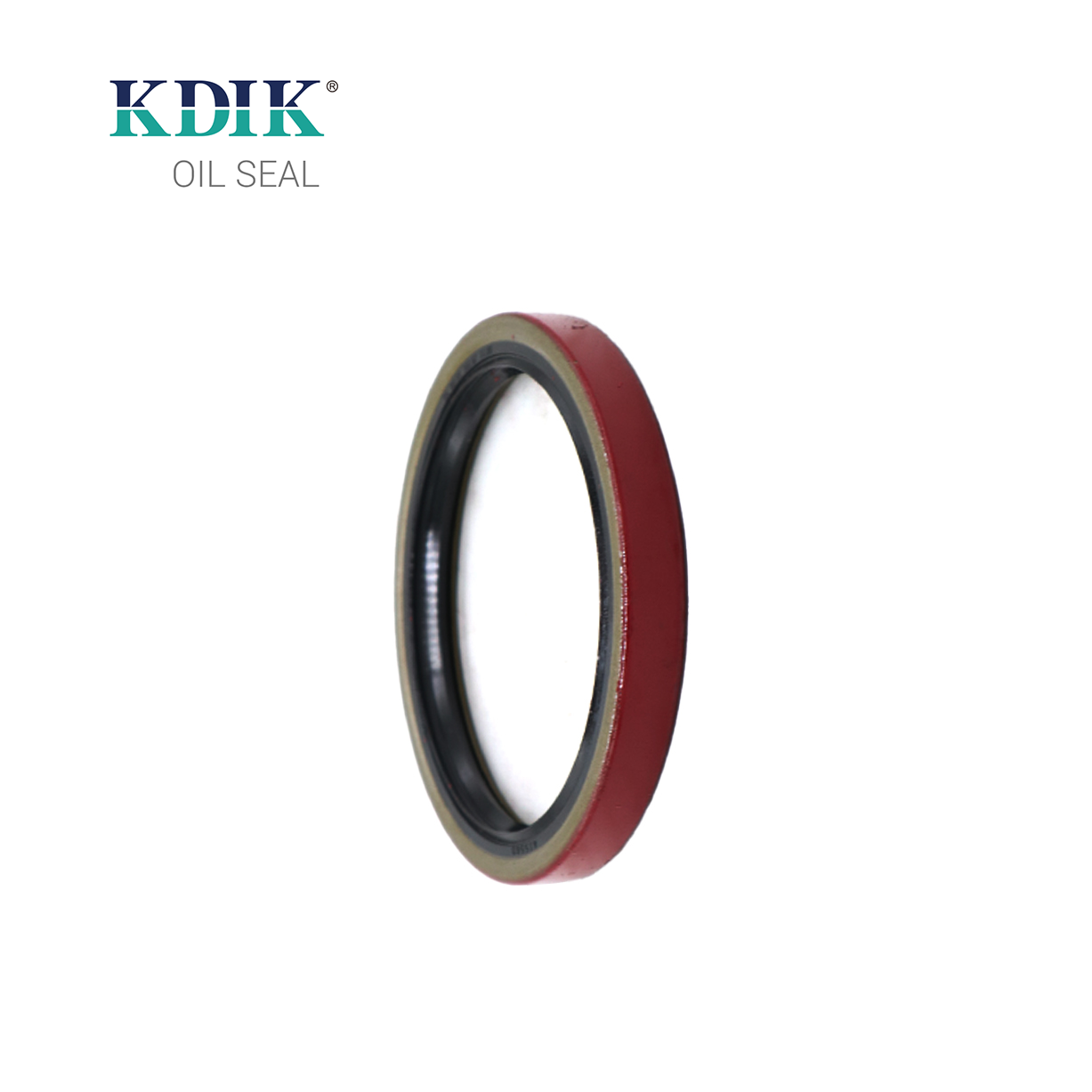

Timken National Seal 415563 Multi-Purpose Seal 410000 Series Size 3.25"x4.003"x0.468"

Product Description:

Product Name: Timken National Seal 415563 Multi-Purpose Seal 410000 Series Size 3.25"x4.003"x0.468"

OEM Number: 415563 (National)

Dimension: 3.25"x4.003"x0.468"

Type: Oil Bath Wheel Seal

Material:

* NBR Nitrile rubber

* FKM fluororubber / fluoroelastomer

* Silicone rubber

* Nylon or polyamide

* Polychloroprene

* Polyetheretherkeytone

* ACM / Polyacrylate rubber

* PTFE / Polytetrafluoroethylene

* Polyurethane

* Stainless steel

* Felt

* Leather

Hardness: 70~90 Shore

Operating Temperature: -40 ℃~100 ℃

Shaft Speed: Max. 3.420 r/min

Shaft Surface Speed: Max. 2.28 m/s

Pressure Differential: 0.07 N/mm

Feature:

Radial shaft seals for general industrial applications

Radial shaft seals sit between rotating and stationary components, or two components in relative motion.

They have two main parts. One is a cylindrical outer covering with interference fit that seals statically against the housing bore.

The second, a sealing lip, seals dynamically and statically against the shaft. Its sealing edge presses against the counterface surface of the shaft with a defined radial load.

Fuction:

Rotating shafts need a bearing arrangement for smooth,effective operation. In turn, bearing arrangements need asealing solution for protection and to achieve maximum ser-

wice life.As it seals the opening between components, a seal-ing solution must perform one or more primary seal functions:

1. Retain the lubricant

2. Exclude contaminants

3. Separate two differnt media

4. Seal under pressure

Kdik Oem List for Reference:

Master Wheel Seal Cross Reference
Scotseal Classic	Scotseal Plus XL	Scotseal Pro	National Red	National Gold	Grit-Guard	Guardian	Voyager	Discovery	Meritor Standard	Meritor Premium	Conmet
35066	35058	35058PRO	370001A	380001A	382-8036	308-0836	3883-0136	383-0236	MER0136	MER0236	10045885
38780	38776	38776PRO	370023A	380023A	392-9099	309-0912	393-0112	393-0212	MER0112	MER0212
40136	40129	40129PRO	370036A	380036A	372-7098	307-0713	373-0113	373-0213	MER0113	MER0213
42623	42627	42627PRO	370065A	380065A	372-7099	307-0723	373-0123	373-0223	MER0123	MER0223	10045889
43764	43761	43761PRO	370048A	380048A	382-8064	308-0864	383-0164	383-0264	MER0164	MER0264	10045883
46305	46300	46300PRO	370025A	380025A	372-7097	307-0743	373-0143	373-0243	MER0143	MER0243	10045888
47697	47691	47691PRO	370003A	380003A	392-9131	309-0973	393-0173	393-0273	MER0173	MER0273	10045887
28758	28759		370150A		382-8066	308-0866	383-0166

National Oil Seal
Make	Make Number	Qunatity	OD(mm)	housing hole (mm)	shaft(mm)	ID (mm)	Thickness (mm)	alternate part number
National	415953	20	127.1	126.97	101.6	101.6	12.7	07045600, 2D8540, 3371222, 3F5791, 3K9121, 83193, 9235168, AF2659, AF2659R, F0HZ7052A, G13824
National	415458	20	92.15	92.02	2.625	66.68	9.53	2398209, 2398220, 2433650, 2433651, 2462993, 2955098, 2A1983, 2B40
National	415072	20	190.7	190.5	152.4	152.4	14.27	07047343, 5F7731, 837236, E31925, JOOO38066
National	415458	20	92.15	92.02	66.68	66.68	9.53
National	417316	20	95.4	95.28	69.85	69.85	9.53	122674, 2234866, 2380496, 2431D5, 2436953, 2438255, 2443570
National	417349	20	95.4	95.28	76.2	76.2	11.1	07046744, 101679A, 15527658, 2447861, 31827, 430032, AT55472
National	450519	20	82.7	82.58	63.5	63.5	12.7	02039CS, 0704F813, 12305167, 15510627, 2955637, 3867960, 5L4776, 685262, 8034503
National	455013	24	101.8	101.68	76.2	76.2	11.89	07041284, 10164T2, 11BK126, 15527659, 1H2439, 2226549, 2318576, 2407877, 2493047
National	455086	24	108.05	107.92	76.2	76.2	11.89
National	455958	20	136.68	136.55	98.43	98.43	12.7	12303596, 15527677
National	471341-N	20	76.23	76.1	57.15	57.15	11.1	2037485, L34033
National	472150	20	79.5	79.38	58.72	58.72	9.53	07047733, 0704E998, 83124
National	472954	20	72.11	72.01	28.58	28.58	9.53	07047751
National	475379	20	120.8	44.5	95.28	95.25	12.7	2804; 95177S
National	471529	20	28.65	28.55	17.45	17.45	6.35	07046764, 0704A216, 2296767, 2K4816, 60117, A30590, HX44879, P1362, VT4903
National	471554	30	35.03	34.93	19.05	19.05	6.35	04243AB, 048720, 065089404, 07042925, 07046821, 0704M139, 104396, 11867150, 15527541, 156210A, 1867150, 1D5567, 1F5479, 1G9424, 21D6131, 225736, 2LA0662, 3014546A, 3202615, 320265, 355851, 36897, 459322, 4J7557, 4R526, 5H5241, 5H7628, 6131, 669720, 714550, 7B280, 8127231, 8332959, 84711, 848841, 88AX18, 88AX182, 926162
National	473235	30	66.73	66.62	42.85	42.85	7.92	07047761, 1S1115, 371876, 37728, 7M8680, 8L7657, 8L7657A, A9LY7052B
National	472164	24	63.65	63.55	44.45	44.45	7.92	20355, 2096658, 2117058, 2149674, 2149740, 2387418, 2387420, 2391842, 2397420, 2410236, 2447666, 247224, 24C50352, 301013
Garlock	53 X 2915	24	152.58	152.43	127	127	12.7	07046905, 0704A267, 0704J015, 24C55271, 311706560, 65927, 831135, 83115, 9L7188, 9L9077, A21878, K9L8340
Garlock	53 X 4509	10	260.55	260.35	234.95	234.95	12.7	337426N

Standard Wheel Seals
Meritor Standard	Application	SKF®/CR Classic	National®Red	Stemco®Voyager
MER0143	Trailer	46305	370025A	373-0143
MER0173	Drive	47697	370003A	393-0173
MER0136	Steer	35066	370001A	383-0136
MER0123	Trailer	42623	370065A	373-0123
MER0112	Drive	38780	370023A	393-0112
MER0164	Steer	43764	370048A	383-0164
MER0113	Trailer	40136	370036A	373-0113
MER0103	Drive	45099	370022A	393-0103
MER0104	Drive	42672	370031A	393-0104

Package & Delivery

KDIK Roll Package

KDIK Plastic Bag

KDIK Carton Box

Scotseal family interchanges

Scotseal family interchanges Stemco
Scotseal PlusXL	Scotseal Classic	National 3700 Series	Stemco Guard wheel sets	National 3800 Series	Stemco (seal w/ring)	Voyager	Discover
23590		370199A				383-0175
28759	28758	370150A	308-0866		(2164/1008)	383-0166
29400		370211A				383-0176
34384	34387	370047A	309-0935		(2728/1728)
			392-9035		(2057/1062)
34971	34975	370132A	308-0863		(2721/1721)
			382-8063		(2133/1036)
34994	35000	370169A	392-9036		(2057/1063)
			392-9111
35058	35066	370001A	308-0836	380001A	(2702/1702)	383-0136	383-0236
			382-8036		(2036/1036)
	36358/36365	370011A	382-8071		(2216/1034)	383-0171
	38750	370024A	309-0915		(2102/1501)	393-0115
			392-9099
38776	38780	370023A	309-0912	380023A	(2707/1707)	393-0112	393-0212
			392-9099		(2102/1501)
39426
39979	39988	370033A	382-8039		(2039/1038)	383-0139	383-0239
456301	456301	wAR-12	382-8023		(2039/1011)
40091	40086	370066A	382-8001		(2086/1013)	383-0101
40129	40136	370349A	307-0713	380036A	(2704/1704)	373-0113	373-0213
		370036A	372-7098		(2109/1507)
					(2109/1013)
42627	42623	370065A	307-0723	380065A	(2705/1705)	373-0123	373-0223
		376590A	372-7099	386590A	(2023/1503)
42673	42672	370031A	309-0904	380031A	(2718/1705)	393-0104	393-0204
			392-9112		(2132/1515)
			392-9130
43754	43752	370338A	307-0744		(2709/1709)	373-0144
		370037A	372-7095		(2118/1510)
43761	43764	370182A	308-0864	380048A	(2711/1711)	383-0164	383-0264
		370048A	382-8064		(2137/1037)
	43860	370019A	309-0965		(2713/1713)
			392-9096		(2114/1508)
44916	44922	370124A	308-0853		(2708/1708)	383-0153
			382-8053
	44964/45010	370178A	392-9033
45093	45099	370022A	309-0903	380022A	(2706/1706)	393-0103	393-0203
			392-9094		(2129/1511)
45095	45103	370131A	308-0855	380131A	(2710/1710)	383-0156
			308-0856		(2710/1706)
			382-8056
45157	45160	370021A	309-0964		(2712/1712)
			392-9088		(2113/1517)
46300	46305	370025A	307-0743	380025A	(2701/1701)	373-0143	373-0243
			372-7097	386002A	(2110/1504)
					(2110/1048)
47691/47692	47697	370003A	309-0973	380003A	(2703/1703)	393-0173	393-0273
			392-9131		(2106/1502)
48002	48000	370005A	309-0960		(2717/1761)
		370173A	392-9081		(2009/1079)
	48690	370195A	392-9054			393-0134

Scotseal family popular applications
Scotseal PlusXL	Scotseal Classic	Axle	Application
23590	---	Front Axle	GMC, Isuzu (8,000#)
28759	28758	Front Axle	Arvin Meritor/Rockwell, Dexter, International, Spicer (6,000#; 7,500#)
29400	---	Front Axle	GMC, Isuzu (11,000#)
34384	34387	Drive Axle	Ford, Navistar, Arvin Meritor/Rockwell, Eaton
34971	34975	Front Axle	Ford, Arvin Meritor/Rockwell
34994	35000	Drive Axle	Eaton, Navistar
35058	35066	Front Axle	Ford, Navistar, Arvin Meritor/Rockwell, Kenworth, Peterbilt, Freightliner, Volvo-White (12,000#)
---	36358/36365	Front Axle	GMC, Mack
---	38750	Drive Axle	Eaton, GMC (incl. Chevrolet), Arvin Meritor/Rockwell, Dana, Spicer (17,000# single; 34,000# tandem)
38776	38780	Drive Axle	Ford, Navistar, Arvin Meritor/Rockwell, Eaton, Volvo-White (34,000#)
39426	---	Front Axle	Volvo-White
39979 w/456301	39988 w/456301	Front Axle	Mack (12,000#)
40091	40086	Front Axle	Arvin Meritor/Rockwell Transit
40129	40136	Trailer Axle	Dana Spicer, Arvin Meritor/Rockwell, Eaton, Standard Forge (19,000#)
42627	42623	Trailer Axle (Pro-Par)	Fruehauf, Arvin Meritor/Rockwell (TP Series)
42673	42672	Drive Axle	Mack (44,000#)
43754	43752	Trailer Axle	Arvin Meritor/Rockwell, Eaton (20,000#)
43761	43764	Front Axle	Ford, Navistar, Kenworth, Arvin Meritor/Rockwell, Volvo-White, Mack, GMC (16,000#)
---	43860	Drive Axle	Eaton, Ford, GMC, Navistar, Arvin Meritor/Rockwell, Volvo-White
44916	44922	Front Axle	Navistar
---	44964/45010	Drive Axle	GMC Coach, Arvin Meritor/Rockwell
45093	45099	Drive Axle	Mack (34,000#; 38,000#)
45095	45103	Front Axle	Navistar (9,000#)
45157	45160	Drive Axle	Eaton, Ford, GMC, Navistar, Mack, Arvin Meritor/Rockwell
46300	46305	Trailer Axle	Dana Spicer, Arvin Meritor/Rockwell, Eaton, Standard Forge (22,500#)
47691/47692	47697	Drive Axle	Ford, Navistar, Arvin Meritor/Rockwell, Eaton, Kenworth, Peterbilt, Freightliner, Volvo-White (38,000#; 46,000#)
48002	48000	Drive Axle	Mack, GM
48690	---	Drive Axle	Meritor Transit

Our Advantages & Service

1. We cooperate with first-class raw material suppliers in China and abroad,using the best raw materials.High quality NBR,silicon and FKM materials are imported from USA,Germany and Southeast Asia.

2. Top quality custom rubber products that can completely meet your needs.

3. Fast production & in-time delivery that never delay your project and usage.

4. One-top custom service and value-added service to save your time and cost.

5. OEM/ODM Services are available.We can design and produce various Non-standard Rubber Parts according to your PDF,3D or STEP drawing files.

6. All of rubber finished products are 100% inspected before shipment.

7. Professional technicians with more than 30 years experience.

1. Custom manufacturing: This involves producing specialized oil seals to meet specific application requirements.Manufacturing seals from a variety of material.

2. Creating custom packaging:Providing kitting, color coding, and barcoding services.

3. Maintenance:Some services may include preventative maintenance to prolong the life of seals.

4. Leak repair:Specialized services may offer leak repair solutions.

5. Flexible production mode: It can not only undertake large-scale orders but also adapt to small-batch and multi-variety customized demands through a flexible production line.

6. Main application fields of oil seals: Automobiles, Agricultural Machinery, Construction Machinery.
