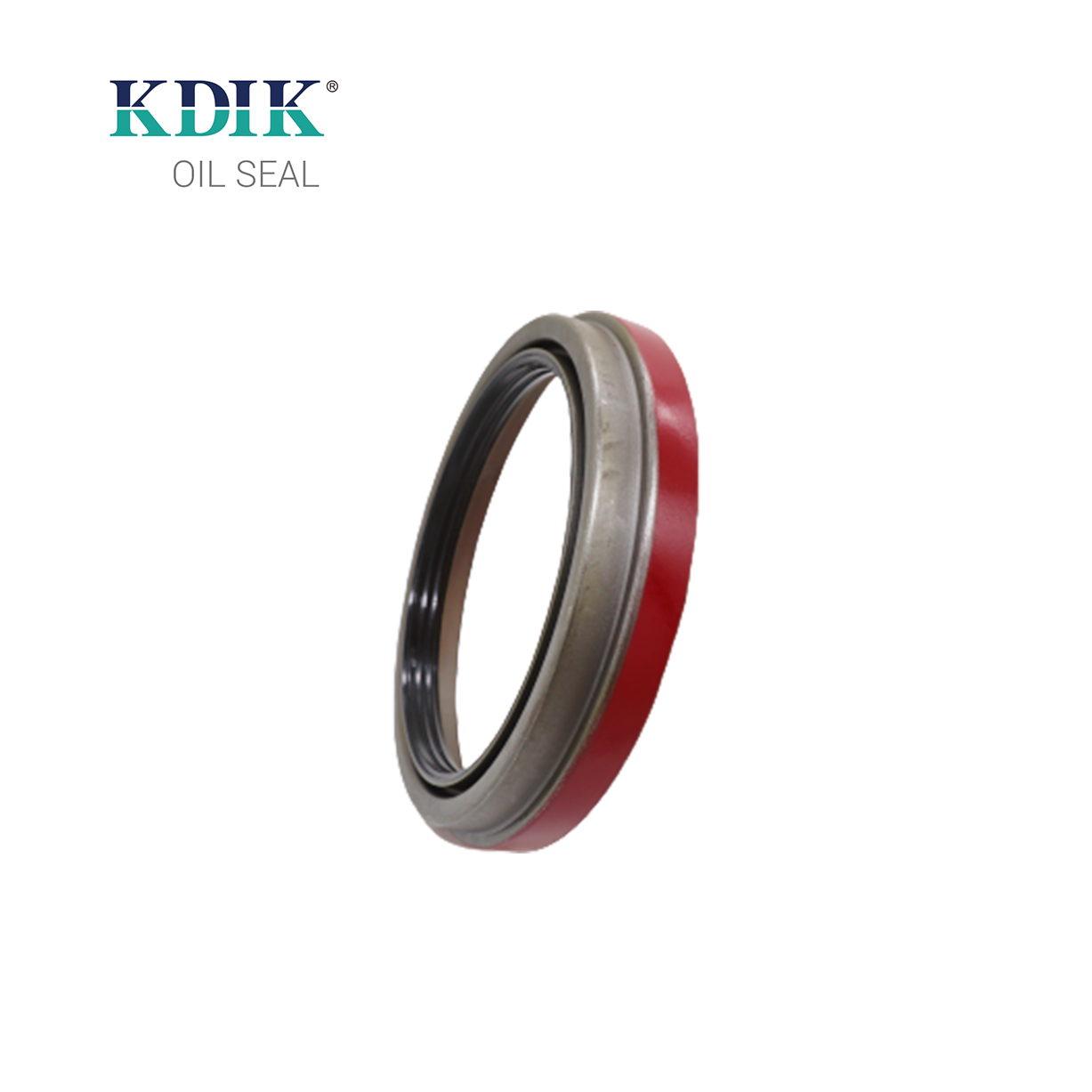

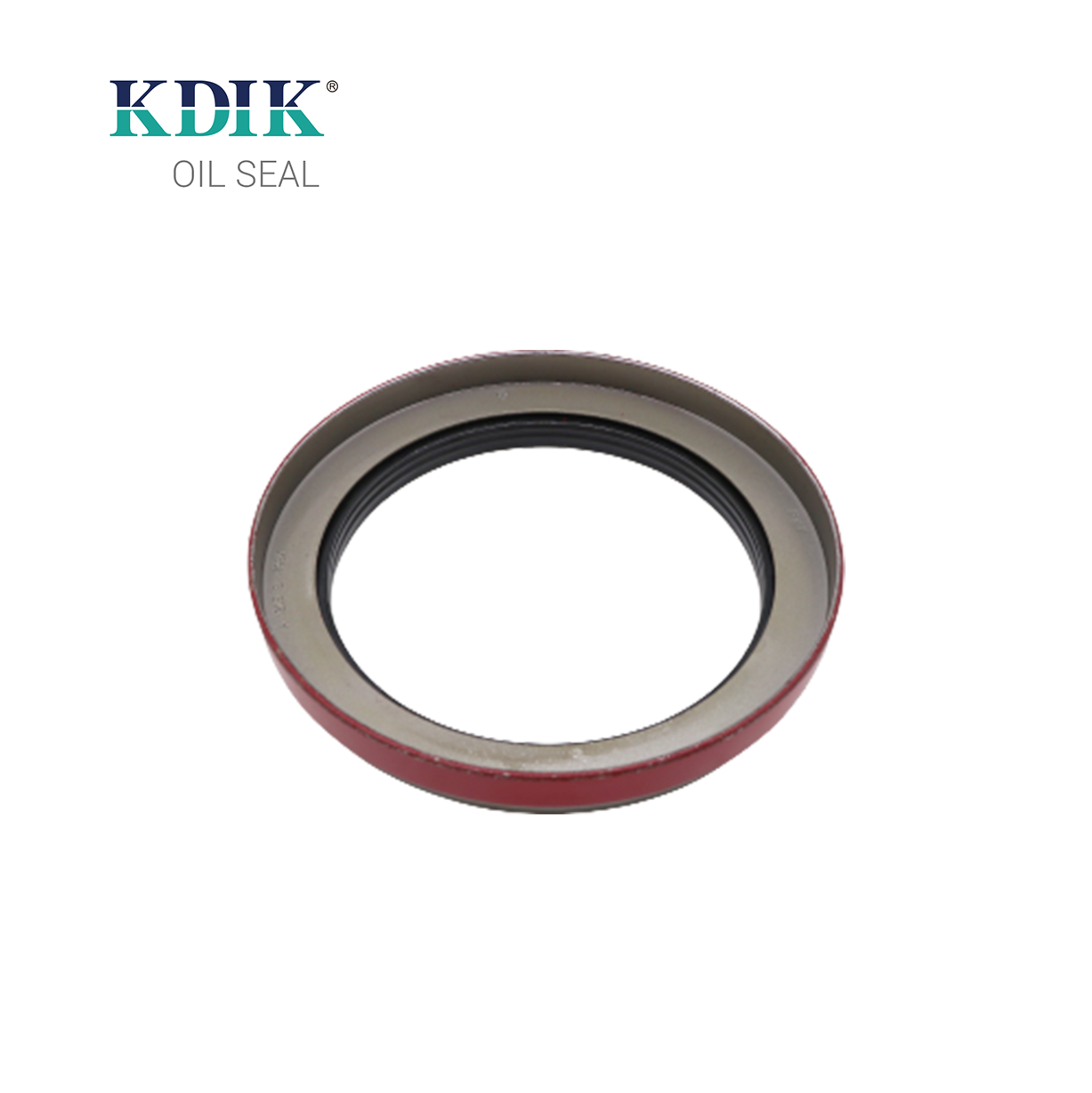

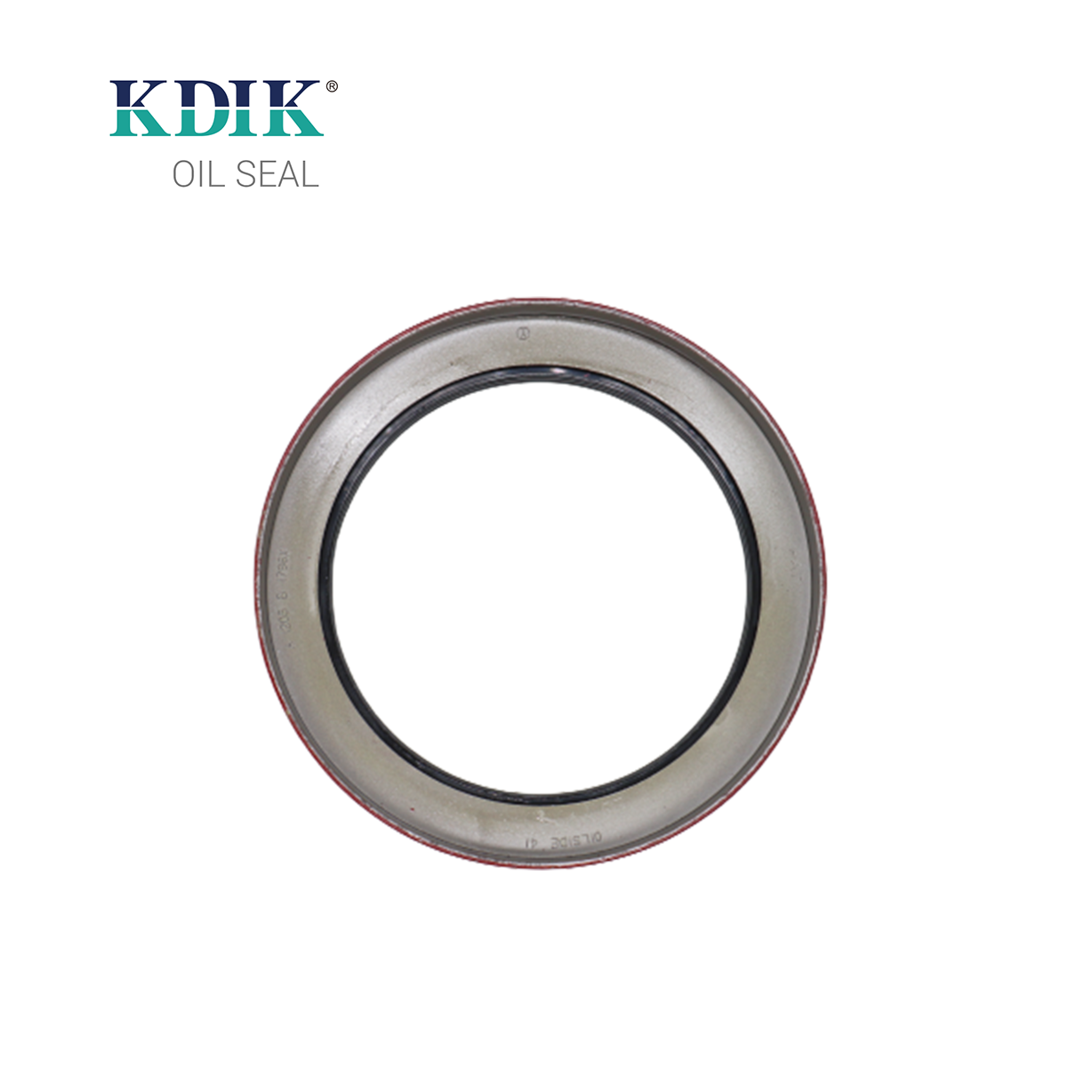

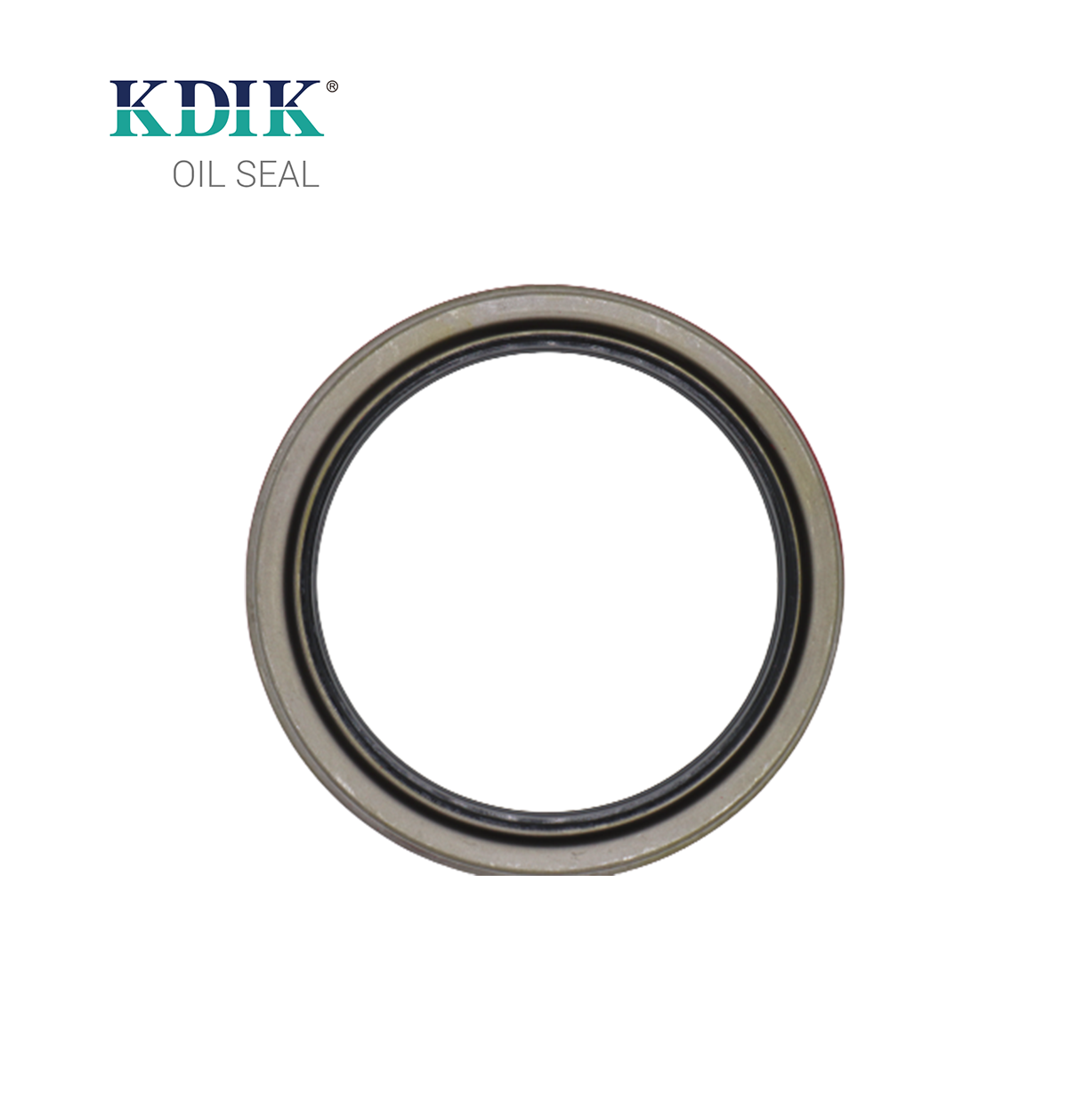

370166A Timken National Oil Seal High Quality Heavy Duty Truck and Trailer Oil Seal Size 5.000"x6.629"x1.093"

370166A Timken National Oil Seal High Quality Heavy Duty Truck and Trailer Oil Seal Size 5.000"x6.629"x1.093"

Place of Origin: Hebei, China

Brand Name: KDIK/OEM/ODM

Model No:  370166A (National)

Size:  5.000"x6.629"x1.093"

Suitable for:  Heavy Duty Truck & Trailer Hubs

MOQ: 50pcs

Sample: Freely Supplied

Material: NBR/VITON/FKM/SILICONE/HNBR/EPDM/PTFE/ACM/FLET ect

Application for:  Heavy Duty Truck & Trailer Hubs

Color: Black/Brown/Blue/Customized

Certificate: ISO-9001/ IATF-16949

Feature: FACTORY /Manufacturer direct sale

Stock Type: TC TB SB SC TA TG TCN TCV COMBI CASSETTE ect


Inquire Now Next Product

Product Data Sheet

Product Description:

Product Name:  370166A Timken National Oil Seal High Quality Heavy Duty Truck and Trailer Oil Seal Size 5.000"x6.629"x1.093"

OEM Number:  370166A (National)

Dimension:  5.000"x6.629"x1.093"

Type:  Oil Bath Wheel Seal

Material:

* NBR Nitrile rubber

* FKM fluororubber / fluoroelastomer

* Silicone rubber

* Nylon or polyamide

* Polychloroprene

* Polyetheretherkeytone

* ACM / Polyacrylate rubber

* PTFE / Polytetrafluoroethylene

* Polyurethane

* Stainless steel

* Felt

* Leather

Hardness:  70~90 Shore

Operating Temperature:  -40 ℃~100 ℃

Shaft Speed:  Max. 3.420 r/min

Shaft Surface Speed:  Max. 2.28 m/s

Pressure Differential:  0.07 N/mm

Feature:

Radial shaft seals for general industrial applications

Radial shaft seals sit between rotating and stationary components, or two components in relative motion. They have two main parts. One is a cylindrical outer covering with an interference fit that seals statically against the housing bore. The second, a sealing lip, seals dynamically and statically against the shaft. Its sealing edge presses against the counterface surface of the shaft with a defined radial load.

Fuction:

Rotating shafts need a bearing arrangement for smooth,effective operation. In turn, bearing arrangements need asealing solution for protection and to achieve maximum ser-wice life.As it seals the opening between components, a seal-ing solution must perform one or more primary seal functions:

1. Retain the lubricant

2. Exclude contaminants

3. Separate two differnt media

4. Seal under pressure




Kdik Oem List for Reference:

Master Wheel Seal Cross Reference
Scotseal ClassicScotseal Plus XLScotseal ProNational RedNational GoldGrit-GuardGuardianVoyagerDiscoveryMeritor StandardMeritor PremiumConmet
350663505835058PRO370001A380001A382-8036308-08363883-0136383-0236MER0136MER023610045885
387803877638776PRO370023A380023A392-9099309-0912393-0112393-0212MER0112MER0212
401364012940129PRO370036A380036A372-7098307-0713373-0113373-0213MER0113MER0213
426234262742627PRO370065A380065A372-7099307-0723373-0123373-0223MER0123MER022310045889
437644376143761PRO370048A380048A382-8064308-0864383-0164383-0264MER0164MER026410045883
463054630046300PRO370025A380025A372-7097307-0743373-0143373-0243MER0143MER024310045888
476974769147691PRO370003A380003A392-9131309-0973393-0173393-0273MER0173MER027310045887
2875828759
370150A
382-8066308-0866383-0166




National Oil Seal
MakeMake NumberQunatityOD(mm)housing hole  (mm)shaft(mm)ID (mm)Thickness (mm)alternate part number
National41595320127.1126.97101.6101.612.707045600, 2D8540, 3371222, 3F5791, 3K9121, 83193, 9235168, AF2659, AF2659R, F0HZ7052A, G13824
National4154582092.1592.022.62566.689.532398209, 2398220, 2433650, 2433651, 2462993, 2955098, 2A1983, 2B40
National41507220190.7190.5152.4152.414.2707047343, 5F7731, 837236, E31925, JOOO38066
National4154582092.1592.0266.6866.689.53
National4173162095.495.2869.8569.859.53122674, 2234866, 2380496, 2431D5, 2436953, 2438255, 2443570
National4173492095.495.2876.276.211.107046744, 101679A, 15527658, 2447861, 31827, 430032, AT55472
National4505192082.782.5863.563.512.702039CS, 0704F813, 12305167, 15510627, 2955637, 3867960, 5L4776, 685262, 8034503
National45501324101.8101.6876.276.211.8907041284, 10164T2, 11BK126, 15527659, 1H2439, 2226549, 2318576, 2407877, 2493047
National45508624108.05107.9276.276.211.89
National45595820136.68136.5598.4398.4312.712303596, 15527677
National471341-N2076.2376.157.1557.1511.12037485, L34033
National4721502079.579.3858.7258.729.5307047733, 0704E998, 83124
National4729542072.1172.0128.5828.589.5307047751
National47537920120.844.595.2895.2512.72804; 95177S
National4715292028.6528.5517.4517.456.3507046764, 0704A216, 2296767, 2K4816, 60117, A30590, HX44879, P1362, VT4903
National4715543035.0334.9319.0519.056.3504243AB, 048720, 065089404, 07042925, 07046821, 0704M139, 104396, 11867150, 15527541, 156210A, 1867150, 1D5567, 1F5479, 1G9424, 21D6131, 225736, 2LA0662, 3014546A, 3202615, 320265, 355851, 36897, 459322, 4J7557, 4R526, 5H5241, 5H7628, 6131, 669720, 714550, 7B280, 8127231, 8332959, 84711, 848841, 88AX18, 88AX182, 926162
National4732353066.7366.6242.8542.857.9207047761, 1S1115, 371876, 37728, 7M8680, 8L7657, 8L7657A, A9LY7052B
National4721642463.6563.5544.4544.457.9220355, 2096658, 2117058, 2149674, 2149740, 2387418, 2387420, 2391842, 2397420, 2410236, 2447666, 247224, 24C50352, 301013
Garlock53 X 291524152.58152.4312712712.707046905, 0704A267, 0704J015, 24C55271, 311706560, 65927, 831135, 83115, 9L7188, 9L9077, A21878, K9L8340
Garlock53 X 450910260.55260.35234.95234.9512.7337426N


Standard Wheel Seals
Meritor StandardApplicationSKF®/CR  ClassicNational®RedStemco®Voyager
MER0143Trailer46305 370025A373-0143
MER0173Drive47697 370003A393-0173
MER0136Steer35066 370001A383-0136
MER0123Trailer42623 370065A373-0123
MER0112Drive38780 370023A393-0112
MER0164Steer43764 370048A383-0164
MER0113Trailer40136 370036A373-0113
MER0103Drive45099 370022A393-0103
MER0104Drive42672 370031A393-0104


KDIK OIL SEALS NATIONAL 3700 SERIES
PART NUMBERITEM NAMESIZE"
370066AOil Bath Wheel Seal45.6260.605
370069AOil Bath Wheel Seal5.257.3751
370078AOil Bath Wheel Seal4.56.6221.093
370086AOil Bath Wheel Seal4.56.311.175
370094AOil Bath Wheel Seal4.1255.3750.605
370106AOil Bath Wheel Seal4.1665.50.605
370107AOil Bath Wheel Seal4.256.0350.915
370109AOil Bath Wheel Seal4.8756.6221
370119AOil Bath Wheel Seal5.647.5010.605
370120AOil Bath Wheel Seal5.57.251.187
370121AOil Bath Wheel Seal4.8756.51
370124AOil Bath Wheel Seal4.55.3740.984
370131AOil Bath Wheel Seal4.55.8760.984
370132AOil Bath Wheel Seal3.54.5430.788
370145AOil Bath Wheel Seal3.1254.1740.5
370150AOil Bath Wheel Seal2.8753.8750.5
370165AOil Bath Wheel Seal3.8755.3760.985
370166AOil Bath Wheel Seal56.6221.093
370169AOil Bath Wheel Seal3.54.7510.605
370173AOil Bath Wheel Seal4.7656.251.05
370175AOil Bath Wheel Seal7.258.750.605
370178AOil Bath Wheel Seal4.55.50.675
370179AOil Bath Wheel Seal3.54.450.843
370181AOil Bath Wheel Seal4.7655.9991.031
370182AOil Bath Wheel Seal4.3755.9051
370191AOil Bath Wheel Seal3.3124.5010.605
370192AOil Bath Wheel Seal4.56.4410.937
370195AOil Bath Wheel Seal4.8756.0010.625
370198AOil Bath Wheel Seal4.045.1220.945


Package & Delivery

KDIK Roll Package

KDIK Roll Package

KDIK Plastic Bag

KDIK Plastic Bag

KDIK Carton Box

KDIK Carton Box

Scotseal family interchanges

Scotseal family interchanges Stemco
Scotseal
PlusXL		Scotseal
Classic		National
3700 Series		Stemco Guard wheel setsNational
3800 Series		Stemco
(seal w/ring)		VoyagerDiscover
23590
370199A


383-0175
2875928758370150A308-0866
(2164/1008)383-0166
29400
370211A


383-0176
3438434387370047A309-0935
(2728/1728)




392-9035
(2057/1062)

3497134975370132A308-0863
(2721/1721)




382-8063
(2133/1036)

3499435000370169A392-9036
(2057/1063)




392-9111



3505835066370001A308-0836380001A(2702/1702)383-0136383-0236



382-8036
(2036/1036)


36358/36365370011A382-8071
(2216/1034)383-0171

38750370024A309-0915
(2102/1501)393-0115



392-9099



3877638780370023A309-0912380023A(2707/1707)393-0112393-0212



392-9099
(2102/1501)

39426






3997939988370033A382-8039
(2039/1038)383-0139383-0239
456301456301wAR-12382-8023
(2039/1011)

4009140086370066A382-8001
(2086/1013)383-0101
4012940136370349A307-0713380036A(2704/1704)373-0113373-0213


370036A372-7098
(2109/1507)






(2109/1013)

4262742623370065A307-0723380065A(2705/1705)373-0123373-0223


376590A372-7099386590A(2023/1503)

4267342672370031A309-0904380031A(2718/1705)393-0104393-0204



392-9112
(2132/1515)




392-9130



4375443752370338A307-0744
(2709/1709)373-0144


370037A372-7095
(2118/1510)

4376143764370182A308-0864380048A(2711/1711)383-0164383-0264


370048A382-8064
(2137/1037)


43860370019A309-0965
(2713/1713)




392-9096
(2114/1508)

4491644922370124A308-0853
(2708/1708)383-0153



382-8053




44964/45010370178A392-9033



4509345099370022A309-0903380022A(2706/1706)393-0103393-0203



392-9094
(2129/1511)

4509545103370131A308-0855380131A(2710/1710)383-0156



308-0856
(2710/1706)




382-8056



4515745160370021A309-0964
(2712/1712)




392-9088
(2113/1517)

4630046305370025A307-0743380025A(2701/1701)373-0143373-0243



372-7097386002A(2110/1504)






(2110/1048)

47691/4769247697370003A309-0973380003A(2703/1703)393-0173393-0273



392-9131
(2106/1502)

4800248000370005A309-0960
(2717/1761)



370173A392-9081
(2009/1079)


48690370195A392-9054

393-0134


Scotseal family popular applications
Scotseal PlusXLScotseal ClassicAxleApplication
23590---Front AxleGMC, Isuzu (8,000#)
2875928758Front AxleArvin Meritor/Rockwell, Dexter, International, Spicer (6,000#; 7,500#)
29400---Front AxleGMC, Isuzu (11,000#)
3438434387Drive AxleFord, Navistar, Arvin Meritor/Rockwell, Eaton
3497134975Front AxleFord, Arvin Meritor/Rockwell
3499435000Drive AxleEaton, Navistar
3505835066Front AxleFord, Navistar, Arvin Meritor/Rockwell, Kenworth, Peterbilt, Freightliner, Volvo-White (12,000#)
---36358/36365Front AxleGMC, Mack
---38750Drive AxleEaton, GMC (incl. Chevrolet), Arvin Meritor/Rockwell, Dana, Spicer (17,000# single; 34,000# tandem)
3877638780Drive AxleFord, Navistar, Arvin Meritor/Rockwell, Eaton, Volvo-White (34,000#)
39426---Front AxleVolvo-White
39979 w/45630139988 w/456301Front AxleMack (12,000#)
4009140086Front AxleArvin Meritor/Rockwell Transit
4012940136Trailer AxleDana Spicer, Arvin Meritor/Rockwell, Eaton, Standard Forge (19,000#)
4262742623Trailer Axle (Pro-Par)Fruehauf, Arvin Meritor/Rockwell (TP Series)
4267342672Drive AxleMack (44,000#)
4375443752Trailer AxleArvin Meritor/Rockwell, Eaton (20,000#)
4376143764Front AxleFord, Navistar, Kenworth, Arvin Meritor/Rockwell, Volvo-White, Mack, GMC (16,000#)
---43860Drive AxleEaton, Ford, GMC, Navistar, Arvin Meritor/Rockwell, Volvo-White
4491644922Front AxleNavistar
---44964/45010Drive AxleGMC Coach, Arvin Meritor/Rockwell
4509345099Drive AxleMack (34,000#; 38,000#)
4509545103Front AxleNavistar (9,000#)
4515745160Drive AxleEaton, Ford, GMC, Navistar, Mack, Arvin Meritor/Rockwell
4630046305Trailer AxleDana Spicer, Arvin Meritor/Rockwell, Eaton, Standard Forge (22,500#)
47691/4769247697Drive AxleFord, Navistar, Arvin Meritor/Rockwell, Eaton, Kenworth, Peterbilt, Freightliner, Volvo-White (38,000#; 46,000#)
4800248000Drive AxleMack, GM
48690---Drive AxleMeritor Transit


Our Advantages & Service

1. We cooperate with first-class raw material suppliers in China and abroad,using the best raw materials.High quality NBR,silicon and FKM materials are imported from USA,Germany and Southeast Asia.

2. Top quality custom rubber products that can completely meet your needs.

3. Fast production & in-time delivery that never delay your project and usage.

4. One-top custom service and value-added service to save your time and cost.

5. OEM/ODM Services are available.We can design and produce various Non-standard Rubber Parts according to your PDF,3D or STEP drawing files.

6. All of rubber finished products are 100% inspected before shipment.

7. Professional technicians with more than 30 years experience.

1. Custom manufacturing: This involves producing specialized oil seals to meet specific application requirements.Manufacturing seals from a variety of material.

2. Creating custom packaging:Providing kitting, color coding, and barcoding services.

3. Maintenance:Some services may include preventative maintenance to prolong the life of seals.

4. Leak repair:Specialized services may offer leak repair solutions.

5. Flexible production mode: It can not only undertake large-scale orders but also adapt to small-batch and multi-variety customized demands through a flexible production line.

6. Main application fields of oil seals: Automobiles, Agricultural Machinery, Construction Machinery.
