Oil Seal Manufacturing Process and Steps

Oil seals (also known as rotary shaft seals) are critical components used to prevent lubricant leakage and block contaminants in rotating machinery. The manufacturing process involves several key steps:

1. Material Preparation

· Rubber Compounds: Common materials include Nitrile Rubber (NBR), Fluoroelastomer (FKM), and Silicone Rubber (VMQ), selected based on oil resistance, temperature range, and application.

· Metal Case/Shell: Typically made from low-carbon steel or stainless steel for structural support.

· Garter Spring (if applicable): Stainless steel spring to enhance lip sealing pressure.

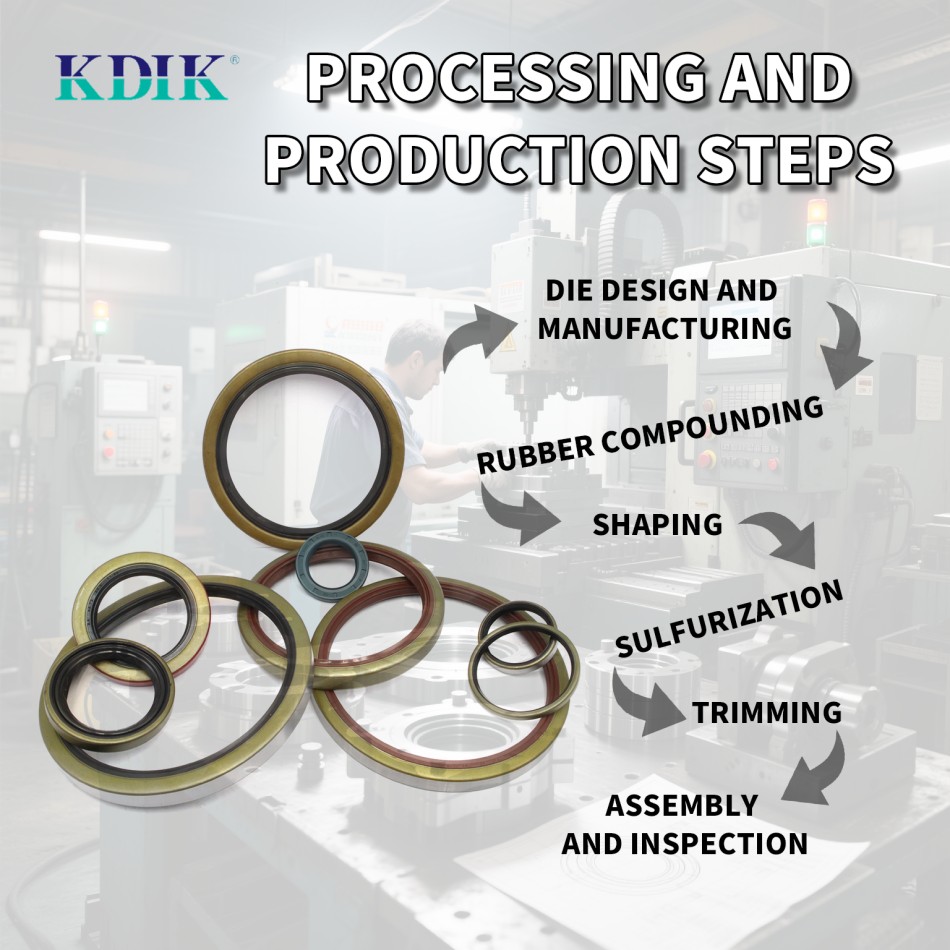

2. Production Process Steps

(1) Metal Case Preparation

· Stamping/Pressing: Metal sheets are pressed into the desired ring shape.

· Surface Treatment: Sandblasting, phosphating, or electroplating (e.g., zinc coating) to improve rubber adhesion.

(2) Rubber Mixing (Compounding)

· Raw rubber is mixed with additives (carbon black, sulfur, anti-aging agents) using a Banbury mixer or two-roll mill to achieve uniform compound.

(3) Pre-forming

· The rubber compound is calendered into sheets or extruded into strips, then cut into pre-forms matching the seal design.

(4) Molding & Vulcanization

· Compression Molding: The metal case and rubber pre-form are placed in a heated mold (150–180°C) under high pressure to bond rubber to metal.

· Injection Molding (for high-volume production): Rubber is injected into a mold containing the metal case for faster curing.

(5) Spring Assembly (if required)

· A stainless steel garter spring is inserted into the lip groove to maintain sealing force.

(6) Post-Processing

· Trimming: Excess rubber (flash) is removed manually or via automated trimming.

· Surface Coating (Optional): PTFE (Teflon) coating on the lip to reduce friction.

· Anti-stick Treatment: Prevents seals from sticking during storage.

(7) Quality Inspection & Testing

· Visual Inspection: Checks for defects (cracks, bubbles, uneven surfaces).

· Dimensional Check: Measures inner/outer diameter, thickness, and lip geometry.

· Performance Testing:

o Leakage Test: Simulates operating conditions to verify sealing.

o Durability Test: High-speed rotation lifespan assessment.

o Fluid Resistance Test: Exposure to oils/chemicals to evaluate swelling/cracking.

(8) Packaging

· Seals are coated with anti-rust oil, individually packed (to avoid lip deformation), and boxed.

3. Key Process Control Points

· Vulcanization Parameters: Time, temperature, and pressure affect rubber properties.

· Lip Precision: Angle, surface finish, and spring tension impact sealing efficiency.

· Bond Strength: Rubber-to-metal adhesion must pass peel tests.

4. Specialized Oil Seal Types

· Double-Lip Seals: Include a dust lip; may require secondary vulcanization.

· PTFE Seals: Machined or molded for high-chemical resistance.

5. Common Defects & Solutions

· Leakage: Caused by lip wear or spring failure; improve material or design.

· Premature Aging: Due to improper rubber formulation or curing.

By maintaining strict process controls and testing, oil seals ensure reliable performance in automotive, industrial, and aerospace applications.
