Place of Origin: Hebei, China
Brand Name: KDIK/OEM/ODM
Type:TB
OEM: 1-09625-063-0,MT119305
Material: nitrile rubber (NBR)/FKM
Dimension
Inner diameter: 68mm
Outer diameter : 90mm
Height 1: 12mm
Suitable for:automotive applications like engines and transmissions, as well as industrial machinery such as gearboxes, pumps, and electric motors.
Car Model:MITSUBISHI
Additional Details
Feature: Factory/Manufacturer direct sale
TYpe: MC TC TB SB SC TA TG TCN TCV COMBI CASSETTE
MOQ: 100pcs
Sample: Freely supplied
Product Data Sheet
Product Description:

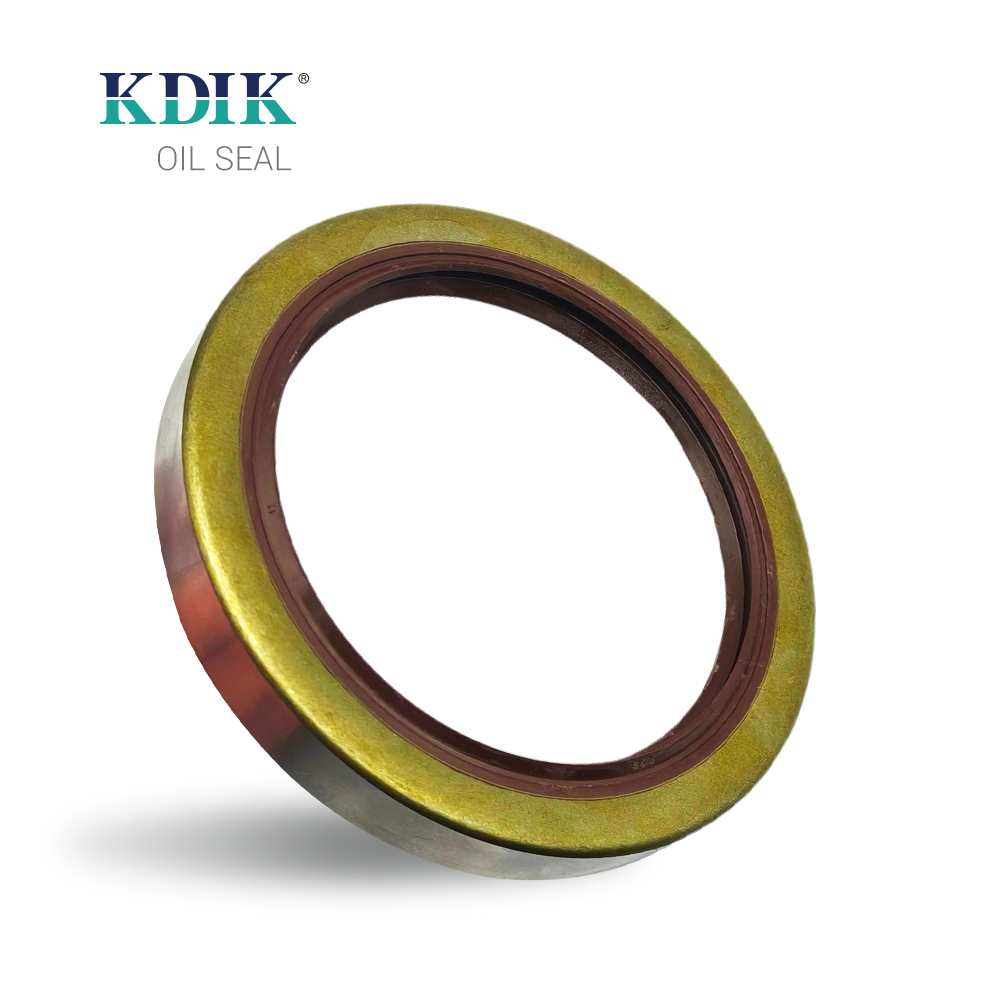

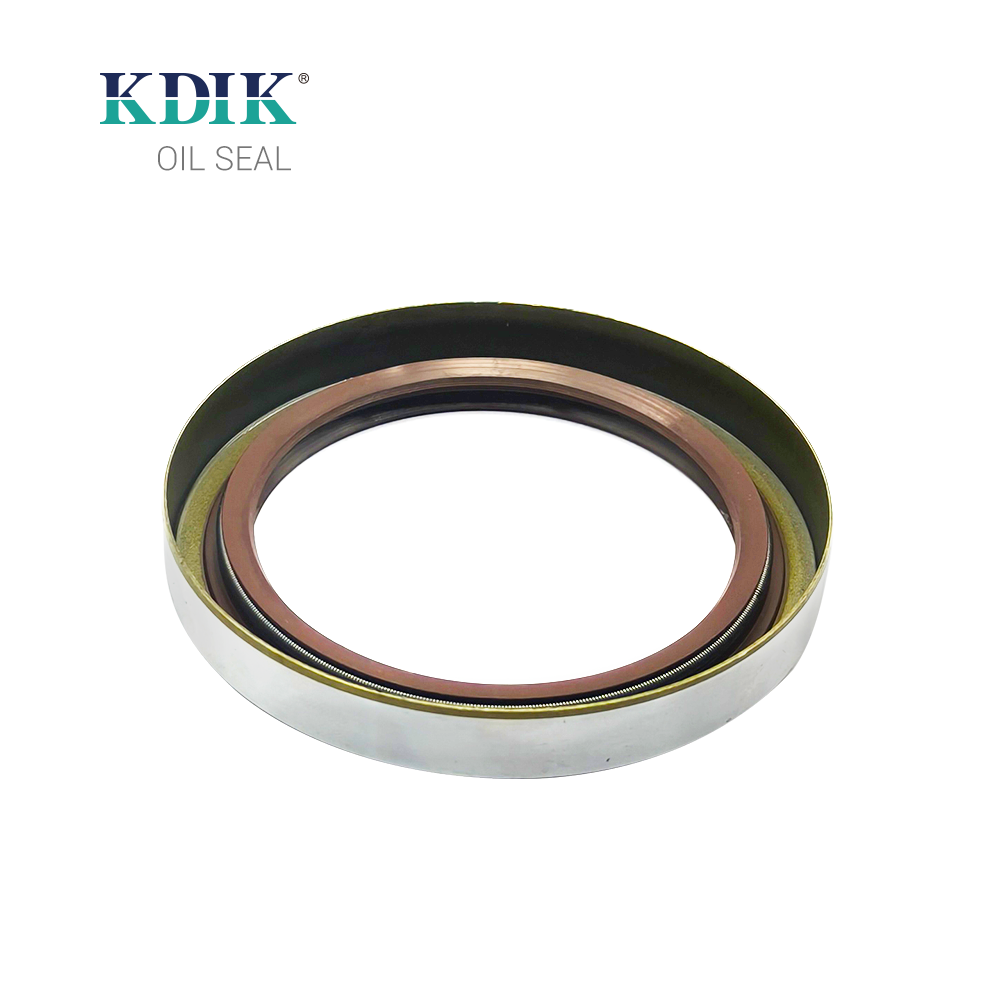

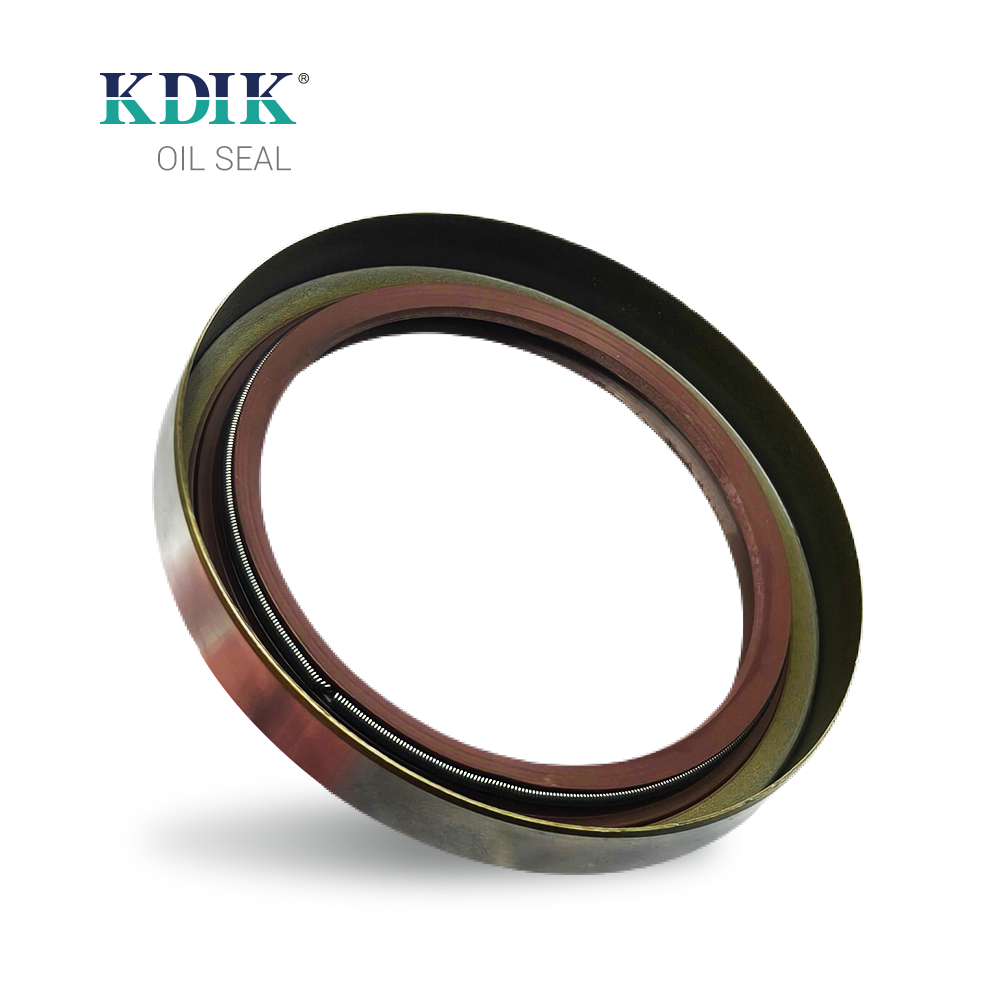

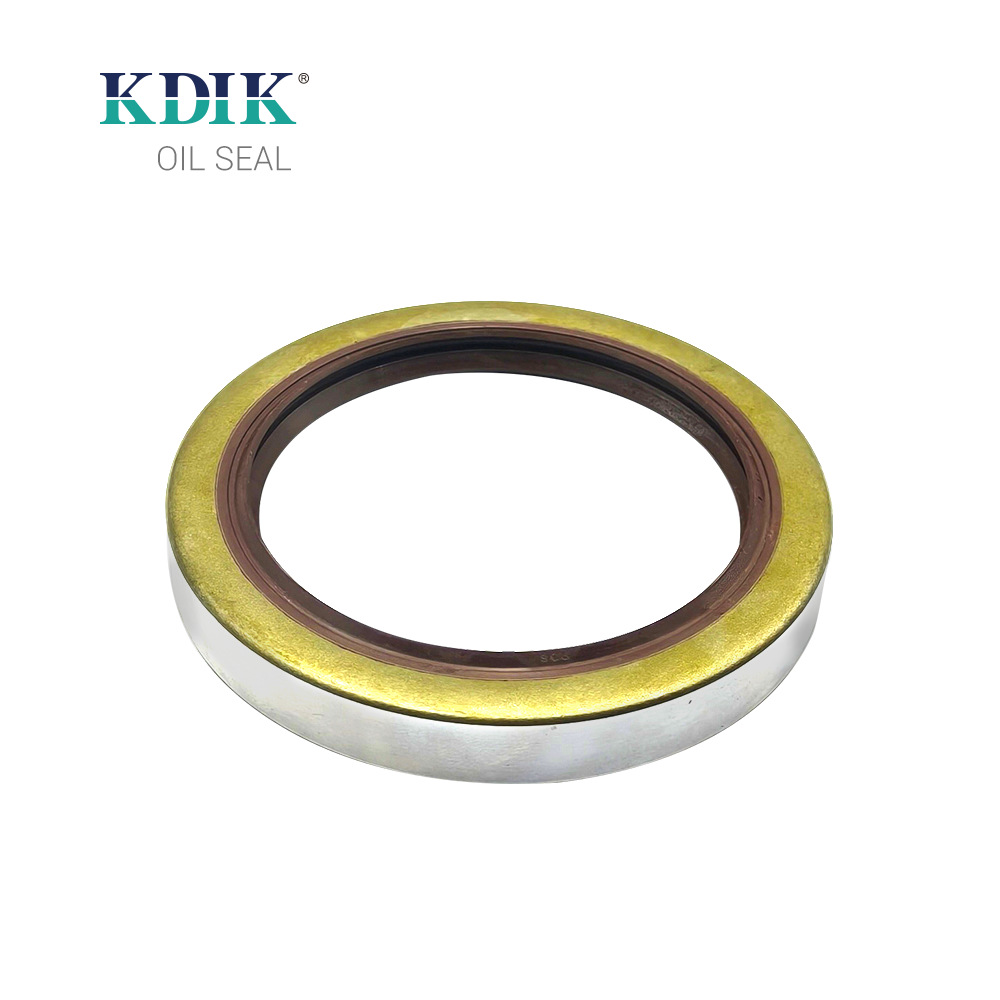

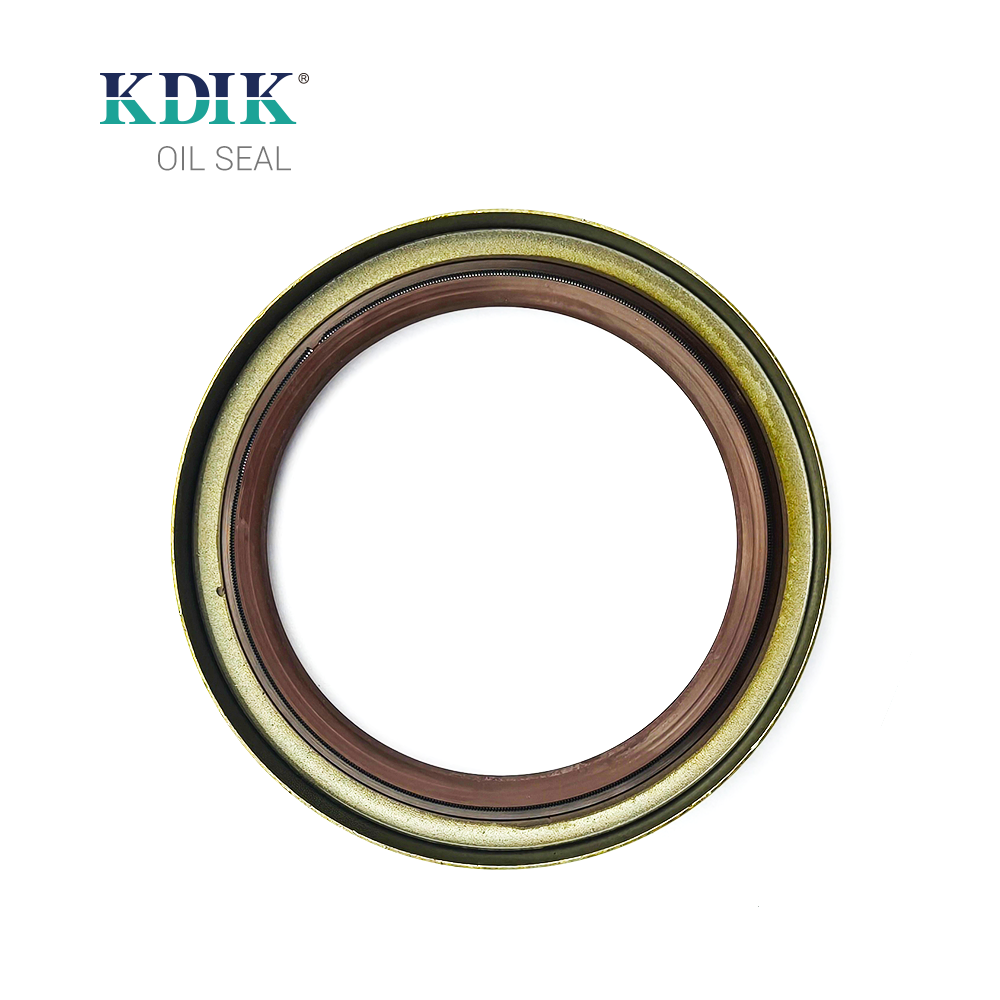

TB oil seal
Material:Seal Lip: Common materials include Nitrile (NBR), Fluorocarbon (FKM), Polyacrylate (ACM), and Silicone (VMQ).
Metal Casing: Steel or stainless steel.
Pressure Limit: Up to0.03MPa (approximately0.3kgf/cm2squared
Surface Speed: Can handle up to2000ft/m (approx.610m/min).
Temperature Range: Varies by material; for example, FKM material can handle a range of−22∘
Key Benefits
Leak prevention: Spring-loaded primary lip maintains consistent contact on the shaft.
Contamination resistance: Dust lip helps keep out dirt and moisture.
Durable under dynamic conditions: Designed for continuous rotation within rated speed and pressure.
Material fit: NBR is suitable for common oils; choose FKM for higher heat/chemicals.
Temperature capable: Rated -30 to 100 °C (verify per application).
