Place of Origin: Hebei, China
Brand Name: KDIK/OEM/ODM
Type:HTBWYR
OEM: 710085,1096255690,6408,1-09625-569-0
Material: nitrile rubber (NBR)/FKM
Dimension
Inner diameter: 95mm
Outer diameter : 132mm
Height 1: 12/22mm
Suitable for:automotive applications like engines and transmissions, as well as industrial machinery such as gearboxes, pumps, and electric motors.
Additional Details
Feature: Factory/Manufacturer direct sale
TYpe: MC TC TB SB SC TA TG TCN TCV COMBI CASSETTE
MOQ: 100pcs
Sample: Freely supplied
Product Data Sheet
Product Description:

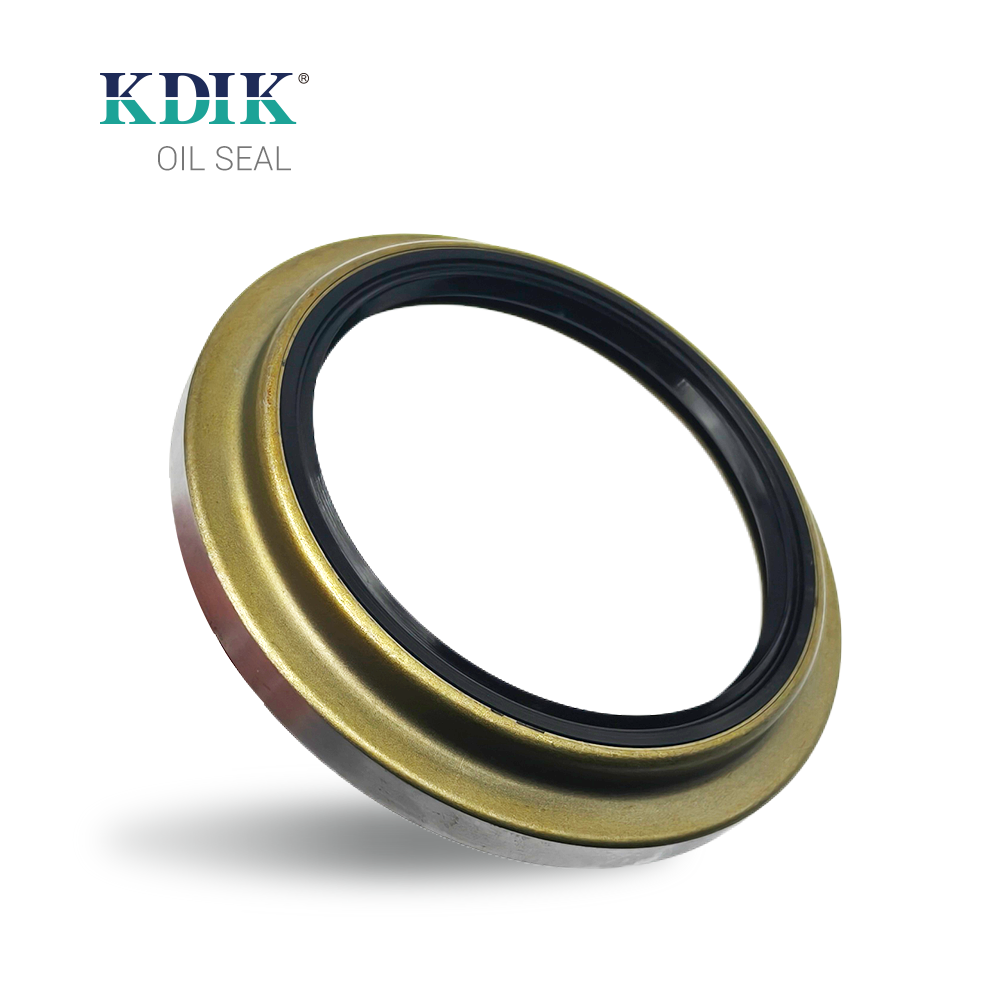

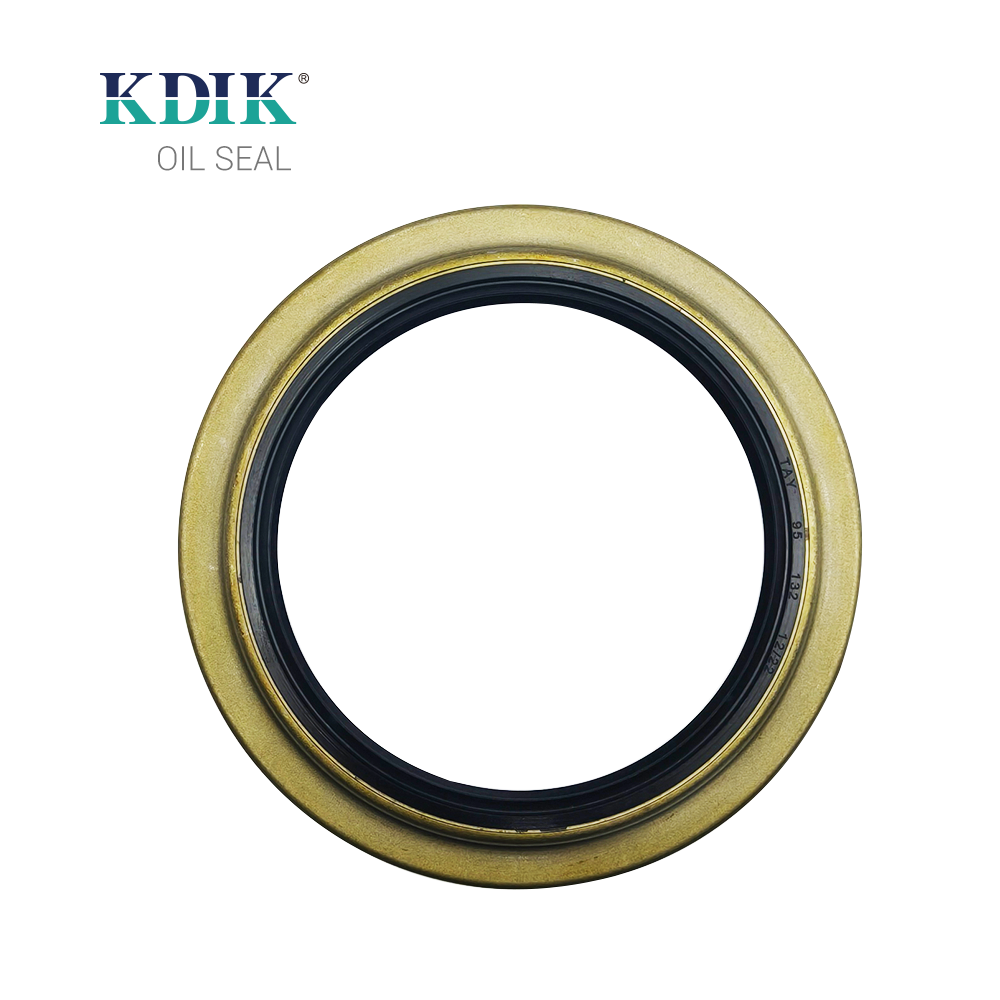

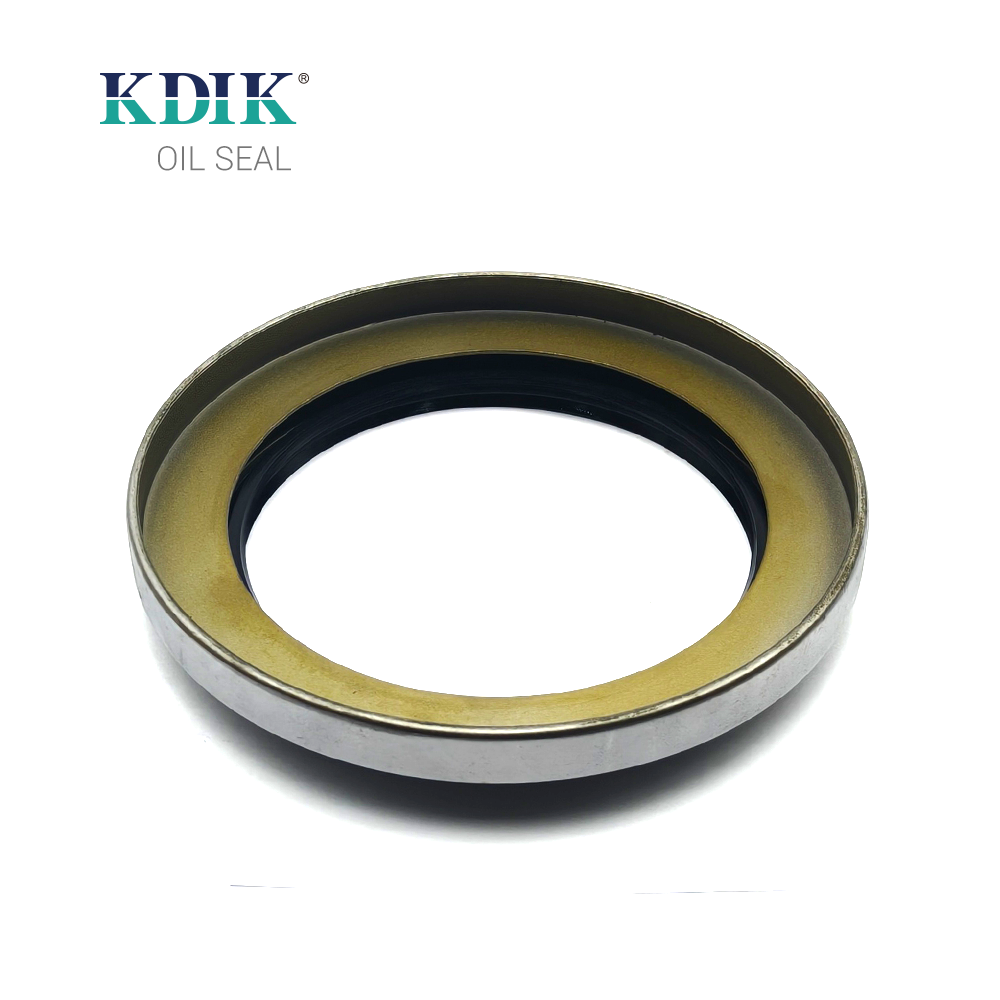

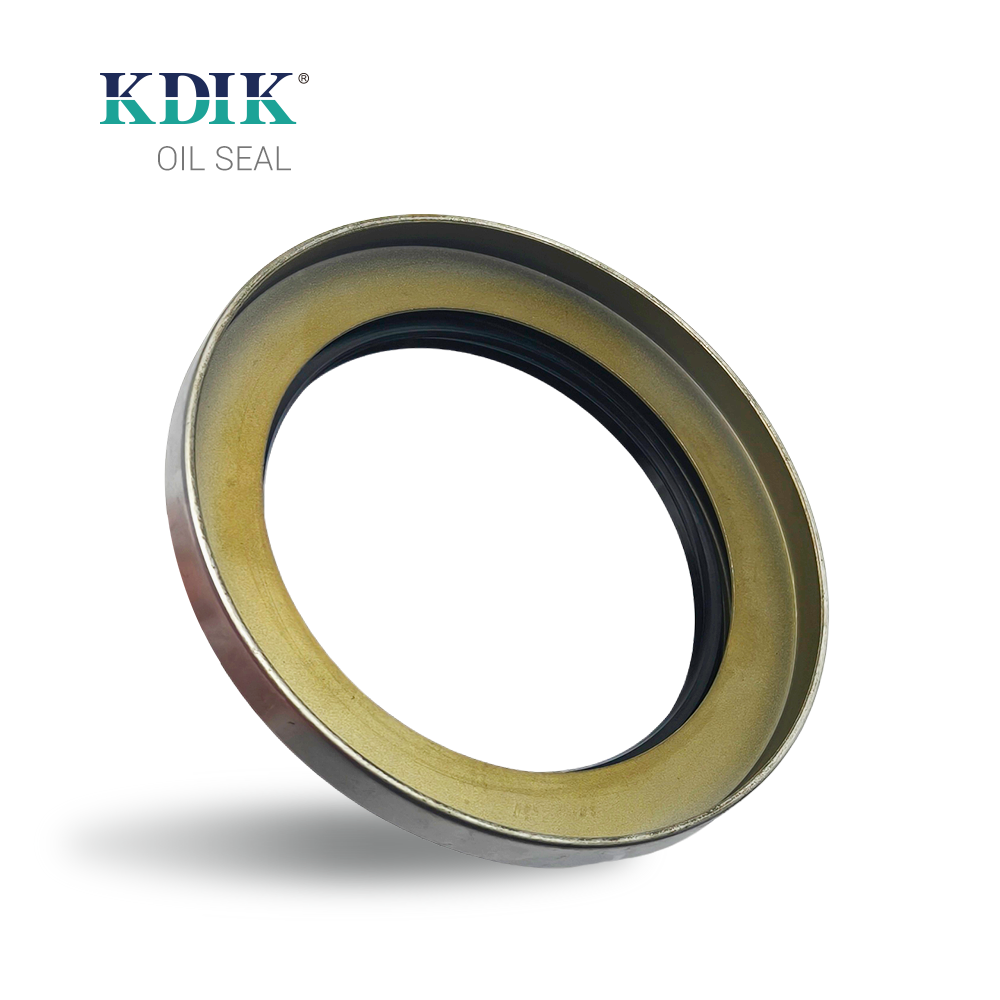

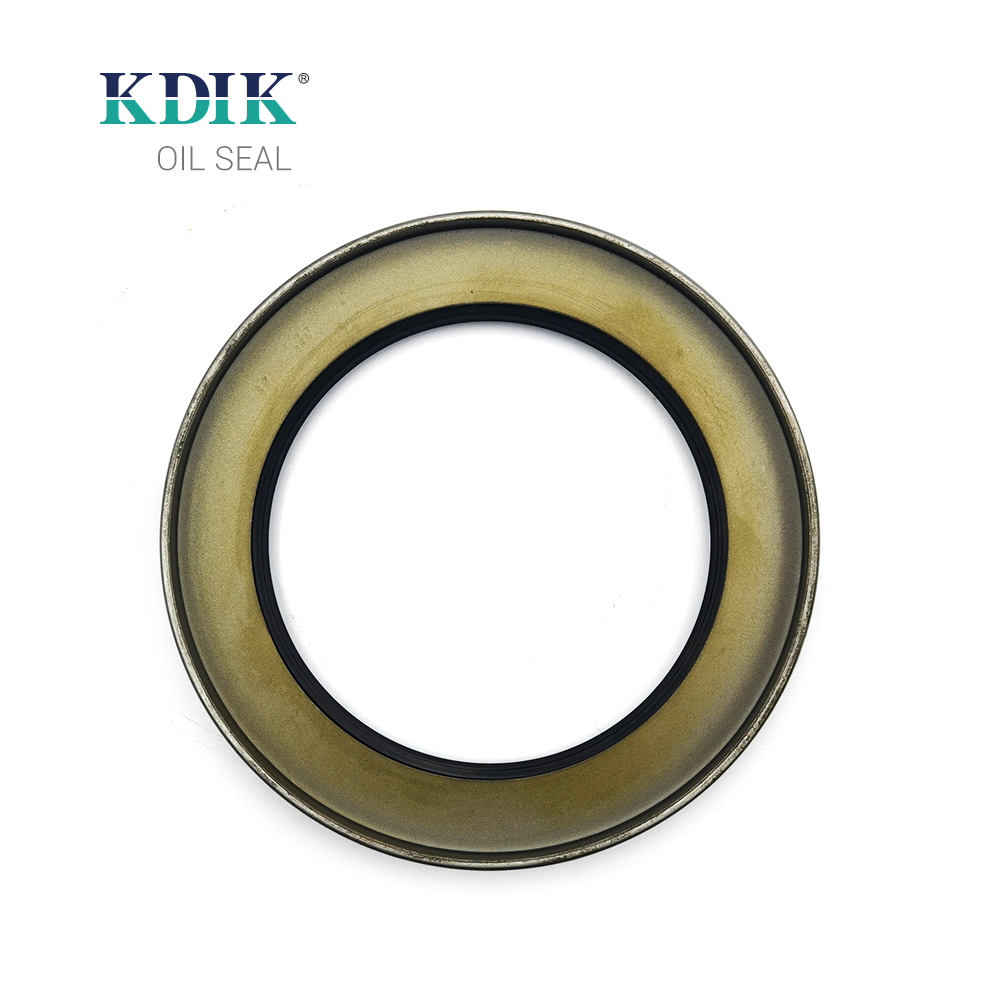

Oil Seal
Material:NBR with a spring-loaded double lip for tight sealing. (Nitrile Sealing Lip and Carbon Steel Spring)
Function:Built to block oil, grease, and dirt in rotating shafts for smooth, long-lasting performance.
Type: TAY
Size: 95*132*12/22mm (ID × OD × Width)
Spring: Stainless steel garter spring
Temperature: -30 to 225 °C
Speed (max): 3000 rpm
Pressure (max): 5.0 bar
Applications: gearboxes, pumps, small mo to rs, automotive machinery and pressure
Advantage
SUPERIOR QUALITY and DURABILITY: KDIK oil seals are engineered with sturdy carbon steel spring and high strength nitrile rubber for reliable and long-lasting performance. This inner rubber cover seal is lightweight and not easy to age.
SEAL OFF LEAKAGE and DIRT: No more getting stressed up by spills from your rotary elements! Crafted with rubber, garter spring, and inner metal case, this metric nitrile oil seal effectively prevents the leakage of lubricants and prevents the entry of dust and dirt into your precious machine.
GREAT FIT: The perfect double lip oil seal for automotive, motorcycle crankshafts, differentials, camshafts, axle shafts, machinery, water pumps, valves, front and rear wheels, and vehicle engines. Our oil seal will fit perfectly everywhere you need it.
HIGH-TEMPERATURE RESISTANCE: With its 70A Nitrile Butadiene Rubber cover material design, this spring loaded metric rotary shaft will withstand temperatures from -40℉ to 226℉
More details please contact laiya@china-oilseals.com
