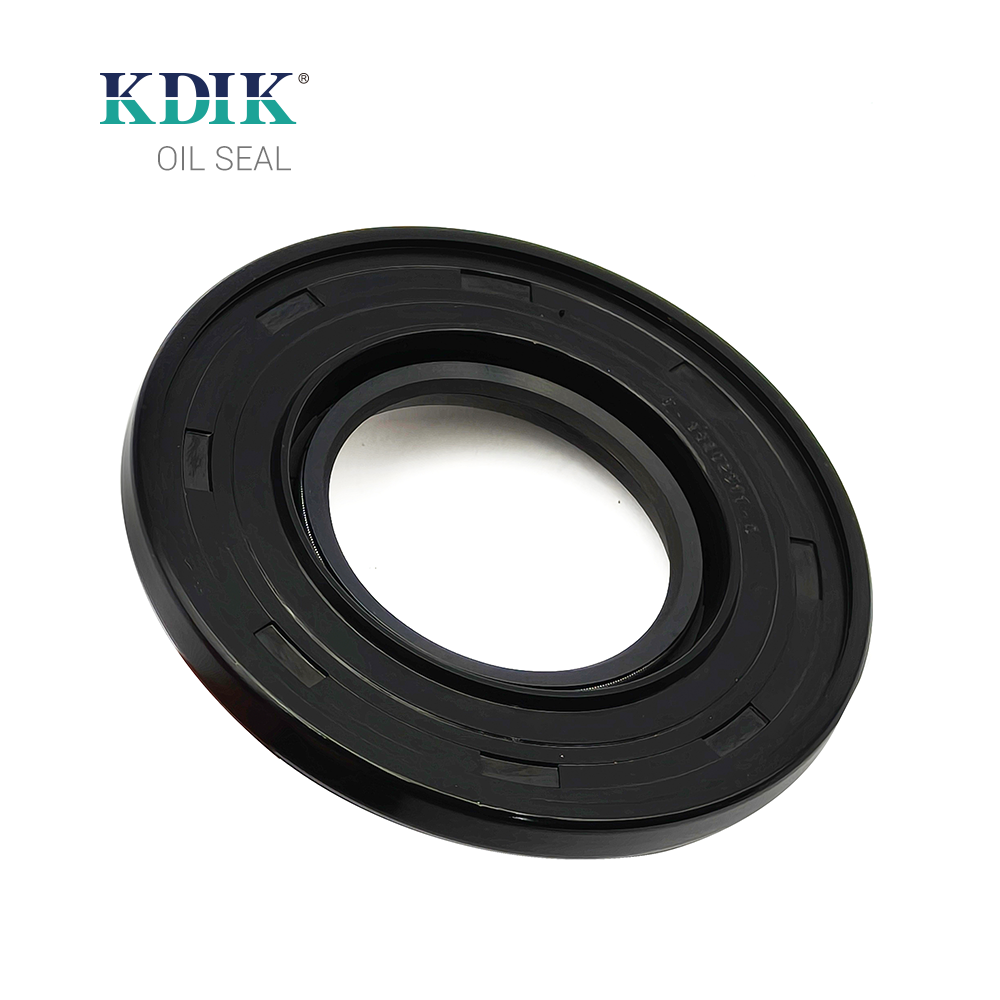

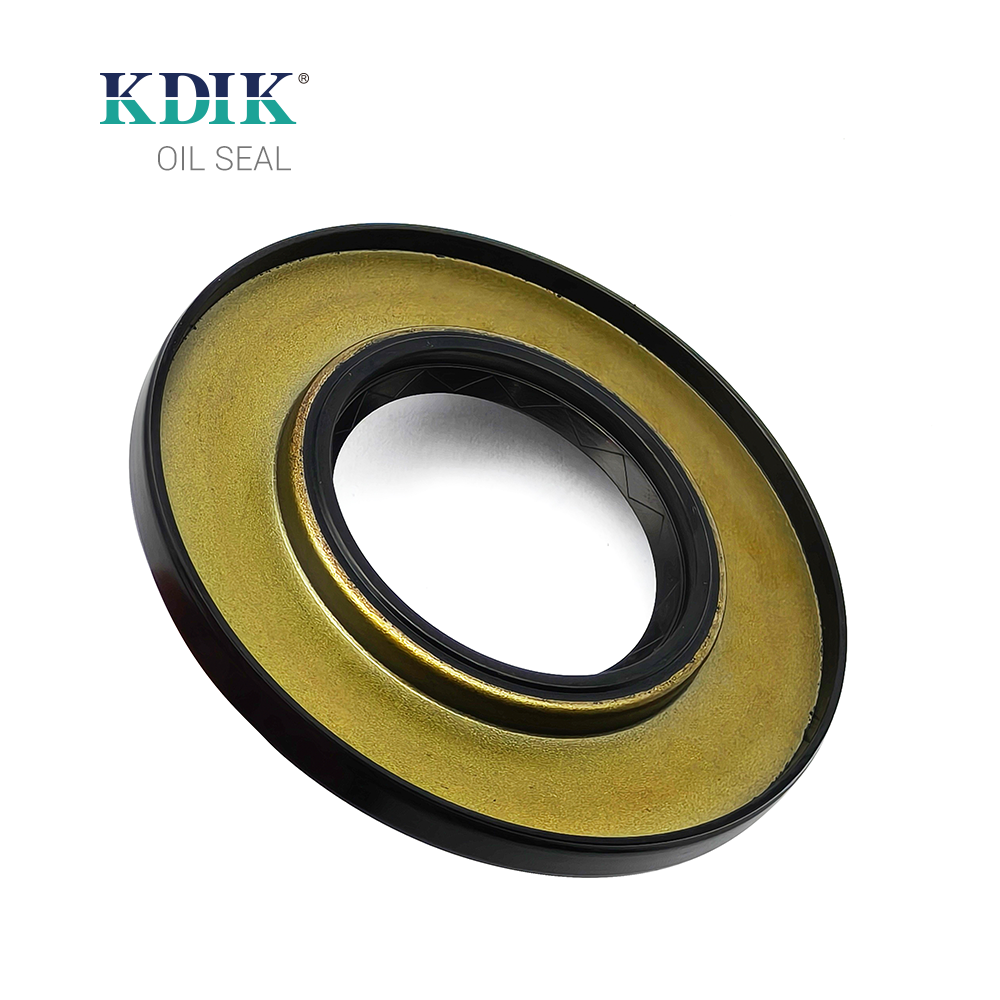

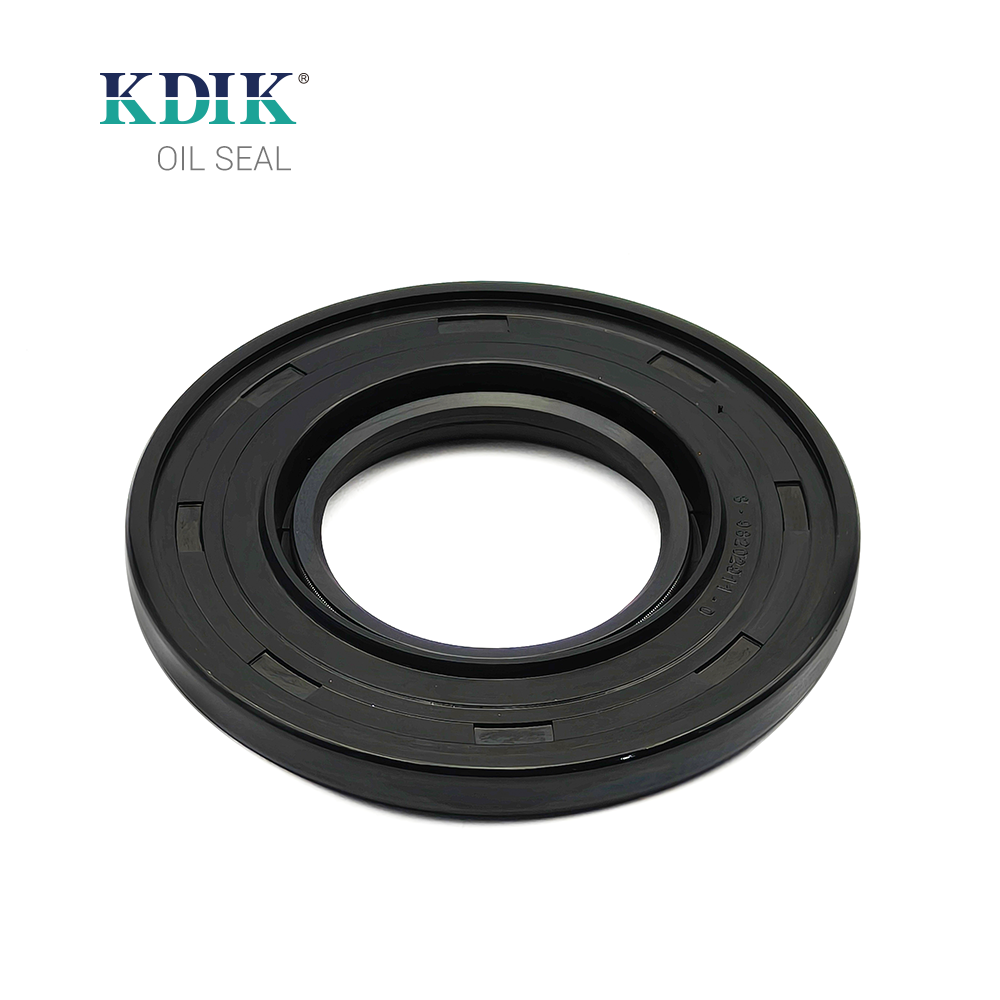

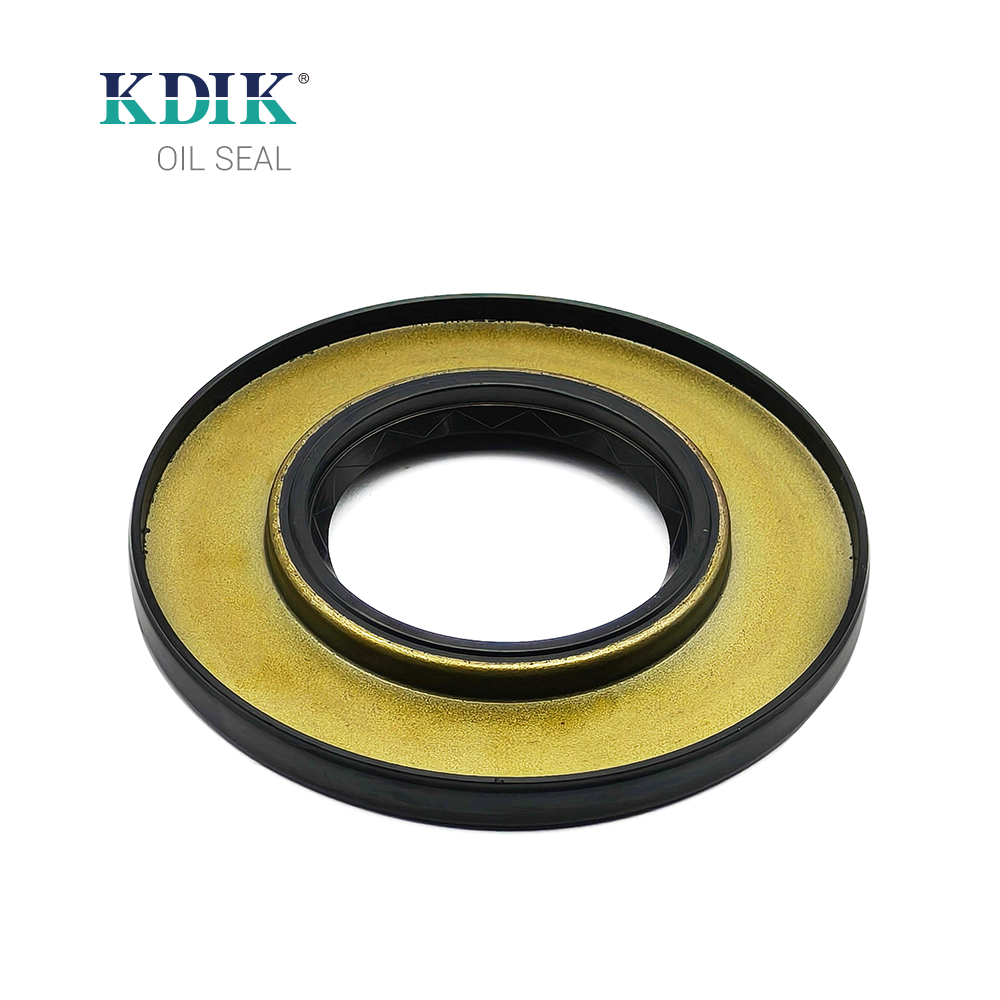

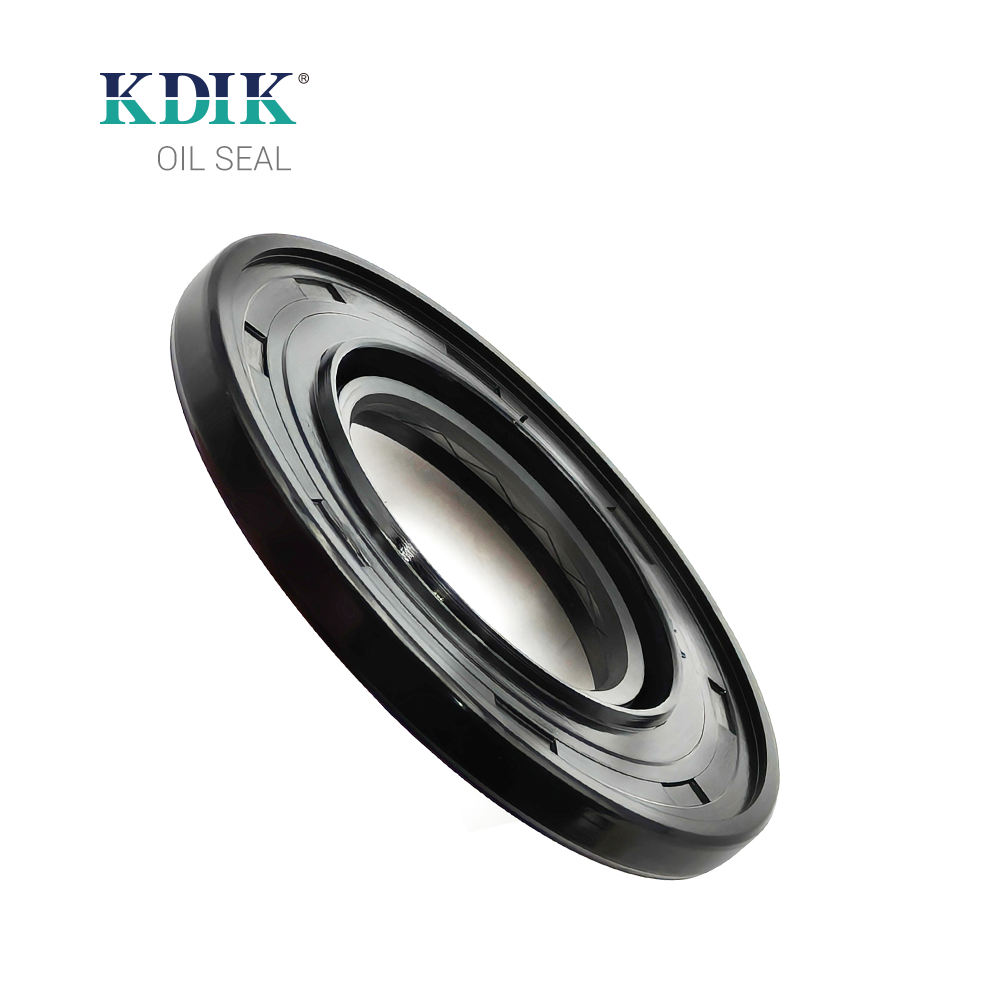

Product name:Wheel Hub Oil seal
Place of Origin: Hebei, China
Brand Name: KDIK/OEM/ODM
OE No:. BZZ626A 8943363151 9099242420 8-98202911-0
Size: 46*94.5*8/10MM
Material: NBR/VITON/FKM/SILICONE/HNBR/EPDM/PTFE/ACM/FLET ect
Color: Black/Brown/Blue/Customized
Certificate: ISO-9001/ IATF-16949
H/S Code: 8487900000
Application for: Auto Parts / Agricultural Machines / Construction Machinery
Car Model: Suzuki Grand Vitara FT
Additional Details
Feature: FACTORY /Manufacturer direct sale
Type: TC TB SB SC TA TG TCN TCV COMBI CASSETTE
MOQ: 50pcs
Sample: Freely Supplied
Product Data Sheet
Product Description:
Product name:Wheel Hub Oil seal
Place of Origin: Hebei, China
Brand Name: KDIK/OEM/ODM
OE No:. BZZ626A 8943363151 9099242420 8-98202911-0
Size: 46*94.5*8/10MM
Material: NBR/VITON/FKM/SILICONE/HNBR/EPDM/PTFE/ACM/FLET ect
Color: Black/Brown/Blue/Customized
Certificate: ISO-9001/ IATF-16949
H/S Code: 8487900000
Application for: Auto Parts / Agricultural Machines / Construction Machinery
Car Model: Suzuki Grand Vitara FT
Sizes Reference
| Transaxle (ATM) | Sub Model / Engine | OEM | Payen No. | Size | Material |
| Differential Side (Front) (LH) | RB21S | 27431-60G10 | NA5414 | 35x54x9.5x13.5 | ACM |
| Differential Side (Front) (RH) | RB21S | 27441-60G10 | NA5416 | 34x58x9.5x13 | ACM |
| Rear (Inner & Outer) | RA21S,RB21S,RC51S,RD51S:4WD | 43431-60B20 | NJ199 | 49x62x8x11 | NBR |
| Camshaft | F5A 3 CYL (OHC) 543 cc | 09283-32002 | NJ336 | 32x47x8 | NBR |
| Camshaft | F5A 3 CYL (OHC) 543 cc | 09283-32022 | NJ336 | 32x47x8 | NBR |
| Camshaft | F5A 3 CYL (OHC) 543 cc | 09283-32016 | NJ336 | 32x47x8 | NBR |
| Camshaft | F5A 3 CYL (OHC) 543 cc | 09283-32003 | NJ336 | 32x47x8 | NBR |
| Camshaft | F5A,B:CA#,CC#,CL#,CN#,CM#,CP# | 09283-32038 | NJ377 | 32x47x6 | ACM |
| Camshaft | F8A 4 CYL (OHC) 797 cc | 09283-32025 | NJ336 | 32x47x8 | NBR |
| Camshaft | F8A 4 CYL (OHC) 797 cc | 96051420 | NJ336 | 32x47x8 | NBR |
| Crankshaft (Rear) | F5A 3 CYL (OHC) 543 cc | 09283-60005 | NJ337 | 60x80x8 | NBR |
| Crankshaft (Rear) | F5A 3 CYL (OHC) 543 cc | 09283-60003 | NJ337 | 60x80x8 | NBR |
| Differential Side (Front) (LH & RH) | CM#,CP#,CS# (4WD) | 27431-73B20 | NA5415 | 35x52x8 | ACM |
| Differential Side (Front) (LH & RH) | CA71V,72V | 27431-50A30 | NJ850 | 30x54x9 | NBR |
| Differential Side (Front) (LH & RH) | SS30V | 09283-35036 | NJ851 | 35x72x7.5x9.5 | NBR |
| Differential Side (Front) (LH) | CL#,CN#,CR#...TURBO | 09283-35037 | NJ761 | 35x62x9.5 | NBR |
| Input Shaft | CC#,CL#,CM#,CN#,CP#,CR#,CS# | 24151-73B01 | NJ758 | 20x35x5.5 | NBR |
| Front | SS30V,40V | 09283-44009 | NJ854 | 44x62x8x14 | NBR |
| Rear | CC71V,72V (4WD) | 09283-42008 | NJ052 | 42x55x7 | NBR |
| Clutch Side | CL11V,21V,CN11S,21S...TURBO | 09283-35025 | NJ761 | 35x62x9.5 | NBR |
| Clutch Side | CL11V,21V,CN11S,21S...TURBO | 96061932 | NJ761 | 35x62x9.5 | NBR |
Package
Advantage
1. We cooperate with first-class raw material suppliers in China and abroad,using the best raw materials.High quality NBR,silicon and FKM materials are imported from USA,Germany and Southeast Asia.
2. Top quality custom rubber products that can completely meet your needs.
3. Fast production & in-time delivery that never delay your project and usage.
4. One-top custom service and value-added service to save your time and cost.
5. OEM/ODM Services are available.We can design and produce various Non-standard Rubber Parts according to your PDF,3D or STEP drawing files.
6. All of rubber finished products are 100% inspected before shipment.
Custom manufacturing: This involves producing specialized oil seals to meet specific application requirements.Manufacturing seals from a variety of material
Creating custom packaging:Providing kitting, color coding, and barcoding services.
Maintenance:Some services may include preventative maintenance to prolong the life of seals.
Leak repair:Specialized services may offer leak repair solutions.
Related Products
All the performance indicators meet the industry standards. Some of the product indicators are superior to those ...
Our main product lines include: Automobile oil seal, Agricultural & Construction machinery oil seal, Wheel hub oil seals for tractors, Valve Stem Seals, Precision Rubber Parts, O-rings
