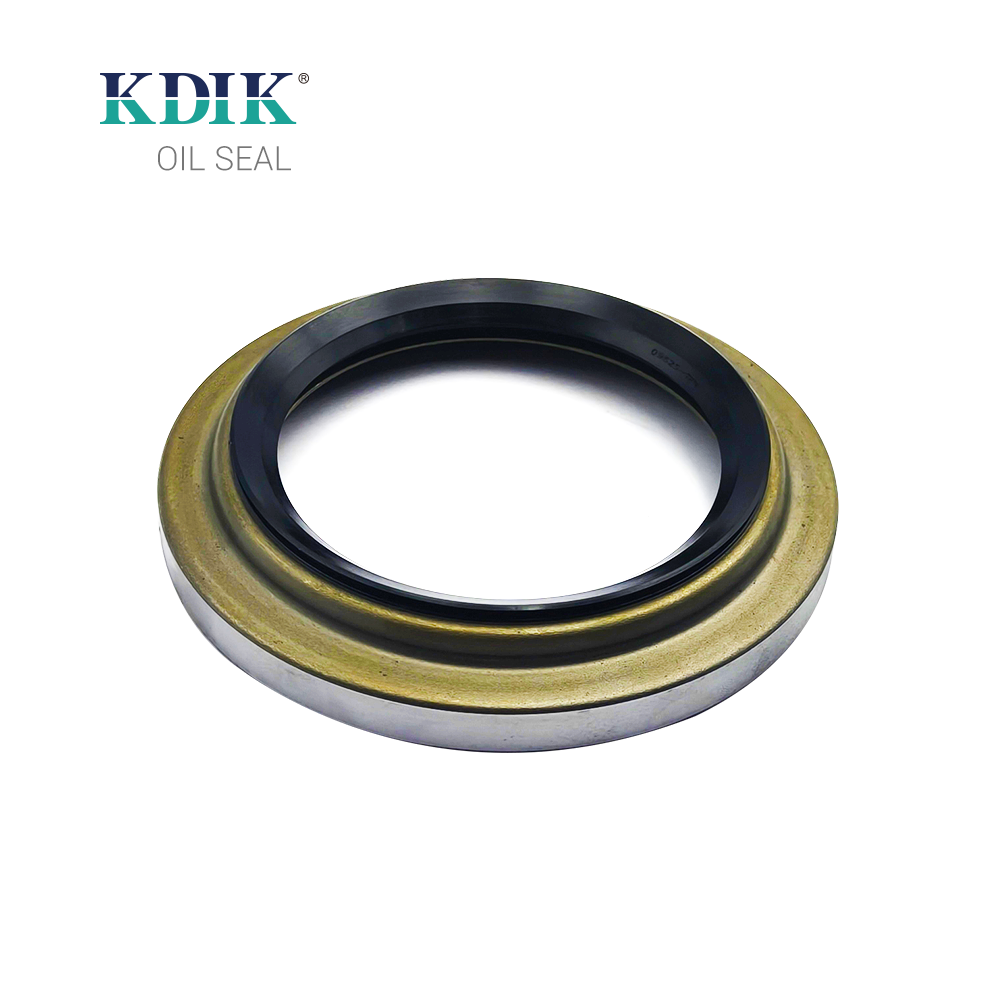

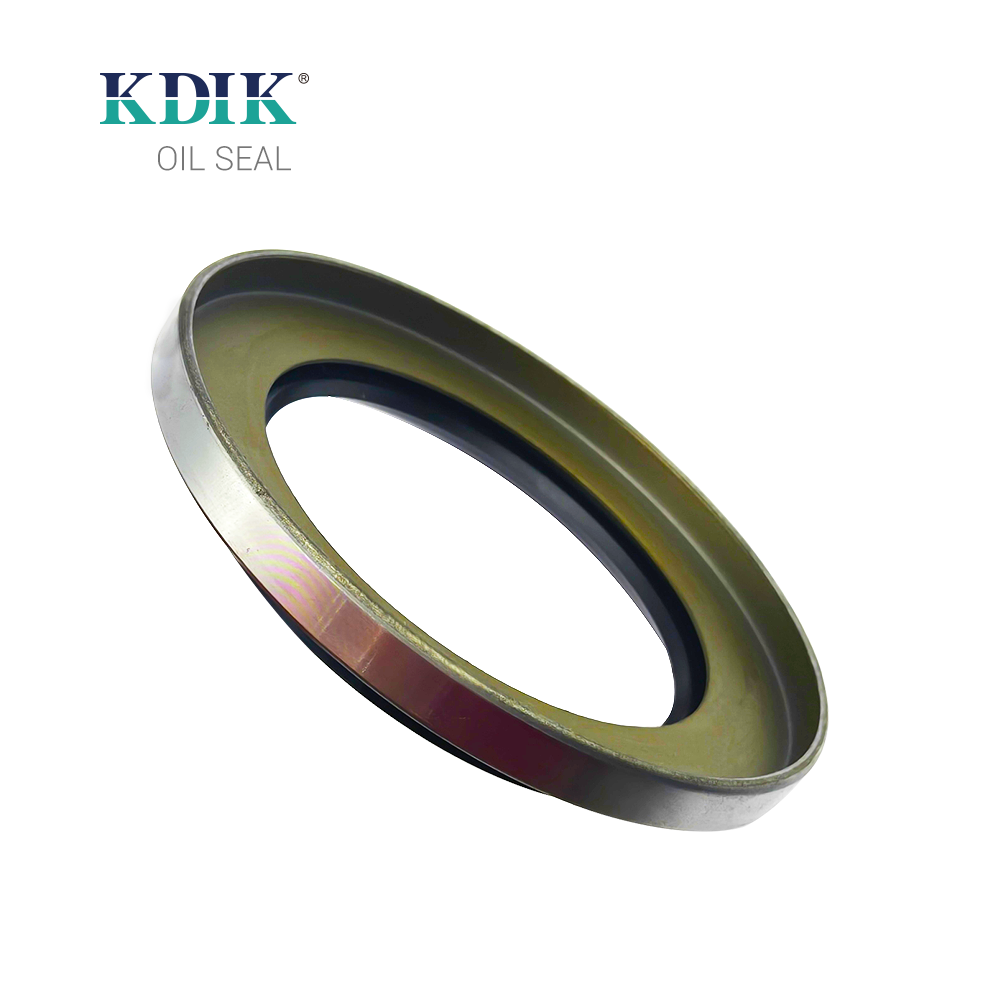

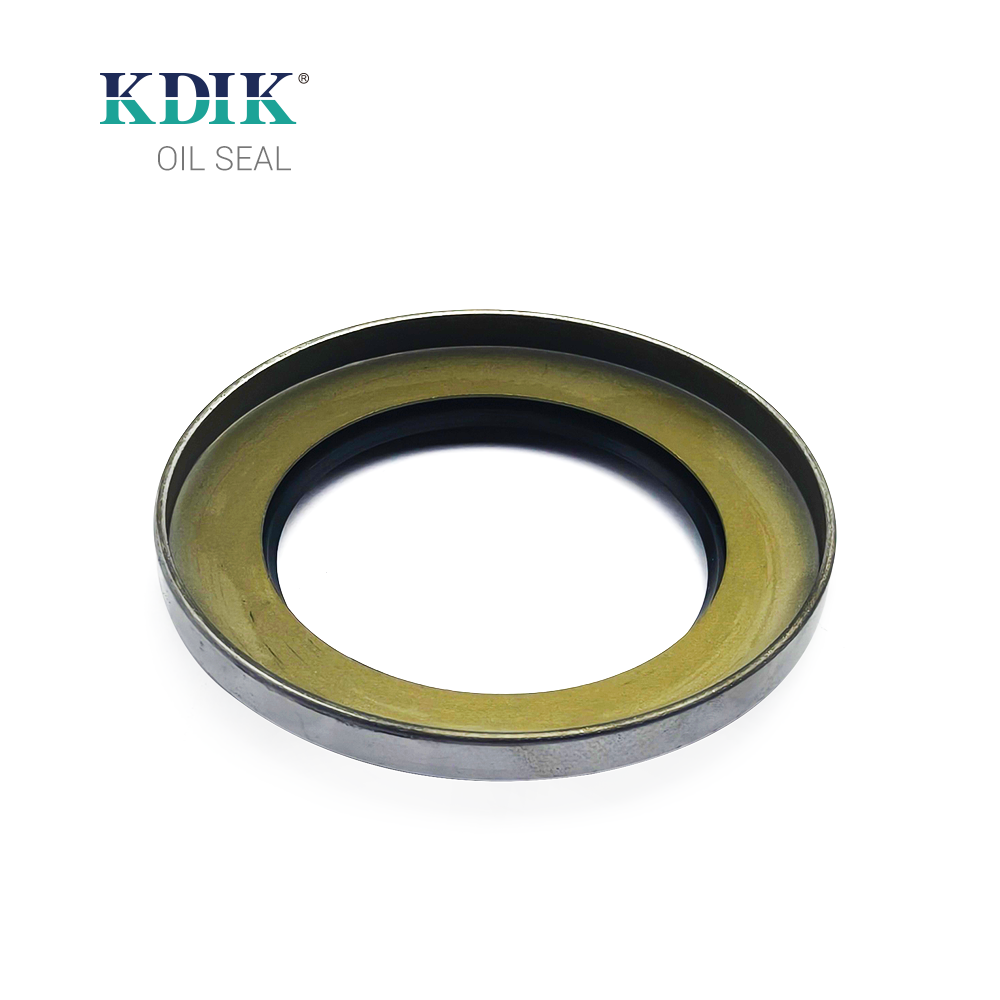

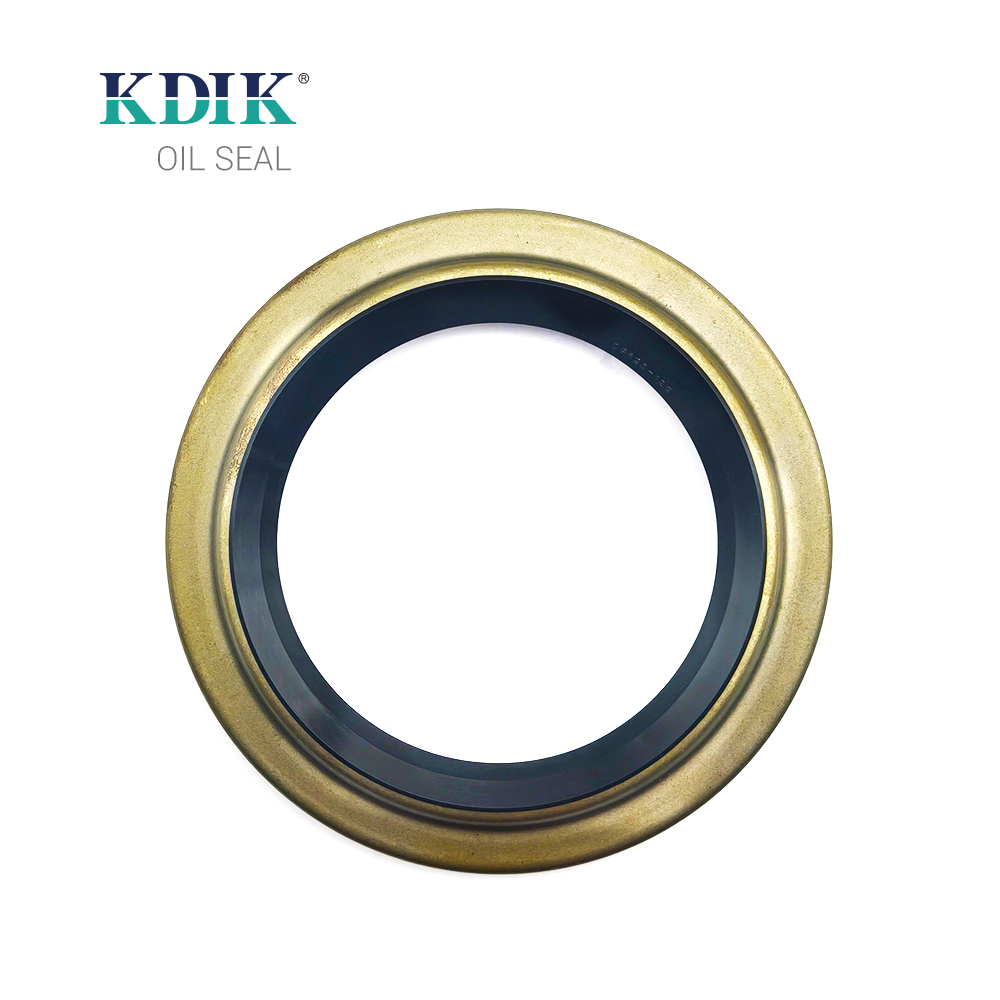

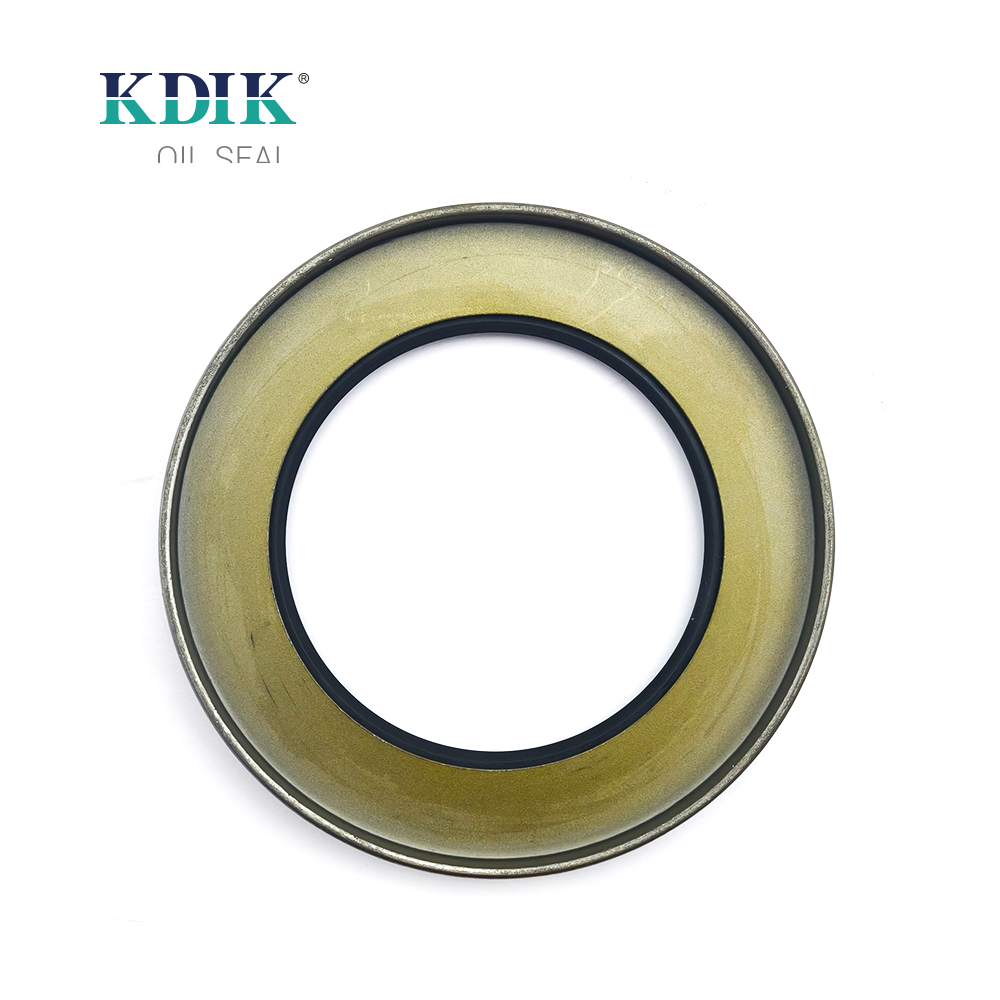

Place of Origin: Hebei, China
Brand Name: KDIK/OEM/ODM
Type:HTBWYR
OEM:1-09625-129-0
Material: nitrile rubber (NBR)/FKM
Dimension
Inner diameter: 86mm
Outer diameter : 128mm
Height 1: 11.5/16mm
Suitable for:automotive applications like engines and transmissions, as well as industrial machinery such as gearboxes, pumps, and electric motors.
Car Model:ISUZU CX-JCR, ROCKY 175, JCM 79, JCR, FTR 84, ROCKY 195
Additional Details
Feature: Factory/Manufacturer direct sale
TYpe: MC TC TB SB SC TA TG TCN TCV COMBI CASSETTE
MOQ: 100pcs
Sample: Freely supplied
Product Data Sheet
Product Description:
Place of Origin: Hebei, China
Brand Name: KDIK/OEM/ODM
Type:HTBWYR
OEM:1-09625-129-0
Material: nitrile rubber (NBR)/FKM
Dimension
Inner diameter: 86mm
Outer diameter : 128mm
Height 1: 11.5/16mm
Suitable for:automotive applications like engines and transmissions, as well as industrial machinery such as gearboxes, pumps, and electric motors.
Car Model:ISUZU CX-JCR, ROCKY 175, JCM 79, JCR, FTR 84, ROCKY 195
Sizes Reference
| Genuine Parts No. | NOK No. | Size |
| 5-0925-0290 | AE3512-E0 | TC-70-90-10 |
| 1-06925-149-0 | AH3743-E0 | HSCY 80 105 12 |
| 1-09623-196-0 | CO3587-N0 | OR-52-59-3.5 |
| 1-09625-004-0 | AZ5160-F0 | Y 214 231 14 |
| 1-09625-014-0 | BD0793-E0 | TB-133-153-10.5 |
| 1-09625-017-0 | AH7442-E0 | HTBWY 68 124 11.5 27 |
| 1-09625-020-0 | AD2775-I0 | TB3-48-62-9 |
| 1-09625-030-0 | AH7443-E0 | HTBWY 80 143 10 37 |
| 1-09625-041-0 | AD6920-F0 | TBP 120 140 10.5 |
| 1-09625-046-0 | AH3743-E0 | HSCY 80 105 12 |
| 1-09625-047-0 | AD7736-E0 | TBW 60 103 12 20 |
| 1-09625-062-0 | AE7529-P0 | TC 70 100 12 |
| 1-09625-063-0 | AD3459-E0 | TB2-68-90-12 |
| 1-09625-080-0 | AH3519-R0 | HTC9 70 92 12 18 |
| 1-09625-082-0 | AH7992-P0 | HTC 115 135 14 |
| 1-09625-105-0 | AH6912-P0 | HTC 128 148 14 |
| 1-09625-112-0 | AH4153-P0 | HTC 105 135 14 |
| 1-09625-113-0 | AC7240-E1 | SCY-10-16-7.8 |
| 1-09625-119-0 | AH8776-E0 | HTBW 80 127 16 24 |
| 1-09625-120-0 | AH8784-E0 | HTBW 60 88 9.5 16.5 |
| 1-09625-125-0 | AE4398-P0 | TC 125 155 12.5 |
| 1-09625-128-0 | AE3519-J0 | TC 70 92 12 |
| 1-09625-133-0 | AE1338-R0 | TC 25 45 11 |
| 1-09625-135-0 | AE3744-H0 | TC 80 105 13 |
| 1-09625-155-0 | AD2361-G0 | TB2-40-55-9 |
| 1-09625-173-0 | AD3200-G0 | TB2-60-77-12 |
| 1-09625-175-0 | AR1139-E0 | TC4 22 40 9 |
| 1-09625-181-0 | AD2775-H0 | TB-48-62-9 |
Package
Advantage
SUPERIOR QUALITY and DURABILITY: KDIK oil seals are engineered with sturdy carbon steel spring and high strength nitrile rubber for reliable and long-lasting performance. This inner rubber cover seal is lightweight and not easy to age.
SEAL OFF LEAKAGE and DIRT: No more getting stressed up by spills from your rotary elements! Crafted with rubber, garter spring, and inner metal case, this metric nitrile oil seal effectively prevents the leakage of lubricants and prevents the entry of dust and dirt into your precious machine.
GREAT FIT: The perfect double lip oil seal for automotive, motorcycle crankshafts, differentials, camshafts, axle shafts, machinery, water pumps, valves, front and rear wheels, and vehicle engines. Our oil seal will fit perfectly everywhere you need it.
HIGH-TEMPERATURE RESISTANCE: With its 70A Nitrile Butadiene Rubber cover material design, this spring loaded metric rotary shaft will withstand temperatures from -40℉ to 226℉
Services
Custom manufacturing: This involves producing specialized oil seals to meet specific application requirements.Manufacturing seals from a variety of material
Creating custom packaging:Providing kitting, color coding, and barcoding services.
Maintenance:Some services may include preventative maintenance to prolong the life of seals.
Leak repair:Specialized services may offer leak repair solutions
Related Products
All the performance indicators meet the industry standards. Some of the product indicators are superior to those ...
Our main product lines include: Automobile oil seal, Agricultural & Construction machinery oil seal, Wheel hub oil seals for tractors, Valve Stem Seals, Precision Rubber Parts, O-rings
