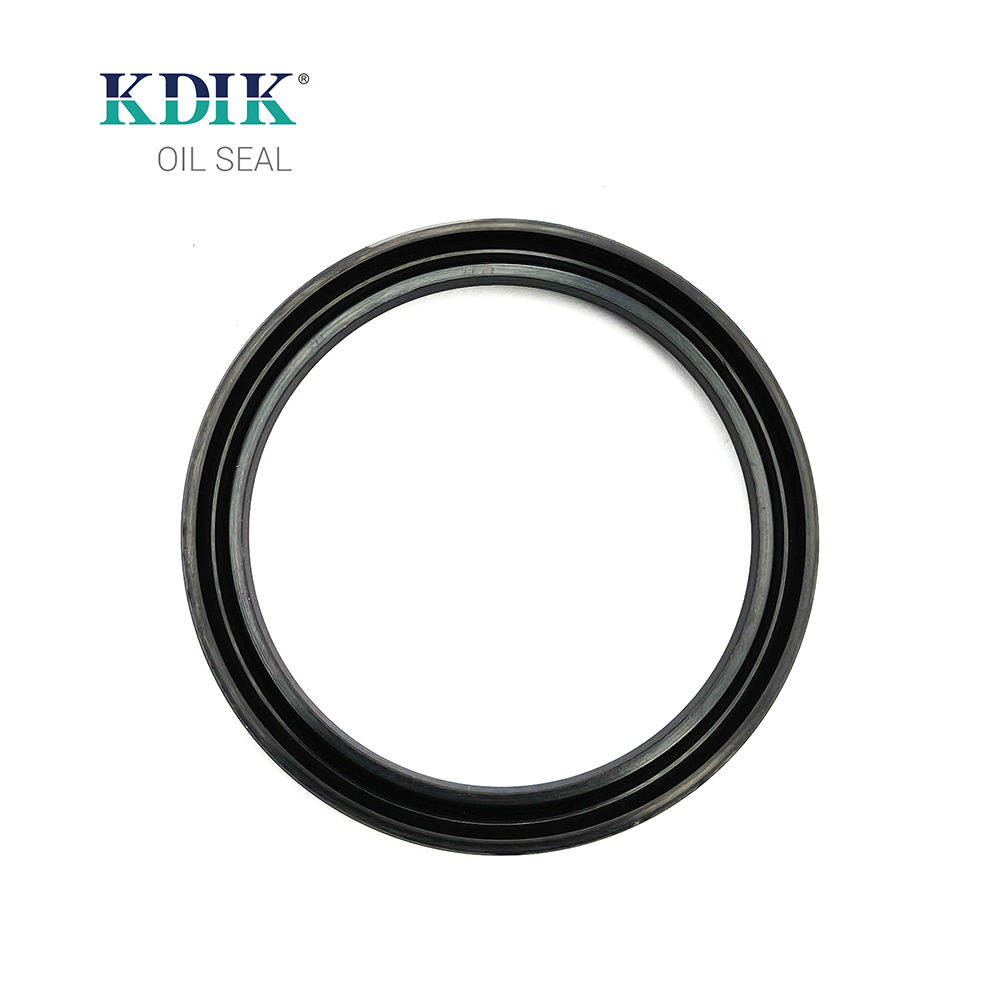

Place of Origin: Hebei, China
Brand Name: KDIK/OEM/ODM
Type:UN
Material: nitrile rubber (NBR)/FKM/PU

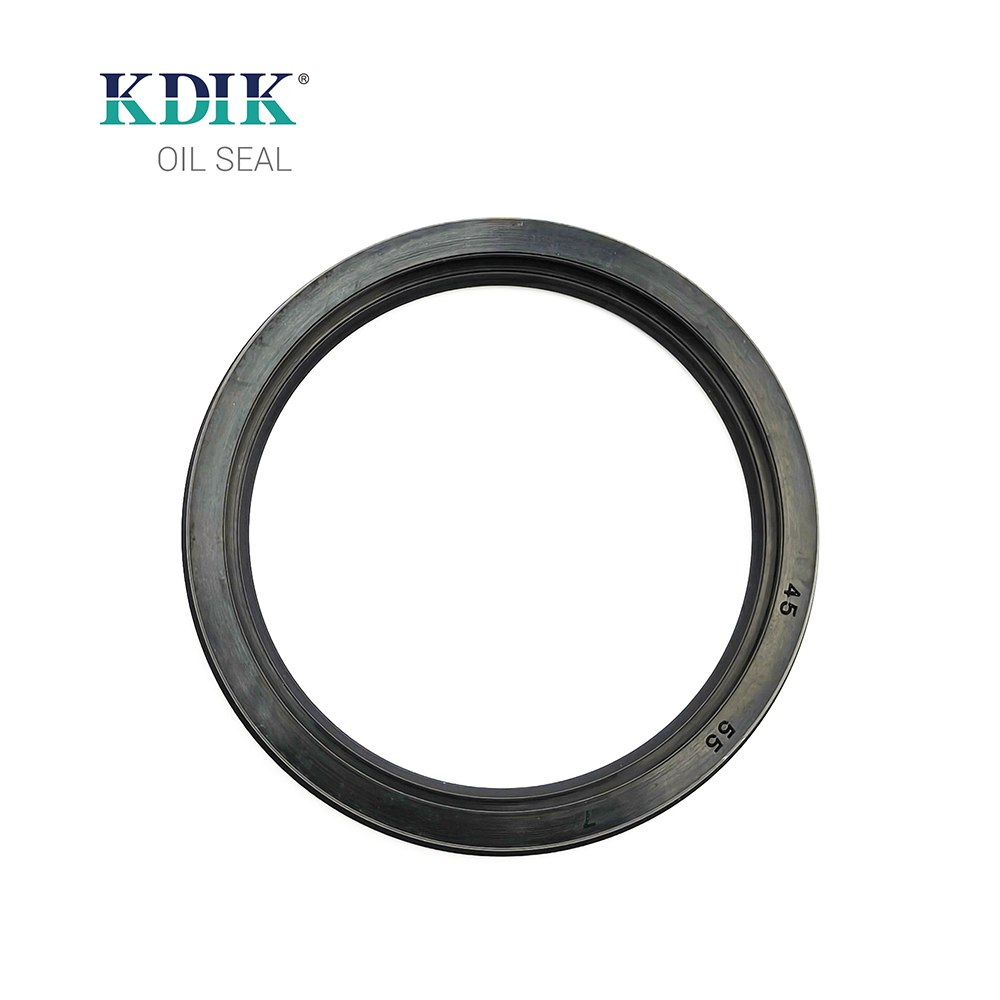

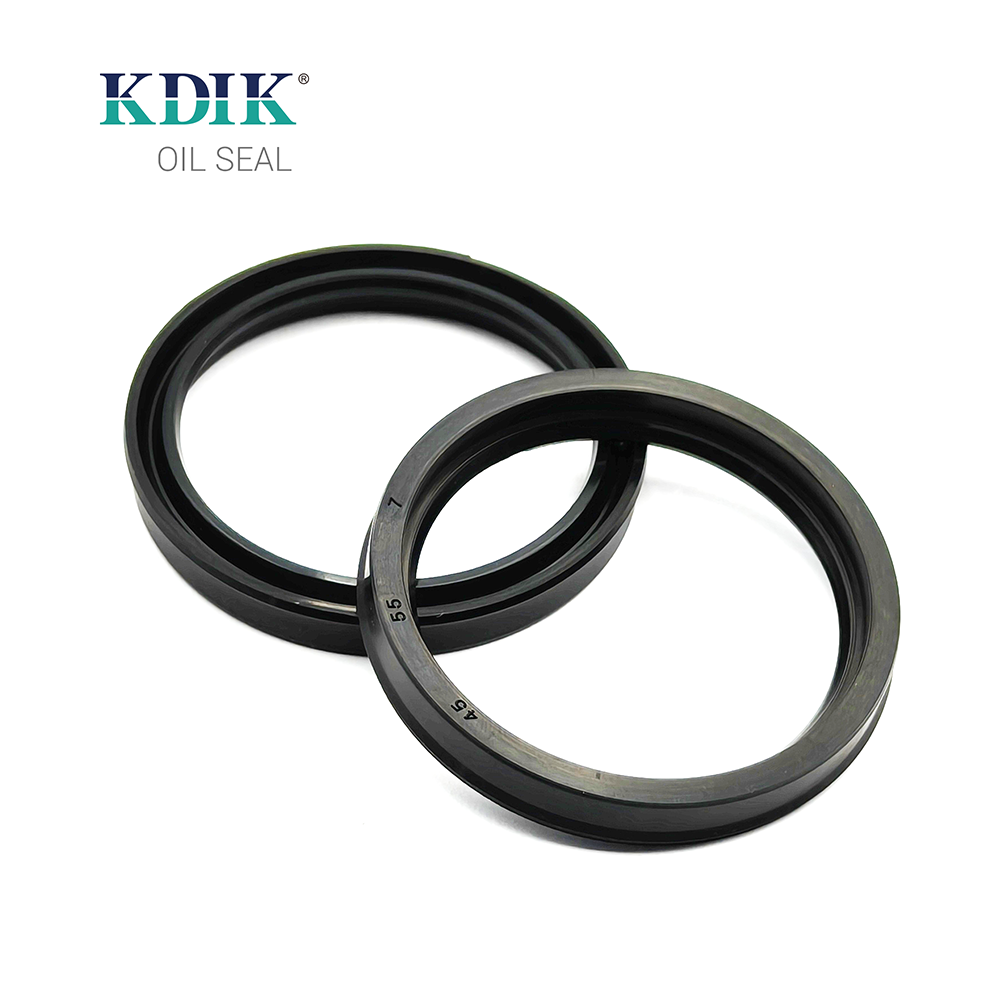

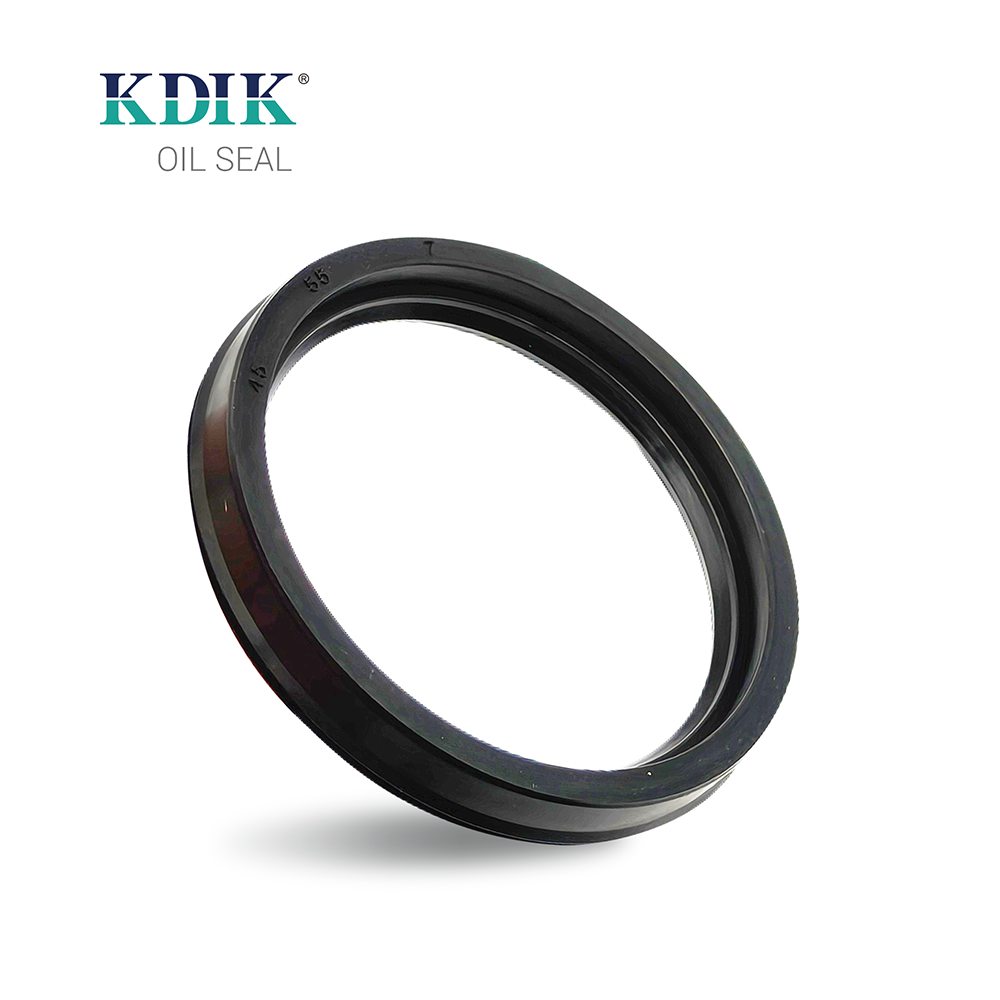

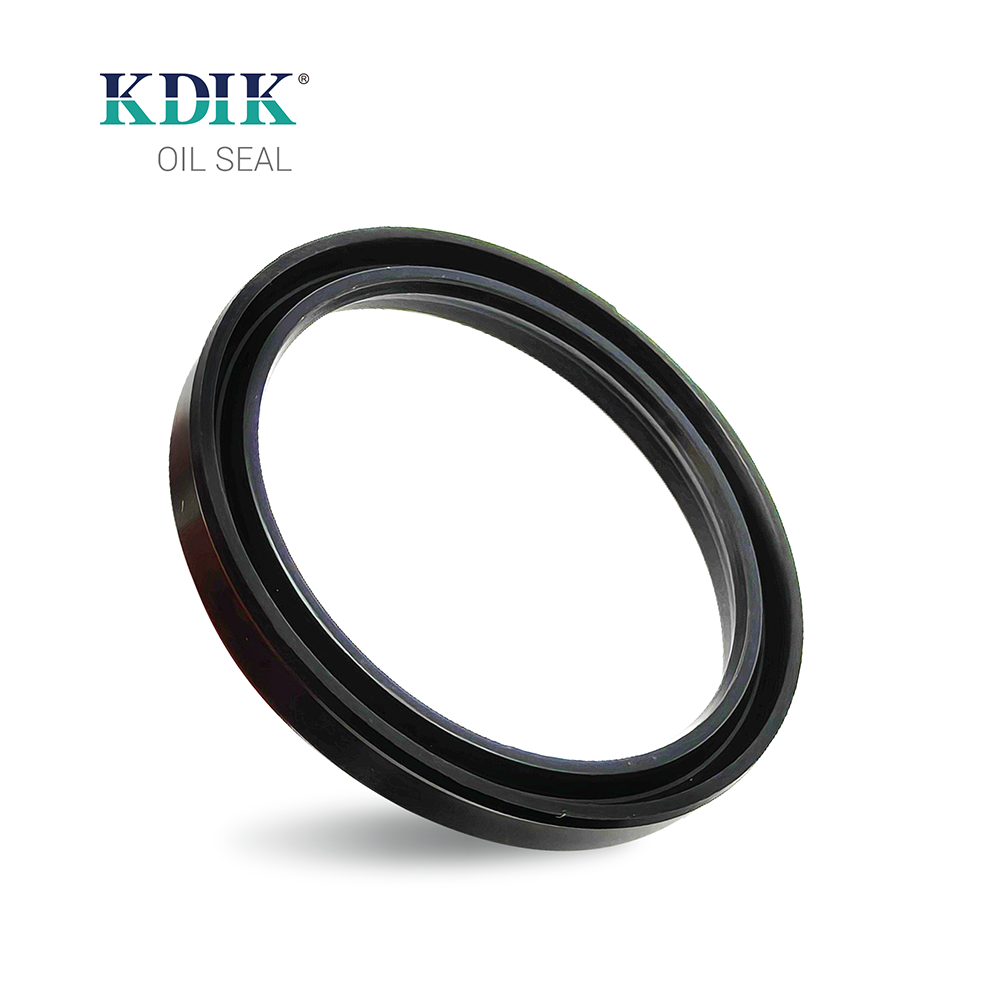

Dimension:45*55*7mm
Weight:6.88G
Suitable for:Industrial machinery,Hydraulic presses
Additional Details
Inner diameter (d)45 mm
Outer diameter (D)55 mm
Seal width (H)7.0 mm
Installation space width (L)8 mm
Radius (R1)0.40 mm
Lead-in chamfer (C)4.50 mm
Product Data Sheet
Product Description:
Piston seals maintain sealing contact between a piston and cylinder bore. The moving piston rod generates high pressure on the piston seal which increases contact forces between the seal and cylinder surface. For this reason, the surface properties of the sealing surfaces are critical to proper seal performance.
TYPICAL APPLICATIONS:
Off-road equipment
Industrial machinery
Hydraulic presses
Automotive applications
Agricultural machinery
Advantage
Wide range of materials including thermoplastic polyurethanes (TPU), polytetrafluoroethylene (PTFE), polyamide (PA) and nitrile rubber (NBR)
Different designs to suit varying operating conditions
Anti-extrusion rings help avoid gap extrusion
Precisely defined surface roughness properties
