Place of Origin: Hebei, China
Brand Name: KDIK/OEM/ODM
OE:12014159B,3428942M1
Material: nitrile rubber (NBR)+PU
Dimension
Inner diameter: 55mm
Outer diameter : 82mm
Height 1: 16.5mm
Suitable for:automotive applications like engines and transmissions, as well as industrial machinery such as gearboxes, pumps, and electric motors.
Additional Details
Feature: Factory/Manufacturer direct sale
TYpe: MC TC TB SB SC TA TG TCN TCV COMBI CASSETTE
MOQ: 100pcs
Sample: Freely supplied
Product Data Sheet
Product Description:

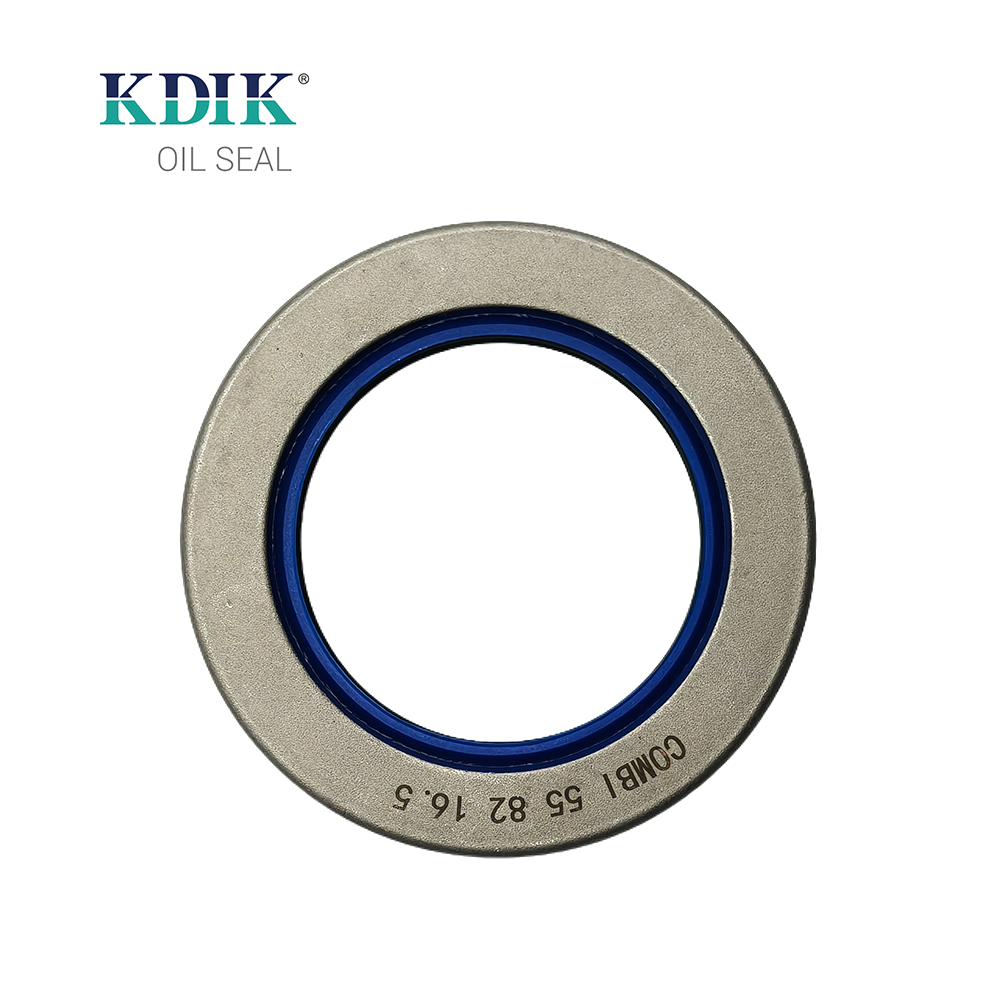

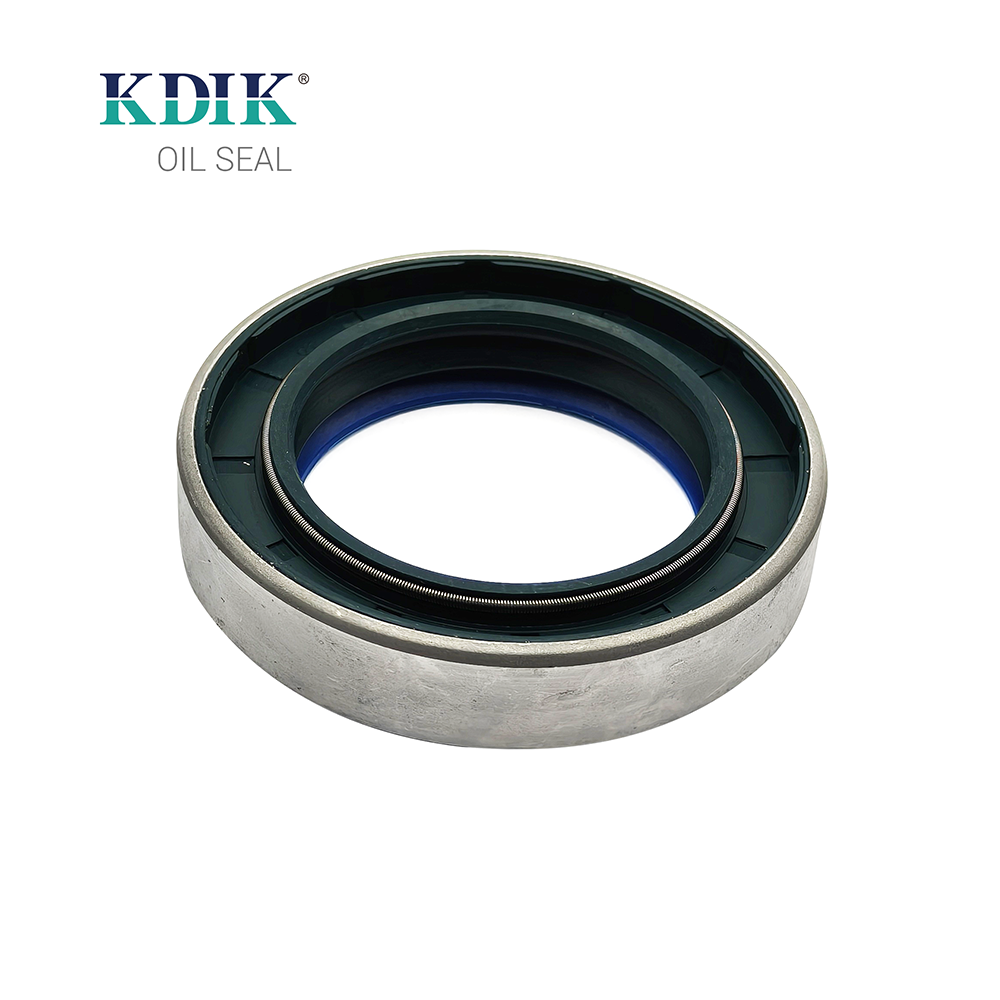

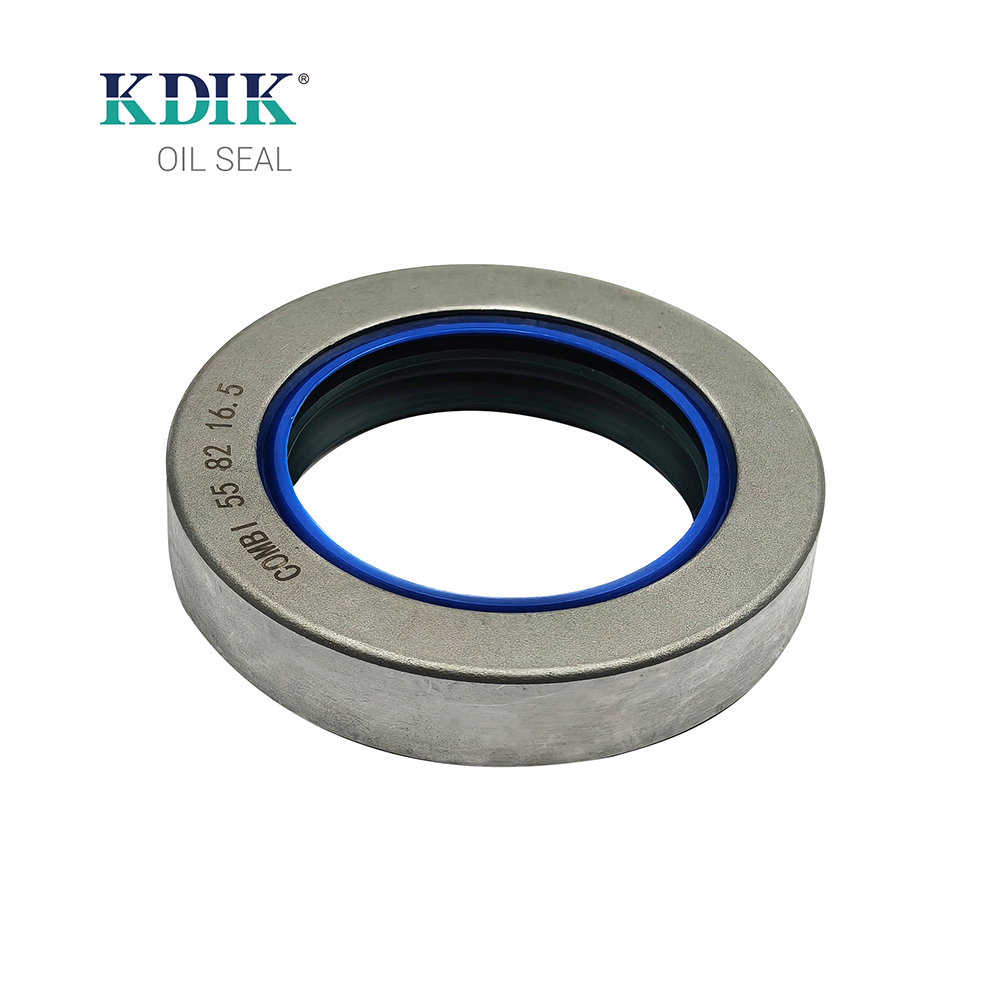

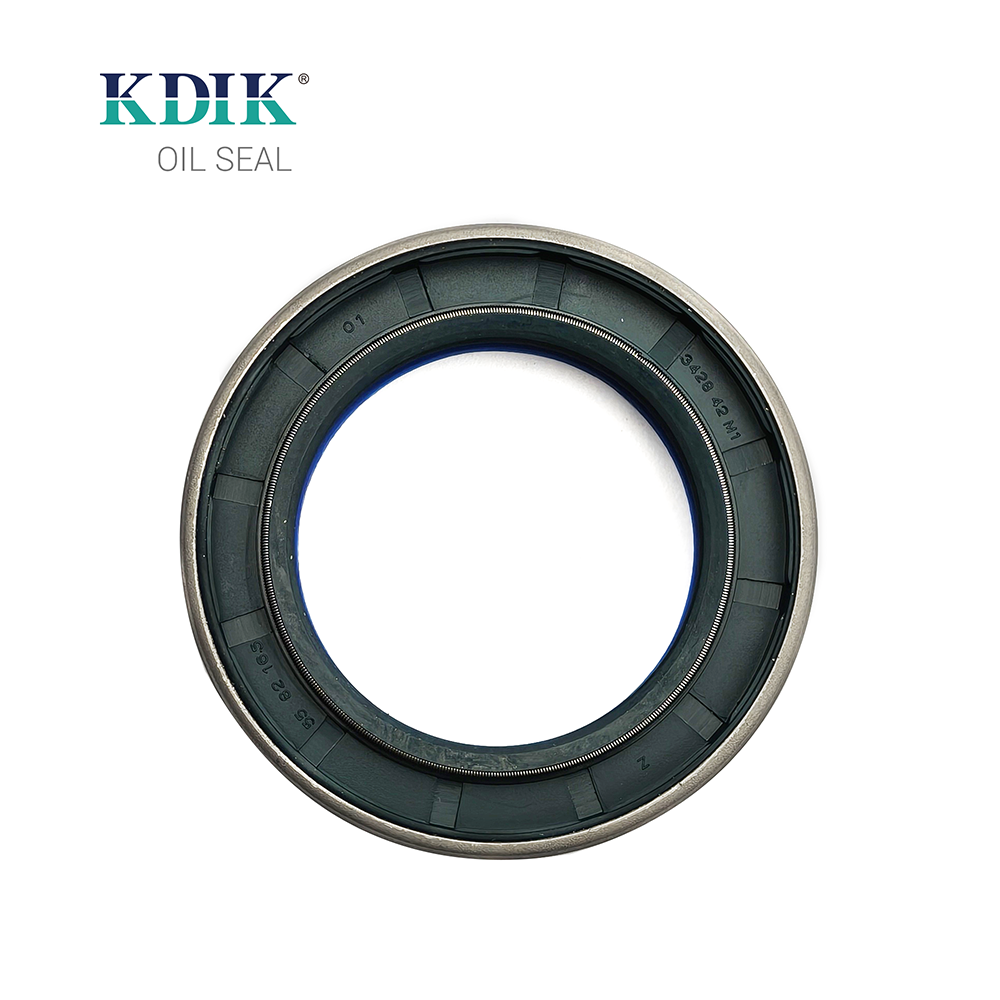

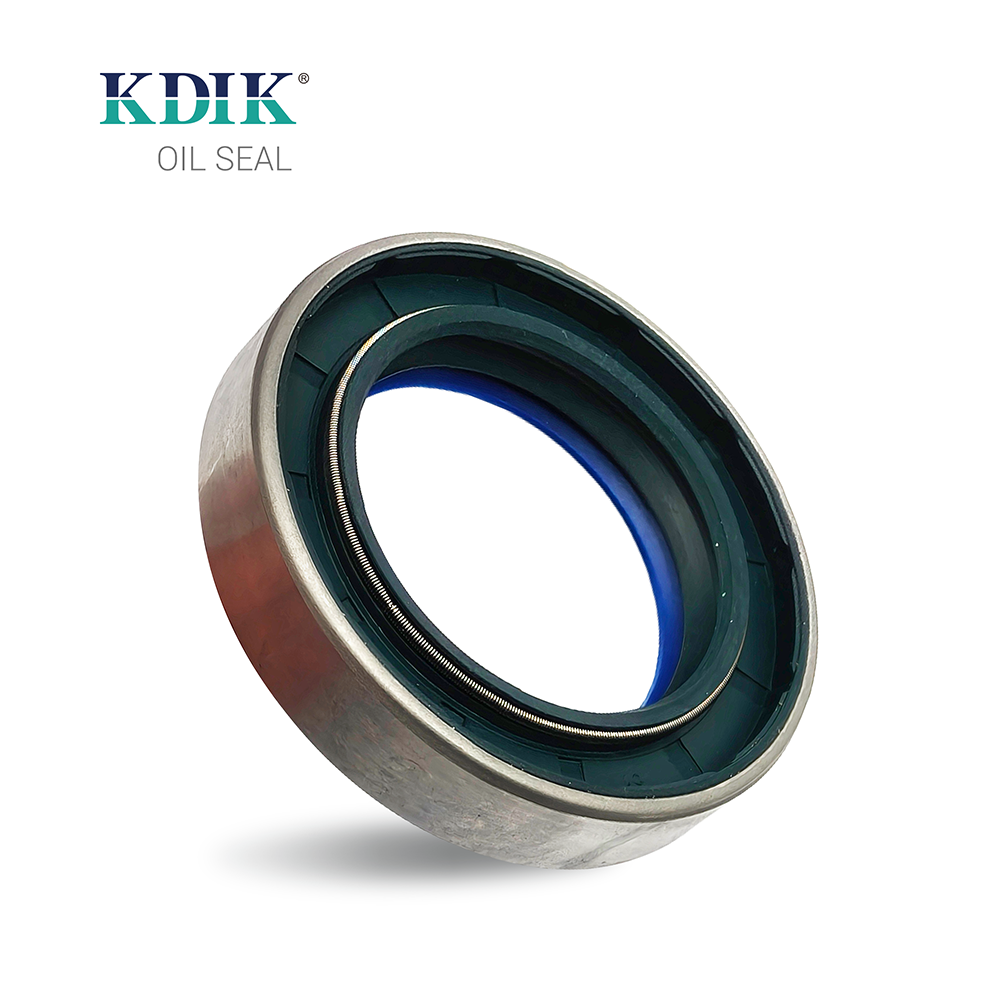

COMBI SF6 Composite Oil Seal 1604001
Nominal size: ID 55 mm * OD 82 mm * Width 16.5 mm
Material: NBR+PU/AU
Components
Metal insert: Unalloyed steel DIN 1624 - EN10139
Spring: Spring steel 17223
Dirt wiper: Polyurethane(AU)
Color: Black
Hardness: 75 Shore A
Operating conditions
T: ≤+80℃
V: ≤4 m/s
P: ≤0.05 MPa
(For material definitions, it must be taken into account that it is possible that not all extreme conditions will occur simultaneously.)
Fits LANDINI 3428942M1
Composite oil seals for drive axles, gearboxes, transmissions, differentials and wheel seals for tractors, planters, combines, loaders and other agricultural machinery.
The function is to protect the grease from leakage and to prevent the entry of contaminants and sludge.
Advantage
KDIK oil seals are reliable and durable, helping to reduce equipment maintenance and disassembly work.
Long service life
Additional dust lip
Spring-loaded sealing lip
Use preferably instead of the CORTECO Cassette Seal in case of superimposed rotational and translation movements
Combination of a oil seal and an additional seal against dirt from the outside in one housing.
High resistance to dirt from the outside.
Suitable for protection against sludge. Primarily for usage in all applications with high level of soiling, e.g., in axles for off-road vehicles
