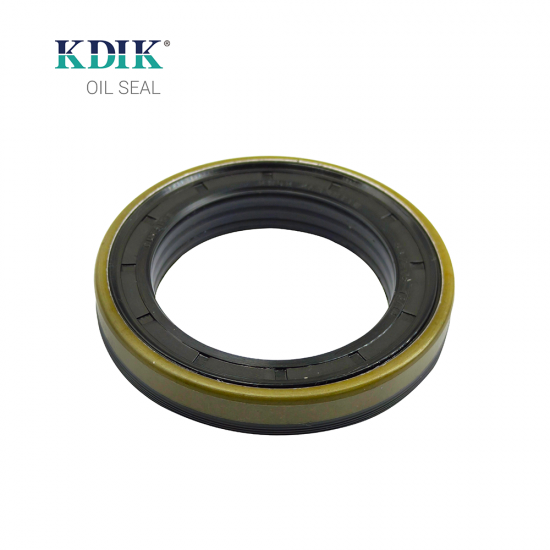

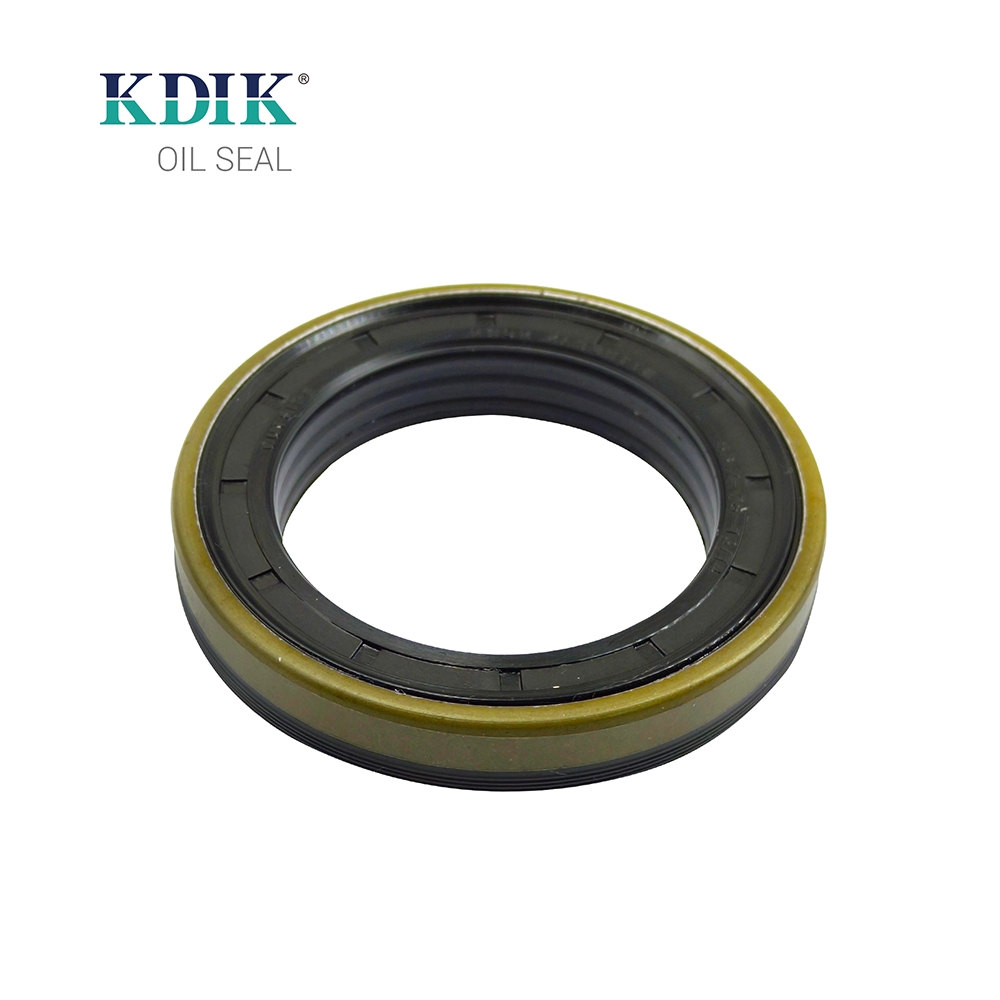

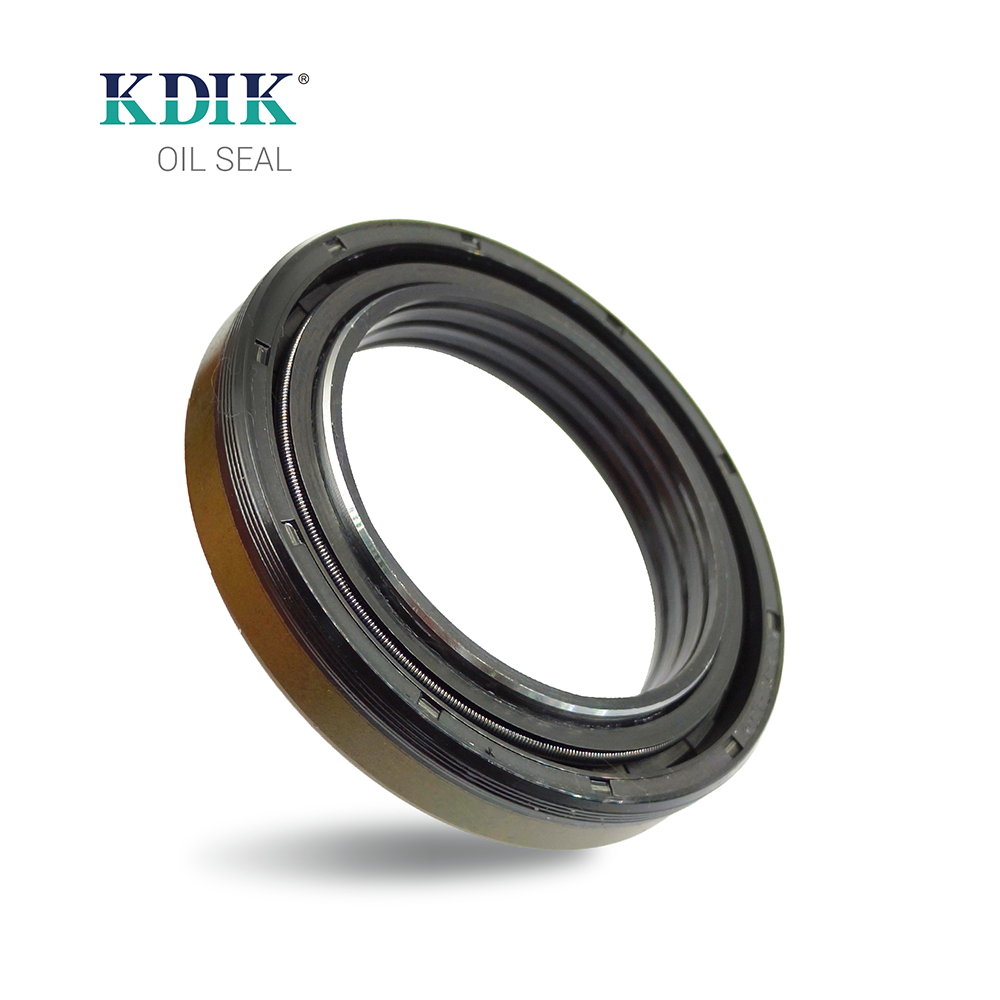

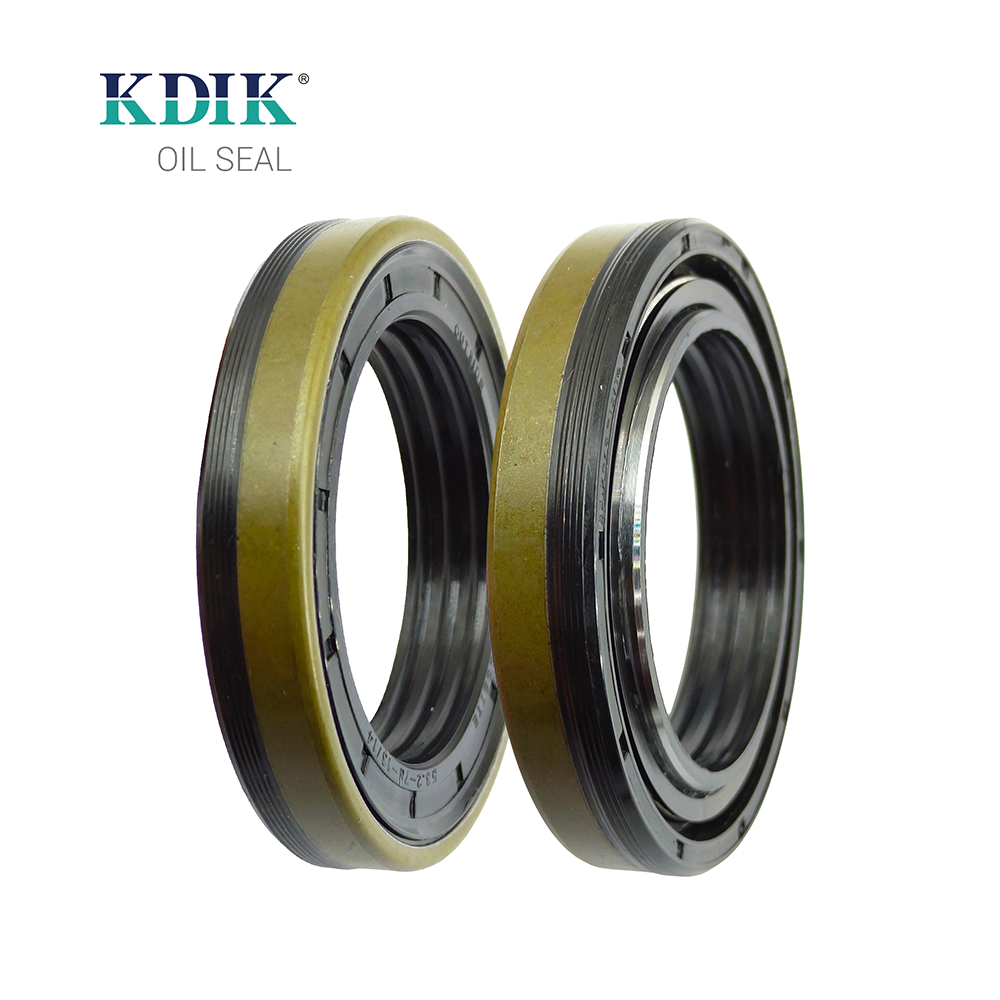

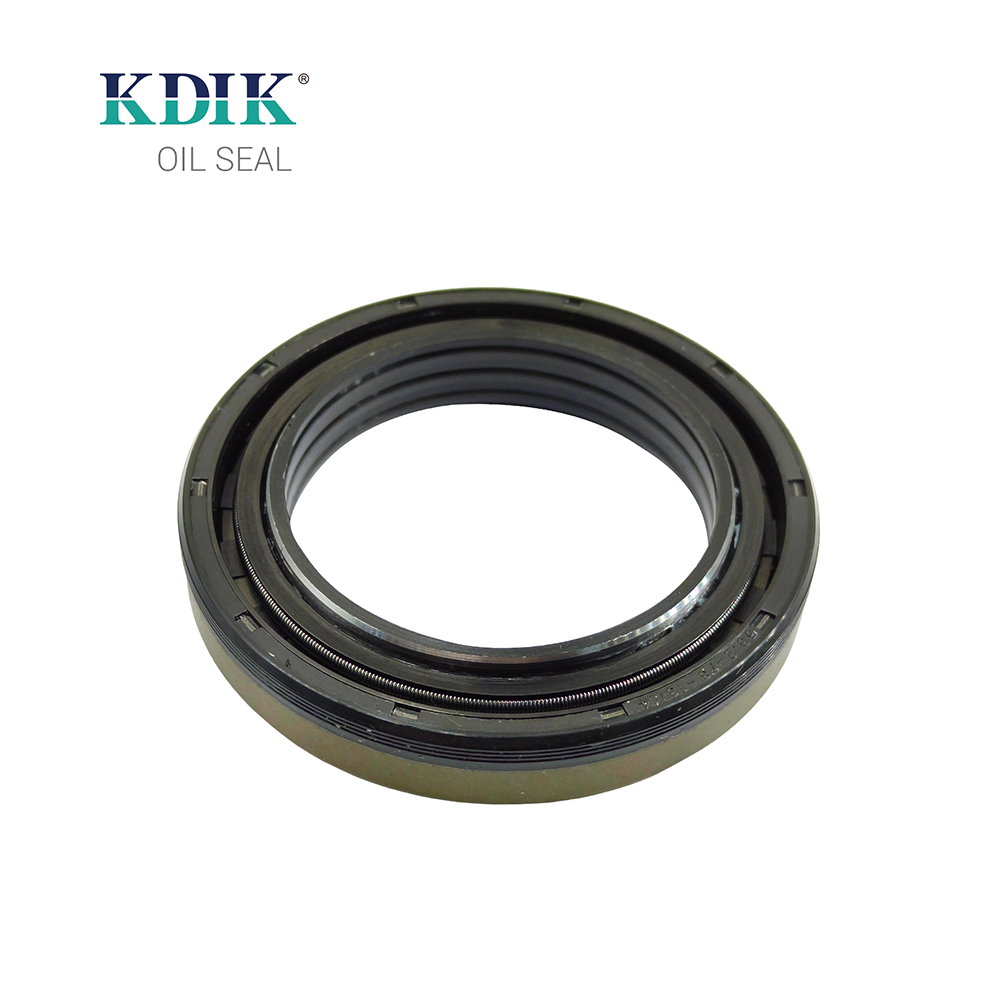

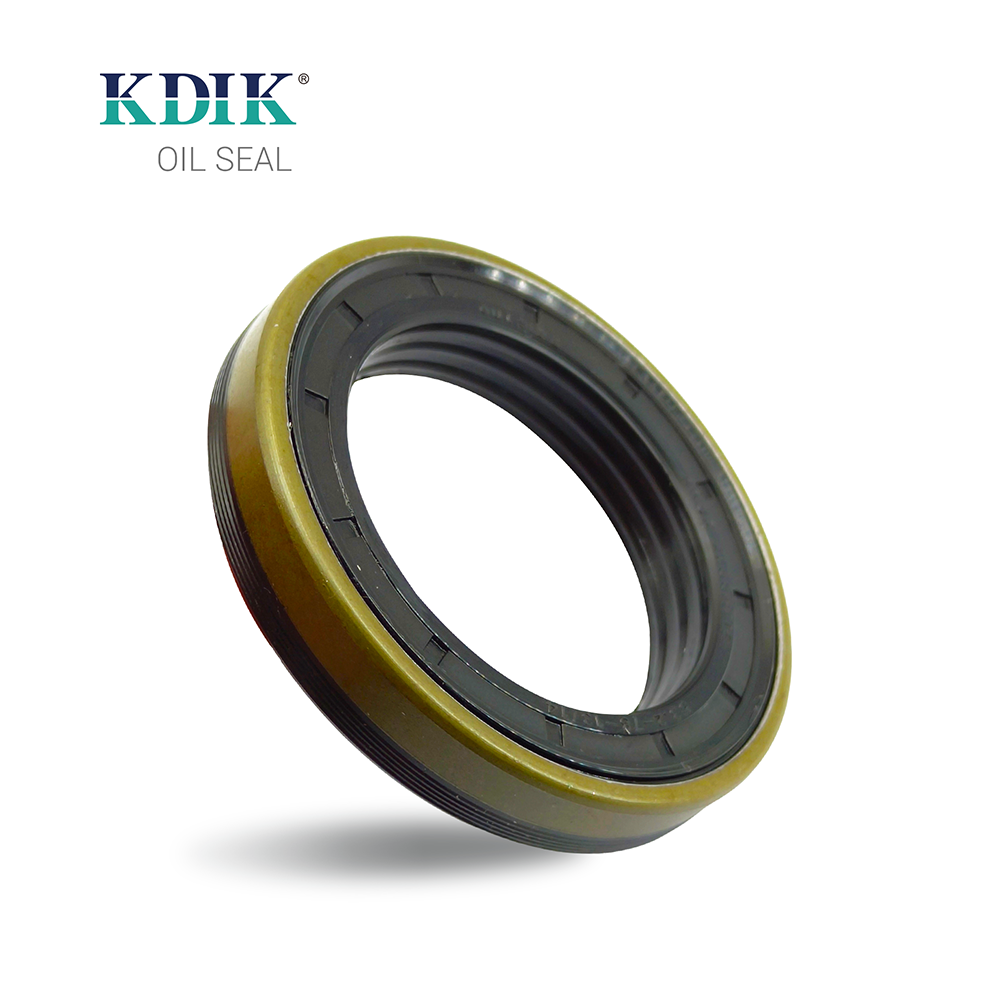

RWDR-CASSETTE NBR Oil Seal 53.2x78x13/14

Place of Origin: Hebei, China

Brand Name: KDIK/OEM/ODM

Material: nitrile rubber (NBR).

Type:RWDR CASSETTE-3

Dimension

Inner diameter: 53.2mm

Outer diameter : 78mm

Height 1: 13/14mm

Suitable for: KUBOTA,CARRARO,CASE IH,DANA,CLAAS,MASSEY FERGUSON,NEWHOLLAND,DEUTZ-FAHR,FENDT,JCB,JOHN DEERE

Additional Details

Feature: Factory/Manufacturer direct sale

TYpe: MC TC TB SB SC TA TG TCN TCV COMBI CASSETTE

MOQ: 100pcs

Sample: Freely supplied

Inquire Now Next Product

Product Data Sheet

Product Description:

Oil Seal

Size: 53.2*78*13/14 mm

Type: RWDR CASSETTE-3

Meatrial: NBR

OEM:12018678B/1504002 ; CATERPILLAR 1197045

CROSS REFERENCE1197045,04415094,F510300020430,AL79951,0734309321/0734309419/0750110153/073431966

Application: Used on crankshaft, camshaft, wheel hub of off-road vehicles, construction machinery, especially agricultural machinery, such as Tractors, Harvesters, harrows, Combines etc.

Brands: CARRARO, CASE IH, DANA,CLAAS, MASSEY FERGUSON, NEWHOLLAND, DEUTZ-FAHR, FENDT, JCB, JOHN DEERE, KUBOTA, ZF, LANDINI, CATERPILLAR, LAMBORGHINI, LIEBHERR, MAN, MC CORMICK, M BEZN, MERLO, , NISSAN, RENAULT, SAME, SCANNIA, VALTRA, ZETOR, etc.

Advantage

It consists of a Simmerring and optimized wear sleeve(either hard or soft untized).

They are used to seal shafts in heavy construction and agricultural equipment that , for example, are exposed to high stresses.

They also effectively protect engines, transmissions,differentials and axles against dirt,water and other enviromentaal influences.

The latest developments in elastomers also make it possible to achieve optimal sealing without a spring. this reduces friction even at high temperatures.

A robust axle hub seal with multiplepoint exclusionary labyrinth built into a single housing, this seal is the ultimate at keeping the elements out and oil in while minimizing friction.

The unique design provides outstanding contaminant exclusion at optimized surface speeds.

Please contact us to know more about product catalog & technical details:laiya@china-oilseals.com
