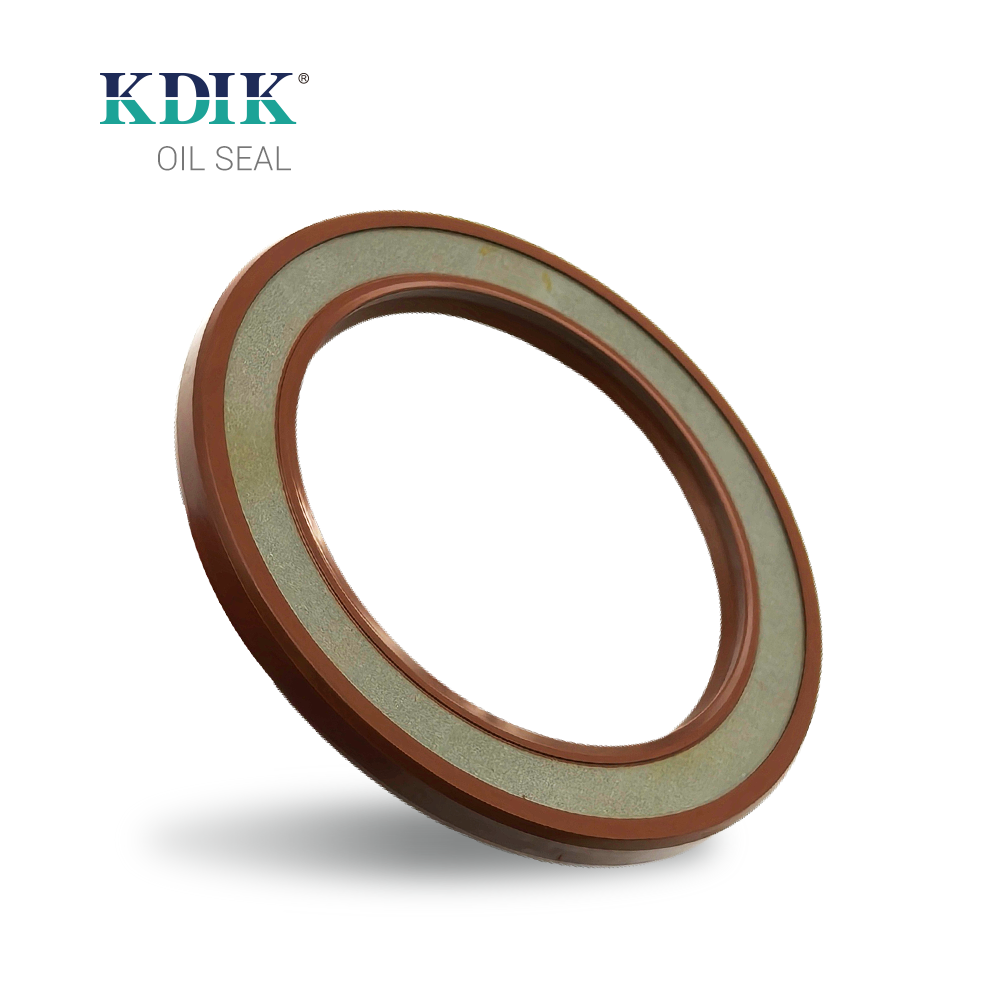

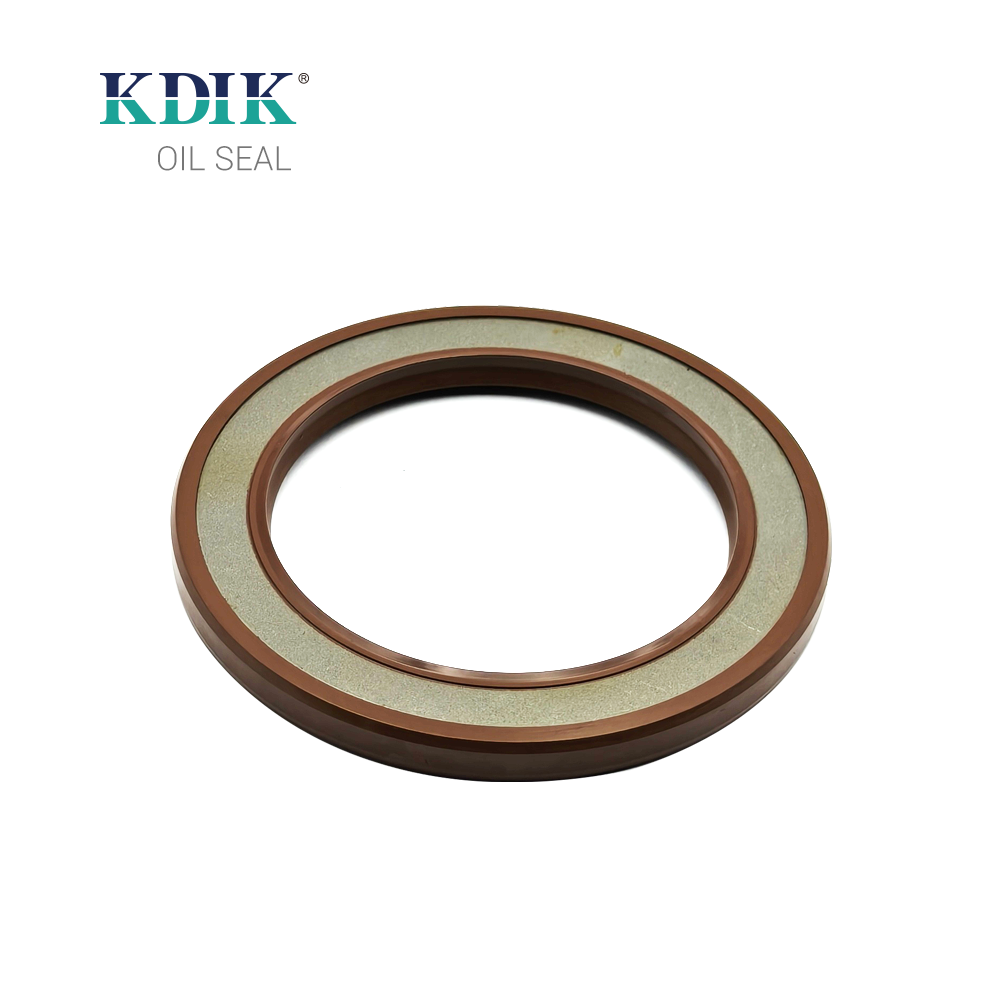

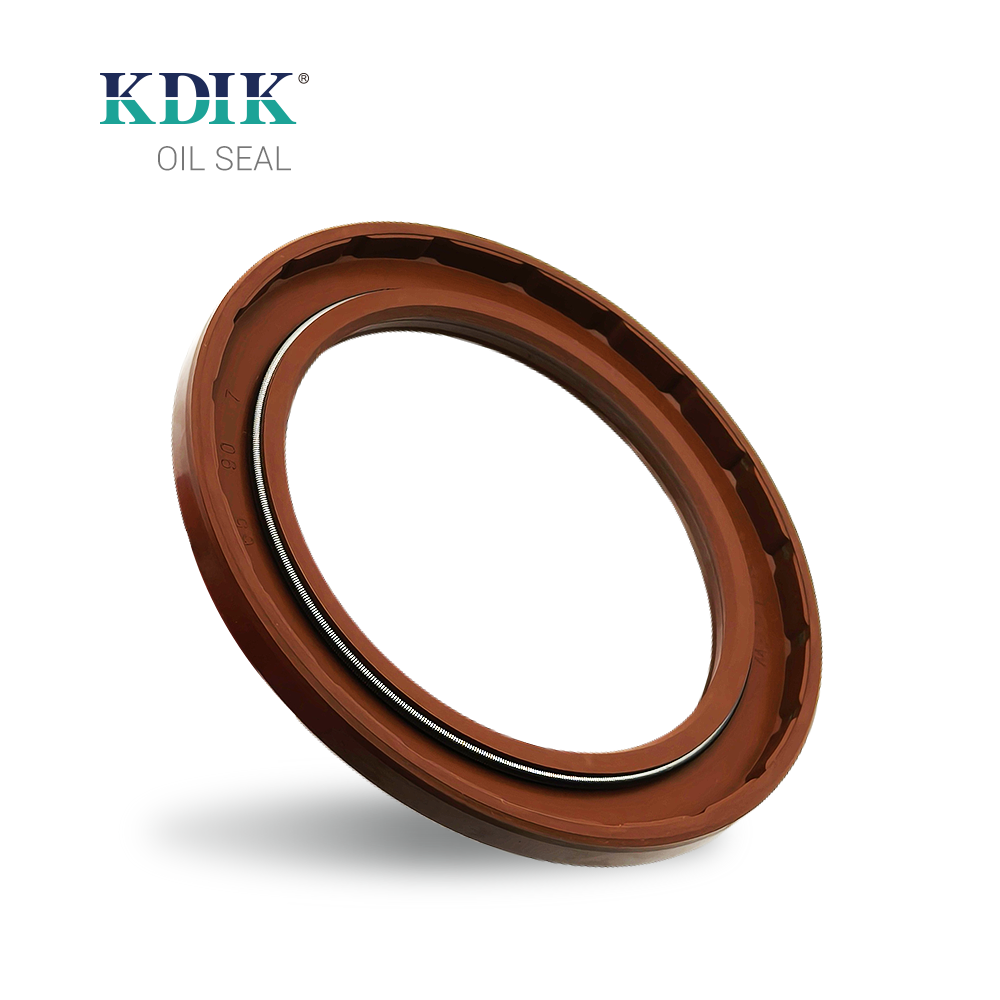

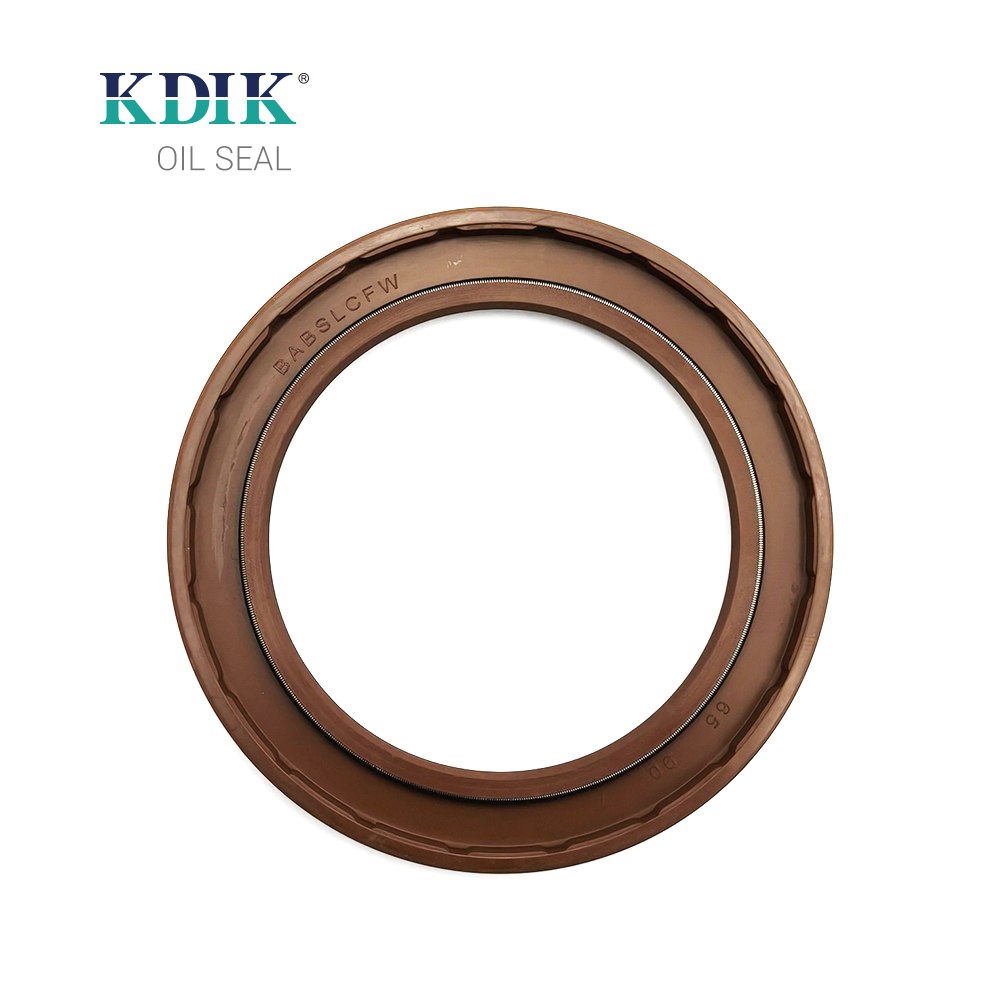

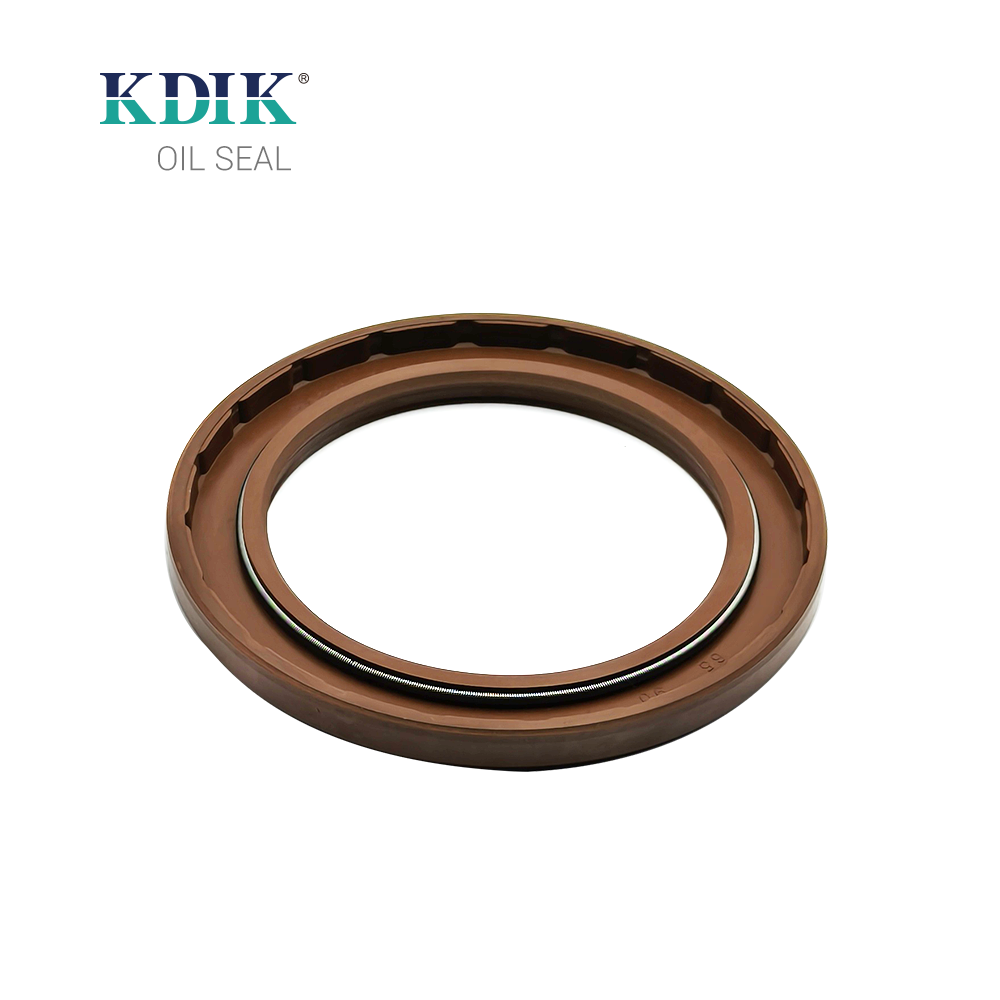

Place of Origin: Hebei, China
Brand Name: KDIK/OEM/ODM
Type:TCV
Material: nitrile rubber (NBR)/FKM
Color:brown
Dimension:
Inner diameter: 65mm
Outer diameter : 90mm
Height 1: 7mm
Used for hydraulic pumps, motors, engines.
Additional Details
Feature: Factory/Manufacturer direct sale
TYpe: MC TC TB SB SC TA TG TCN TCV COMBI CASSETTE
MOQ: 100pcs
Sample: Freely supplied
Product Data Sheet
Product Description:
The "65x90x7" refers to the dimensions of the seal: 65mm inner diameter, 90mm outer diameter, and 7mm width. TCV stands for "Two-Lip Vibration"
Dimensions: 65mm (inner diameter) x 90mm (outer diameter) x 7mm (width).
Material: NBR (nitrile rubber)/FKM(Viton)
Pressure rating: Designed to handle high pressures, up to $3$MPa.
Function: A TCV seal has a primary lip to retain fluid and a secondary dust lip to keep out dirt, notes nqksf.
Application
Hydraulic systems: Used in hydraulic pumps, motors, and hydrodynamic couplings where high pressure is involved.
Engine and transmission: Can be installed in engines and transmissions to prevent oil leakage.
Rear axles: Used in the rear axle of machinery.
General mechanical sealing: The dual-lip design (primary and secondary) makes it a good choice for systems where both fluid retention and contaminant protection are needed.
Package
Related Products
All the performance indicators meet the industry standards. Some of the product indicators are superior to those ...
Our main product lines include: Automobile oil seal, Agricultural & Construction machinery oil seal, Wheel hub oil seals for tractors, Valve Stem Seals, Precision Rubber Parts, O-rings
